Autocad Blocks Collection | Interior Design & Architecture Package
Hello designers & creative people!
My name is Jay and I am a senior draftsman based in Los Angeles.
I have been working with Autocad for almost 10 years now and I have extensive experience in interior design & residential architecture projects.
I created this package of over +200 Autocad blocks with busy professionals in mind.
It's always frustrating to spend time creating blocks for the different elements of a project, not mention researching the standard sizes and finding what works in your design.
The solution is here! Use this collection to cut on production time and really focus on what you really like: DESIGN!
This package is made in inches & feet.
In this package, you will get :
ANNOTATIONS (See photos below)
- Standard Text Styles
- Standard Dimension Styles
- Standard Leaders Styles
- North arrow symbol

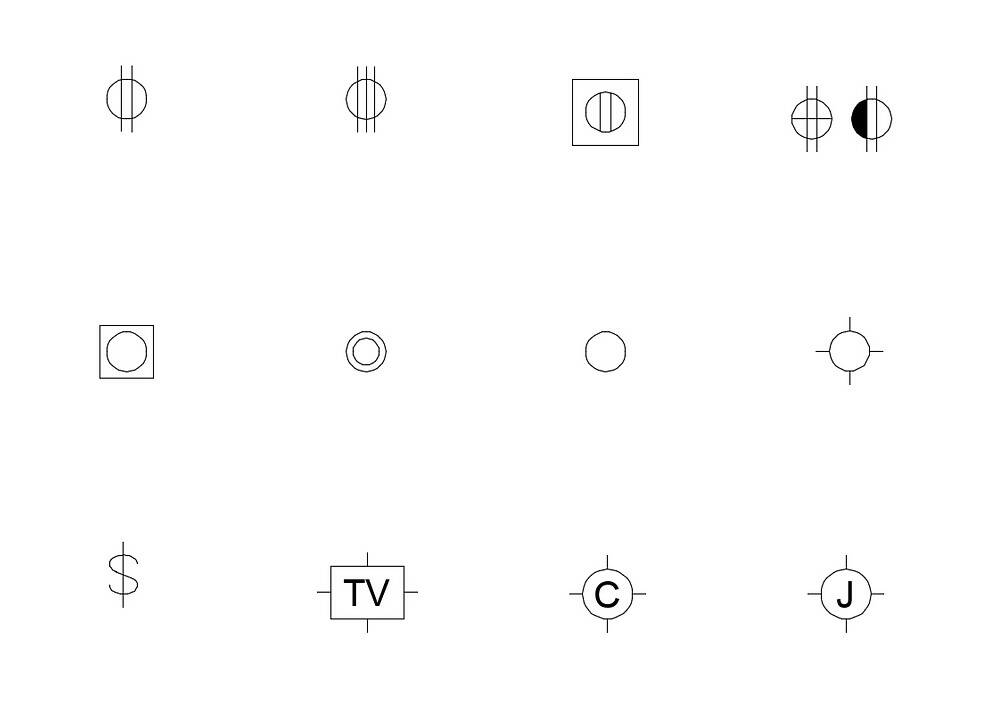

- Electrical symbols
TITLEBLOCKS:
- Size B: 11 x 17
- Size D: 36 x 24
- Size E1: 42 x 30
- Size E: 48 x 36

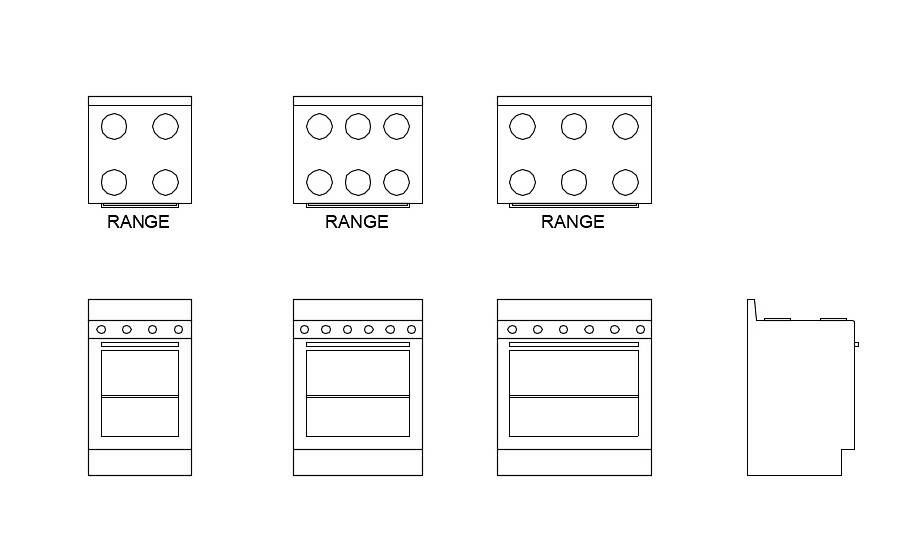

- Range

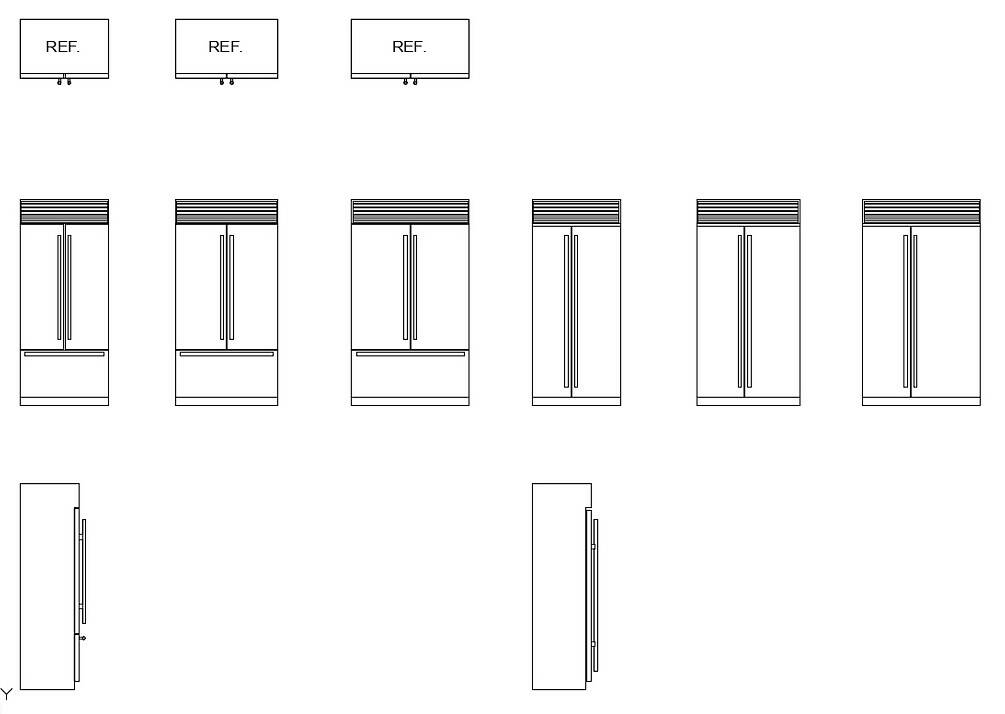

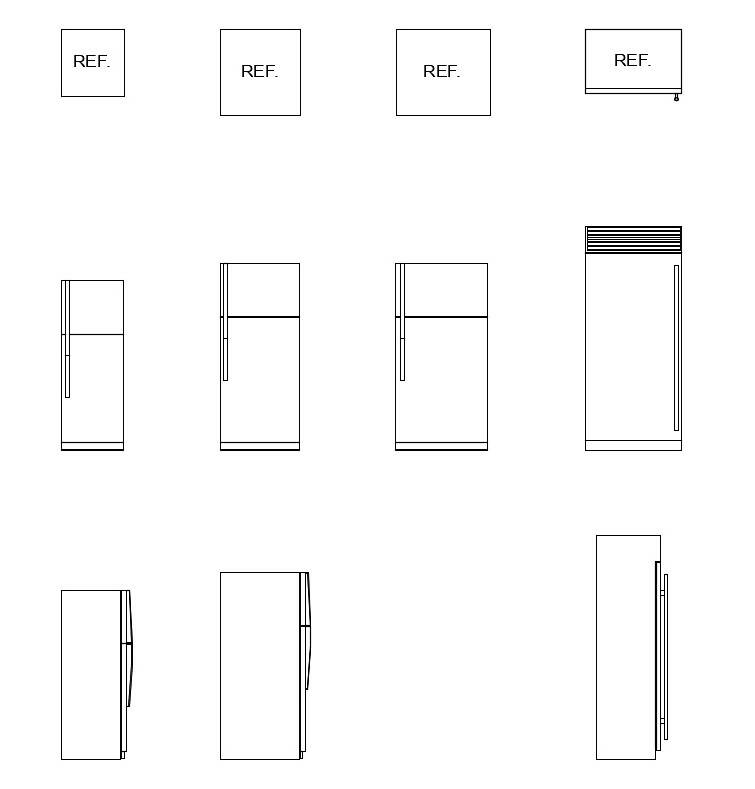

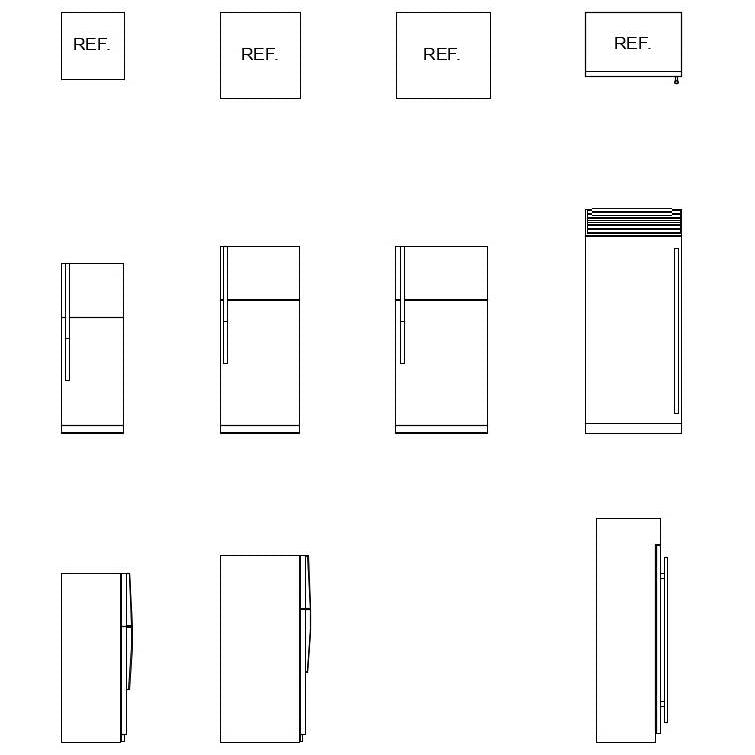

- Refrigerator

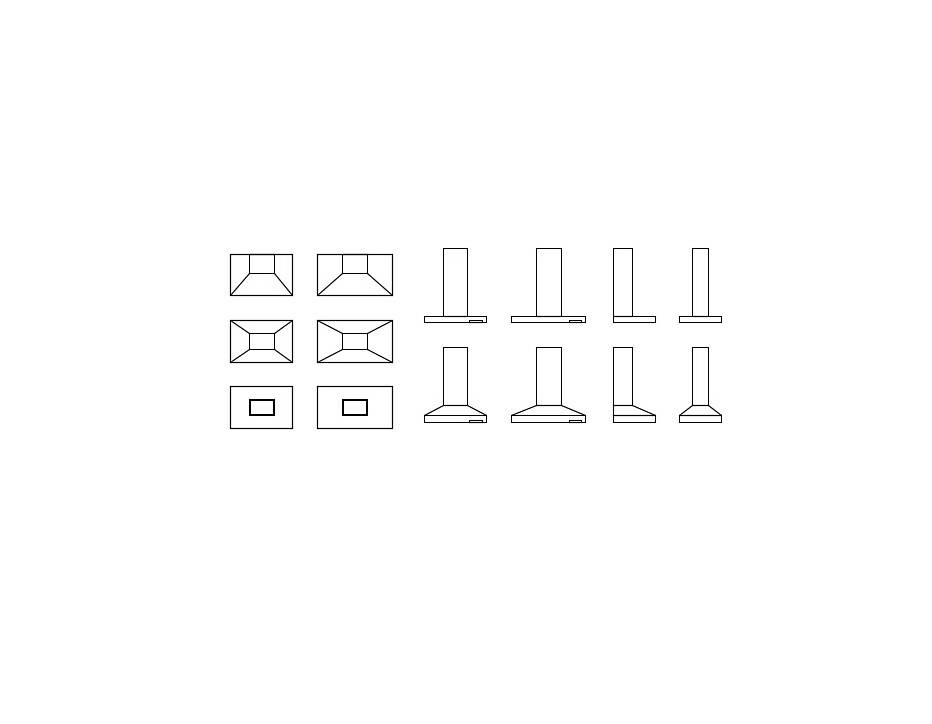

- Hood
- Dishwasher

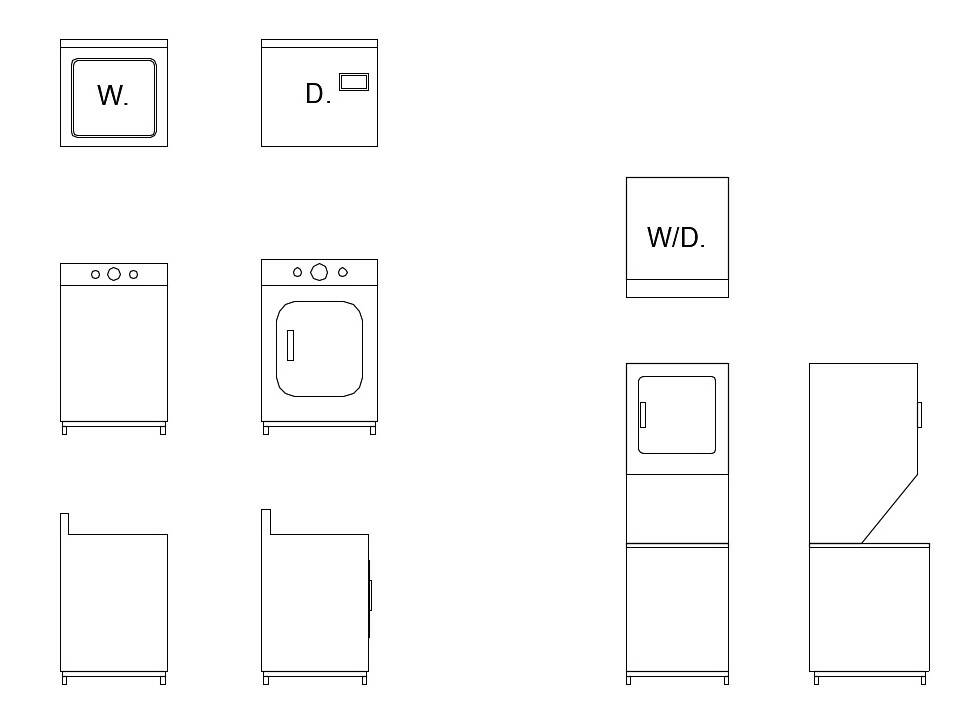

- Washer/dryer
FIXTURES:

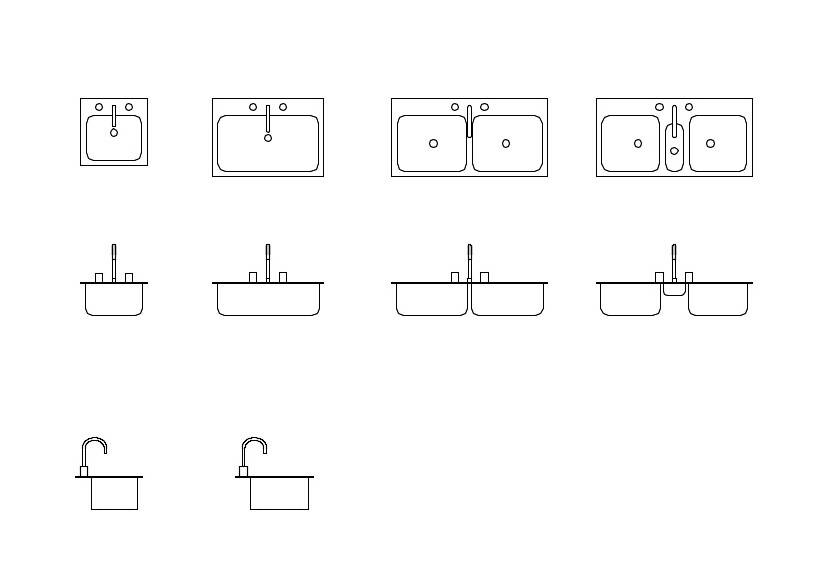

- Sinks
- Bathtub
- Shower base
DOORS & WINDOWS:
- Windows elevations
- Garage doors elevations
- Doors elevations
- Chairs
- Tables
- Standard beds (plans + elevations)
- Pillows
- TVs (plans + elevations)
