Architecture concept diagrams are best learned by example, not by abstract principles. The diagram strategies that work in real projects appear repeatedly in published architecture, and studying them across different projects reveals patterns that transfer to your own work. This piece walks through 25 diagram strategies used by contemporary practice, organized by what each one communicates and what makes it effective.

The goal is not to copy these diagrams but to understand the move behind each one. The same strategy applied to a different project produces different results, but the underlying logic of reducing a project to its essential move stays the same across projects. Studying multiple variations across many projects builds the visual vocabulary you need to make your own diagrams readable.

How to study diagrams productively

Looking at diagrams without analysis produces little learning. The productive habit is to ask three questions about every diagram you study. First, what is this diagram trying to communicate? The answer should be expressible in one sentence. Second, what visual choices made the communication clear? Line weight, color, sequence, scale, abstraction level all play roles. Third, what would have made the diagram less effective? Imagining the failure case sharpens understanding of what works.

Architecture publications like ArchDaily and Dezeen publish project pages with diagram sets that show how recognized practices handle communication. Studying five to ten projects deeply produces more insight than skimming a hundred superficially.

Strategy 1: the silhouette transformation

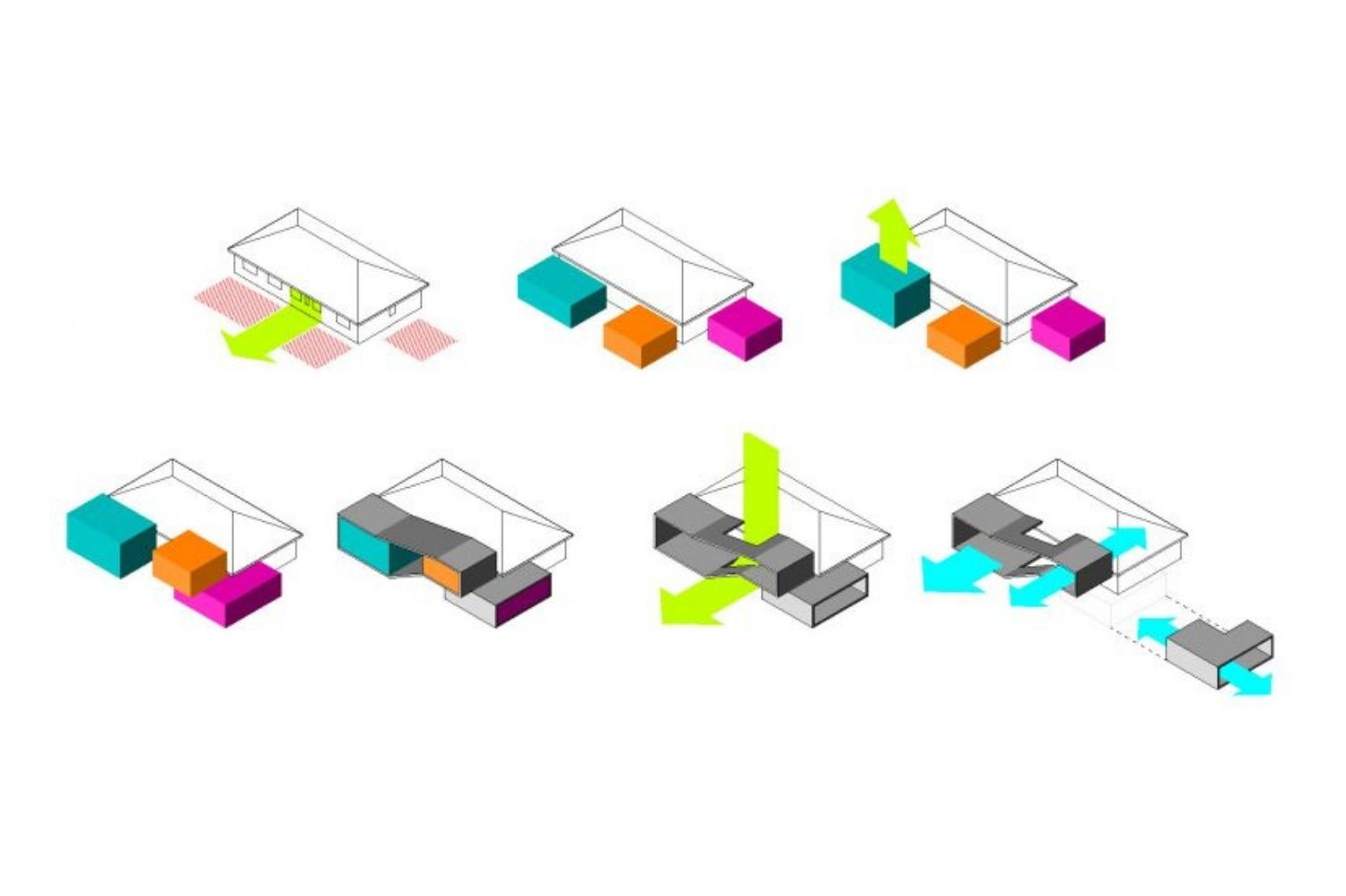

The silhouette transformation diagram shows how a starting form (usually the building envelope or site condition) becomes the final form through a sequence of moves. Three to five small diagrams in sequence, each a slight modification of the previous, communicate the entire design logic without text.

This works because the eye reads the sequence as a transformation rather than as separate states. The viewer follows the change naturally and understands the design move as a process rather than as a finished result.

Strategy 2: the courtyard pull

For projects organized around a central void (courtyard, atrium, plaza), the diagram shows the void being pulled out of an initial mass. The starting state is a solid block; the final state is the same block with a hole. The contrast between solid and void becomes immediately legible.

Many residential and institutional projects use this strategy because it explains a complex three-dimensional relationship through a simple diagrammatic move.

Strategy 3: the slope response

Projects on sloped sites often show the building responding to topography through a sequence: site slope, first cut into the slope, building inserted, building extended above grade. The sequence makes a complex section comprehensible by separating it into its decision points.

Strategy 4: program stacking

For multi-story buildings with distinct programmatic floors, an exploded vertical diagram shows each floor's primary use. Public floors at the bottom, private floors above, service floors at the top. The vertical organization becomes legible without needing to read individual floor plans.

Strategy 5: the bar across the slope

A linear building running across a slope produces a section condition that the diagram emphasizes. The bar form combined with the slope creates moments of cantilever, ground engagement, and view orientation that the diagram makes explicit.

Strategy 6: the rotated grid

For projects where the building's grid rotates from the surrounding context (often to address solar orientation, view, or site geometry), the diagram shows the original grid, the desired direction of orientation, and the rotation angle. This single diagram explains a decision that affects every floor plan.

Strategy	Best For	Visual Move
Silhouette transformation	Form-driven projects	Sequence of small modifications
Courtyard pull	Void-organized projects	Solid becomes solid + void
Slope response	Topographic sites	Section sequence with terrain
Program stacking	Multi-floor mixed use	Exploded vertical organization
Bar across slope	Linear buildings on terrain	Section showing engagement
Rotated grid	Orientation-driven projects	Two grids overlaid with angle
Public-private gradient	Programs with privacy logic	Color or tone gradient across plan
Solar orientation	Energy-conscious design	Sun path arrows on site

Strategy 7: the public-private gradient

Plans often organize spaces along a public-to-private gradient. The diagram represents this with a color or tone gradient running across the plan, from darker public spaces at one end to lighter private spaces at the other. The gradient communicates the organizational principle without needing to label each room.

Strategy 8: solar orientation

Site diagrams showing sun path with arrows indicating winter and summer angles, combined with the building's response (overhangs, orientation, fenestration choices), explain environmental decisions clearly. The diagram makes the design's environmental logic explicit.

Strategy 9: view framing

For projects organized around specific views, the diagram shows the view targets (mountains, city skyline, water) and the building's response. Sight lines from building to view targets, combined with window placement that captures these views, communicates the experiential design logic.

Strategy 10: pedestrian flow

Public buildings often diagram pedestrian movement through the site and building. Arrows of varying weight indicate flow volume; pause points indicate gathering spaces; transitions indicate threshold conditions. The movement diagram explains how the building works as a public space.

Strategy 11: the structural grid

For projects where structural logic drives the design, the diagram shows the structural grid as a separate layer above or below the architecture. The grid spacing, column locations, and span conditions become explicit and the relationship to plan organization is clear.

Strategy 12: the layered envelope

For buildings with multiple envelope layers (structure, primary skin, secondary skin, brise-soleil), an exploded section diagram pulls each layer apart vertically. The relationship between layers becomes legible and the buildup logic explicit.

Strategy 13: the unit aggregation

For housing projects, schools, or repetitive programs, the diagram shows a single unit, then aggregations of units, then the full building. The progression from one to many explains how the building scales from unit logic to whole-building organization.

Strategy 14: the inversion

Projects that intentionally invert expected relationships (services on the exterior, interiors as exterior, ground at the top) often show this inversion explicitly through diagrams that compare expected versus designed conditions side by side. The diagram makes the conceptual move legible.

Strategy 15: the ground continuation

Buildings designed to extend the landscape (continuous ground from outside to inside, ground plane that becomes building plane) use diagrams showing this continuity through section. The diagram emphasizes the continuous surface that becomes the project's primary spatial idea.

Strategy 16: the lifted building

Projects that lift the building off the ground (Le Corbusier's pilotis tradition) use section diagrams showing the lifted condition with the activated ground plane below. The diagram emphasizes the public ground that the lifting creates rather than just the architectural form above.

Strategy 17: the wrapping form

Buildings that wrap a single material or form continuously around the building (continuous facade, continuous roof-to-wall surface) use diagrams that emphasize this continuity. The diagram often shows the wrapping element abstracted from the rest of the building, highlighting the formal idea.

Strategy 18: the moment of compression

Architectural sequences often include a moment of compression that emphasizes a subsequent expansion or arrival. The diagram shows the spatial section through the sequence, with the compressed moment indicated clearly relative to the expansive moments before and after.

Strategy 19: the threshold sequence

Buildings with significant threshold conditions (entries, transitions, ceremonial moments) use diagrams showing the sequence of spaces from outside to deepest interior. Each threshold gets a marker; the spaces between thresholds are characterized briefly. The diagram explains the experiential structure.

Strategy 20: the nested geometry

Projects with formal logic of nested geometries (a room within a room within a building, a building within a courtyard within a site) use diagrams showing the nesting explicitly. The hierarchy of containment becomes the diagrammatic content.

Strategy 21: the relationship to context

Site context diagrams show the project's relationship to surrounding buildings, infrastructure, or natural features. The new building is highlighted while context is rendered in lighter weight; relationships (alignments, contrasts, continuations) are indicated explicitly.

Strategy 22: the time-based diagram

Some diagrams show change over time: how the building uses different spaces at different times, how the building changes seasonally, or how the building will be added to or modified over years. Time-based diagrams add a fourth dimension to architectural communication.

Strategy 23: the comparison

Side-by-side comparison diagrams place the design alongside an alternative (often the conventional approach the design rejects). The contrast makes the design's choice explicit by showing what was not chosen and why.

Strategy 24: the abstraction

Some concept diagrams reduce the project to almost pure geometry: three rectangles, a curve, a vertical line. The extreme reduction emphasizes the design's underlying formal logic without the distraction of architectural detail. This works for projects where the formal idea is strong enough to support extreme abstraction.

Strategy 25: the layered narrative

Complex projects sometimes use a sequence of diagrams that build on each other: the site condition, then the design response, then the program organization, then the structural logic. Each diagram extends the previous one rather than replacing it, building the project's full logic through accumulation.

The principle behind the strategies

All 25 strategies share one underlying principle: each diagram has one clear job and does it without distraction. The visual choices (line weight, color, abstraction level, sequence) serve communication rather than decoration. The reduction is what makes the diagrams strong; the discipline of cutting away everything not essential is the skill being demonstrated.

Studying the strategies builds vocabulary; producing your own diagrams builds judgment. The strategies are starting points for your own work, not templates to copy. The same strategy applied to different projects produces different diagrams because the projects are different; the strategy is just the framework for translating the project's specific move into visual form.

Production resources for your own diagrams

Pre-built templates and editable resources accelerate diagram production for students managing many projects. The Architecture Diagram Presentation Essentials on Learn Architecture Online provides editable Illustrator files for spatial zoning, mass evolution, circulation, and other common diagram strategies. Working from prepared templates lets you focus on the specific move of your project rather than rebuilding standard frameworks each time.

For axonometric and isometric diagrams specifically, the Isometric Urban Pack provides ready-made elements at correct projection angles. The Isometric Brushes add Photoshop brush options for isometric work.

What separates strong diagrams from weak ones

Across the 25 strategies, a few qualities separate strong diagrams from weak ones in any category. Strong diagrams have a clear job stated in one sentence. They use a small consistent visual vocabulary. They reduce aggressively, removing anything not essential. They sit at the right abstraction level for the move being communicated. They reproduce well at small scale.

Weak diagrams fail at one or more of these. The diagram tries to communicate too much. The visual vocabulary is inconsistent or random. The abstraction level is too detailed (becomes a small drawing) or too abstract (loses the project's specificity). The diagram falls apart at thumbnail size.

The discipline of producing strong diagrams is not about visual flair; it is about understanding what each diagram needs to communicate and removing everything else. This is what separates portfolios where every diagram does work from portfolios where diagrams are space-fillers between drawings.

Frequently Asked Questions

How many concept diagrams should a project include?

Three to seven for most projects. Fewer than three usually means the project's logic is not being explained; more than seven usually means the diagrams are not focused enough. Each diagram should communicate one clear move; if a project has more than seven distinct moves, it probably has too many ideas competing for attention.

Should concept diagrams use color?

Use color systematically (one color per concept type, sustained across all diagrams) or stay black and white. Random color produces visual noise without meaning. Many strong portfolios use restrained color palettes (one accent color plus black/grey) for diagram consistency.

Are hand-drawn or digital diagrams stronger?

Both work, depending on the project's overall register. Hand-drawn diagrams suit conceptual or exploratory projects; digital diagrams suit resolved or technical projects. Mixing the two within a single project usually produces visual scattering.

How do I know if my diagram is working?

Show it to someone outside architecture and ask what they see. If they describe the move accurately within a few seconds, the diagram works. If they need explanation, the diagram is not finished. Outside-discipline readers approximate how a juror reads diagrams at speed.

Final Thoughts

Concept diagrams are the project's most public explanation of itself, and learning to produce strong ones is one of the highest-return skills in architecture education. The 25 strategies in this piece are not a checklist; they are a vocabulary that helps you recognize options when you face new projects. The discipline of choosing the right strategy for the right project, executing it cleanly, and resisting the temptation to add more, is what separates portfolios that communicate from portfolios that do not. The strategies transfer; the move-by-move judgment is what each project asks you to develop.
