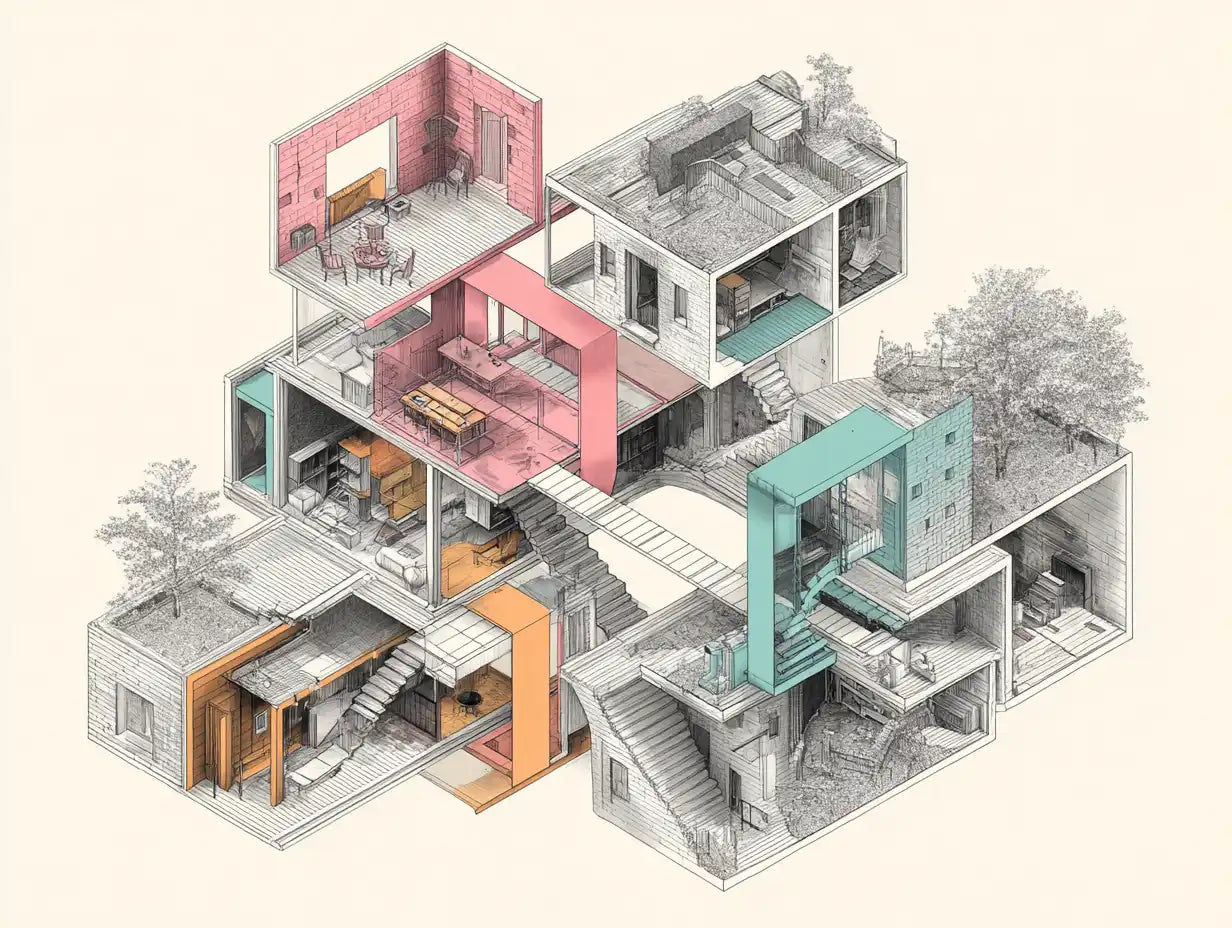

Architectural diagrams are the most undervalued part of most student projects. They are also the part that often decides whether a juror, hiring partner, or admissions committee understands the project at all. The diagram explains the move; the renders just show what the move produces. A project with strong diagrams is legible even at speed; a project with weak or missing diagrams forces the viewer to construct the argument from drawings, and most viewers will not bother.

This piece covers the three diagram categories that show up in nearly every architecture project (concept, site, program) and the visual logic that makes each one read clearly. The principles apply across diagram styles, from analog hand sketches to clean Illustrator vector work to detailed axonometric exploded views. What separates strong diagrams from weak ones is not style; it is whether each diagram has one clear job and does it cleanly.

What a diagram is for

A diagram is a reduction. It takes the project's information and removes everything except the one move it wants to communicate. A spatial sequence diagram shows movement through space; it does not show materials, structure, or program. A massing diagram shows the building's volume strategy; it does not show fenestration or detail. The reduction is the point. A diagram that tries to show everything ends up showing nothing.

This is why "pretty diagrams" often fail. Color, illustration, and visual styling cannot save a diagram that does not have a clear job. The first question for every diagram is what it is supposed to communicate, and if you cannot answer that in one sentence, the diagram is not ready to be drawn yet.

Concept diagrams: the project's main move

The concept diagram is the project at its most reduced. It shows the design move in the simplest possible terms: a courtyard pulled out of a mass, a bar crossed over a slope, a tower rotated to catch southern light. If the concept can be drawn in three lines, the diagram should be three lines.

The most common mistake is making concept diagrams too complex. A concept diagram with hatching, annotation, color zones, and arrows is no longer a concept diagram; it is a small drawing. The discipline is to strip away anything that does not communicate the move. If the move is "the building wraps around a central courtyard," the diagram shows a wrapping shape and a courtyard. Nothing else.

Strong concept diagrams often use sequence: three to five small diagrams showing the development of the move. Start with the site or context. Show the first intervention. Show how it transforms. Show the resolved geometry. The sequence makes the move legible step by step.

Site diagrams: situating the project in context

Site diagrams show how the building relates to its surroundings. They communicate site forces (sun, wind, slope, view, noise), context (neighboring buildings, landscape, infrastructure), and the project's response to these conditions. Like concept diagrams, they work by reduction.

The standard site diagram types include: solar studies (showing sun path across the site), pedestrian and vehicular movement (showing access patterns), view analysis (showing what is seen from where), context massing (showing neighboring building heights and types), and topographic analysis (showing slope and drainage).

For each diagram type, the rule is the same: strip away everything not relevant to that specific analysis. A solar diagram shows sun angles; it does not need to show pedestrian paths. A movement diagram shows circulation; it does not need to show solar exposure. Layering all the analyses into one diagram produces a confused visual that communicates none of them.

Diagram Type	Primary Job	Common Failure
Concept	Show the main design move	Too detailed, becomes a small drawing
Site context	Show building in surroundings	All analysis layered into one
Solar / sun path	Show sun behavior across day/year	Decorative without analysis
Circulation	Show movement patterns	Too many arrow types
Program	Show functional zones	Bar charts mistaken for diagrams
Massing	Show volume strategy	Becomes simplified axon
Structural	Show structural logic	Engineering drawing instead of diagram

Program diagrams: showing functional logic

Program diagrams show how spaces relate to each other functionally. The classic types include adjacency diagrams (which spaces touch which), bubble diagrams (relative sizes and connections of spaces), and stacking diagrams (vertical organization of program). Each communicates a different aspect of program logic.

The most common program diagram failure is treating it like a bar chart. Pure quantitative information (square footage by program type) is not a diagram; it is a graph. A program diagram should show relationships, not just quantities. The relationship between the lobby and the gallery, between public and private space, between served and serving spaces is what programs are made of.

For complex programs, multiple diagrams beat one detailed diagram. Show adjacency in one diagram, vertical organization in another, public-private gradient in a third. Each diagram does one job clearly rather than three jobs poorly.

Visual logic: how diagrams read

Strong diagrams use a small visual vocabulary consistently. Lines mean one thing throughout the project. Color, when used, has specific meaning. Hatching is reserved for specific elements. The reader learns the visual vocabulary in the first diagram and reads subsequent diagrams faster because the conventions are established.

Inconsistent visual vocabulary breaks this. If a red line means "movement" in one diagram and "boundary" in another, the reader has to relearn the conventions every time. The slowdown loses readers, and over the course of a project's diagram set, the cumulative effect is significant.

Establishing the visual vocabulary early is part of the diagram work. Decide what color (if any) you will use for circulation, what hatching patterns mean, what line weights distinguish primary from secondary information. Document this in a small key or use it consistently enough that the reader figures it out without explicit explanation.

Hand-drawn versus digital diagrams

Both work, and the choice should be deliberate. Hand-drawn diagrams (ink on paper, scanned or photographed) read as sketchy and exploratory. They suit early concept work and conceptual projects where the diagram supports a more illustrative project tone.

Digital diagrams (Illustrator, Figma, or InDesign vector work) read as resolved and editorial. They suit later-stage diagrams, technical drawings, and projects where the visual register is professional rather than exploratory. They are also easier to revise and reproduce.

Mixing the two styles in a single project usually fails. A project with hand-drawn concept diagrams and digital site diagrams reads as visually scattered. Pick one register and stay with it across the diagram set, or use the difference deliberately to signal different stages of the project's development.

For students working on multiple projects, the Architecture Diagram Presentation Essentials template pack provides editable Illustrator files for spatial zoning, mass evolution, and other common diagram types. Working from prepared templates lets you focus on the diagram logic rather than recreating standard frameworks each time.

Axonometric and exploded diagrams

Axonometric diagrams show three-dimensional information without the foreshortening of perspective. They suit massing studies, structural systems, program stacking, and any case where the relationship between elements matters more than the visual experience of the space.

Exploded axonometric diagrams pull the building's layers apart vertically: ground floor, intermediate floors, roof, structural system, envelope. Each layer becomes legible because it is separated from the others. This is one of the strongest diagram types for communicating complex systems and relationships.

The trap with axonometric diagrams is over-detail. An axonometric that shows every wall, every door, every window, every piece of furniture stops being a diagram and becomes a small drawing. Strip the axonometric to only the elements that communicate the diagram's job.

Where diagrams sit in the portfolio sequence

In a portfolio project spread, diagrams typically appear early, after the project cover and brief but before the resolution drawings. The sequence: project cover with hero image, brief and concept diagrams, plans and sections, renders, details. Diagrams establish the move that the resolution drawings prove.

For graduate school portfolios, diagrams carry more weight than for job application portfolios. Admissions committees reading hundreds of applications use diagrams to understand projects quickly; if a project's diagrams do not communicate the move, the project often does not get a careful read.

For competition entries and presentation boards, diagrams are usually placed near the top of the board, often integrated with the title and brief. They are the first explanatory content the viewer encounters, before the resolution drawings.

Tools and templates

Most professional diagrams are produced in Adobe Illustrator (for vector work), Photoshop (for raster compositions and overlays), or Rhino with the Make2D command (for axonometric base linework that can then be edited in Illustrator). InDesign handles diagram placement in the layout but is rarely used for diagram production itself.

For students, Adobe Illustrator is the most useful single tool for diagrams. The vector workflow handles editable line weights, scalable shapes, and clean text in ways that raster tools cannot match. The learning curve is moderate; the basics needed for diagrams take a few hours to learn.

Free alternatives include Affinity Designer (one-time purchase, similar to Illustrator) and Inkscape (free, open-source). Figma also handles vector diagram work well and is free for individual use.

Iteration: most diagrams take three or four passes

First-attempt diagrams rarely communicate clearly. The discipline is to draw the diagram, look at it critically, identify what is unclear or missing, and redraw. Most strong diagrams go through three or four iterations before they read cleanly.

The test for a finished diagram: show it to someone outside architecture and ask them what it shows. If they can describe the diagram's move accurately within a few seconds, the diagram works. If they need explanation, the diagram is not finished. Outside-discipline readers strip away the assumptions architects make and approximate how a juror reads diagrams at speed.

Common diagram failures

A few patterns repeat across weak diagrams. Diagrams that try to show everything: too many elements, no clear focus. The fix is to commit to one diagram per piece of information.

Diagrams without a key idea: pretty graphics that do not actually communicate a move. The fix is to write the one-sentence caption first.

Inconsistent visual vocabulary: the same line, color, or hatch meaning different things across diagrams. The fix is to establish conventions early and stick with them.

Decorative diagrams: graphic flourishes (gradients, drop shadows, fancy arrows) that do not serve communication. The fix is to remove anything that is not strictly necessary.

Reference resources from sites like ArchDaily and Dezeen show how published projects handle diagrams. The strongest published projects almost always reduce diagrams aggressively, keeping each one focused on a single move.

Frequently Asked Questions

How many diagrams should a project include?

Five to ten for most projects. Fewer than three reads as missing analysis; more than fifteen reads as undisciplined. The strongest projects often use the same five or six diagram types but apply them rigorously rather than producing many varied ones.

Should I use color in architectural diagrams?

Use color systematically or not at all. One color per program type, sustained across all diagrams in the project, works well. Random or decorative color produces visual noise without meaning. Black-and-white with greyscale variation is a strong default.

What software is best for diagram production?

Adobe Illustrator for vector diagrams, the professional standard. Photoshop for raster compositions. Rhino with Make2D for axonometric base linework. Affinity Designer is a one-time-purchase alternative to Illustrator with similar capabilities.

Are hand-drawn diagrams acceptable in 2026?

Yes, when used deliberately. Hand-drawn concept diagrams suit conceptual or exploratory projects. They look out of place in technical or production-oriented portfolios. The decision should match the project's overall visual register.

Final Thoughts

Architectural diagrams are not decoration. They are the project's most public explanation of itself, and they decide whether viewers understand the work. The discipline of reducing each diagram to one clear job, using a consistent visual vocabulary, and iterating until the diagram reads quickly is what separates portfolios that communicate from portfolios that hope viewers will piece things together. The drawings already show the project; the diagrams explain why it is what it is.
