The dome of Hagia Sophia works by carrying its weight through four curved triangular pendentives down to four massive piers at the corners of a square base. Two flanking semi-domes absorb the outward thrust, while a ring of 40 windows at the base lightens the rim and floods the interior with light.

Built in Constantinople between 532 and 537, Hagia Sophia solved a problem that had limited builders for centuries: how to set a round dome over a square room without filling the space with columns. The answer changed how large interiors were covered for the next thousand years. This is a look at the actual mechanics, the parts that do the work, and why the structure has survived earthquakes that flattened lesser buildings.

What problem did the dome solve?

A dome is naturally circular at its base. A room is usually square or rectangular. Earlier builders bridged that gap with squinches, small arches or brackets thrown across each corner to make an eight-sided ring the dome could sit on. Squinches work, but they are clumsy on a large scale and waste the corners of the room.

The architects of Hagia Sophia, the mathematicians Anthemius of Tralles and Isidore of Miletus, used pendentives instead. A pendentive is a section of a sphere shaped like an inverted curved triangle. Four of them, one in each corner, sweep up and inward from the piers and meet to form a complete circular rim at the top. The dome rests on that rim. The result is a smooth, uninterrupted transition from the square plan below to the round dome above, with the whole floor left open.

This was one of the first times pendentives were used at such scale, and it is the single feature most responsible for the building's vast, column-free central space. If you want context on how this fits into the wider tradition, the broader story of structural roles in building design is covered in our overview of the different types of architects and what they do.

How does a pendentive carry the load?

Picture the square base of the dome chamber. At each corner stands a pier, a thick block of masonry that runs from the foundation up past the level where the dome begins. Spanning between the piers are four great arches, one on each side of the square. The pendentives fill the curved space between those arches and the circular ring at the top.

As the dome pushes down and outward, the pendentives gather that force and funnel it diagonally toward the four corners. From there the piers take over, running the load straight down to the foundations. Because the thrust is collected at four points rather than spread along a continuous wall, the walls between the piers carry far less and can be opened up with windows and arcades.

How do the semi-domes and piers hold it steady?

A dome does not only press down. It also pushes outward at its base, the way a heavy lid tries to spread the rim of a pot. Left unchecked, that horizontal thrust would force the supporting walls apart. Hagia Sophia handles it on two axes in different ways.

Along the long east-west axis, two large semi-domes lean against the central dome, one toward the apse and one toward the entrance. Each semi-dome is itself braced by smaller half-domes and apses, forming a cascade that catches the thrust and passes it down step by step to the end walls. The outward push of the main dome is partly cancelled by the answering push of these semi-domes.

Along the shorter north-south axis there are no semi-domes, so the load is taken by heavy arches and thick buttressing walls above the side galleries. This combination, semi-domes one way and buttressed arches the other, is what lets a single dome float over such a wide opening.

Why is the dome ringed with windows?

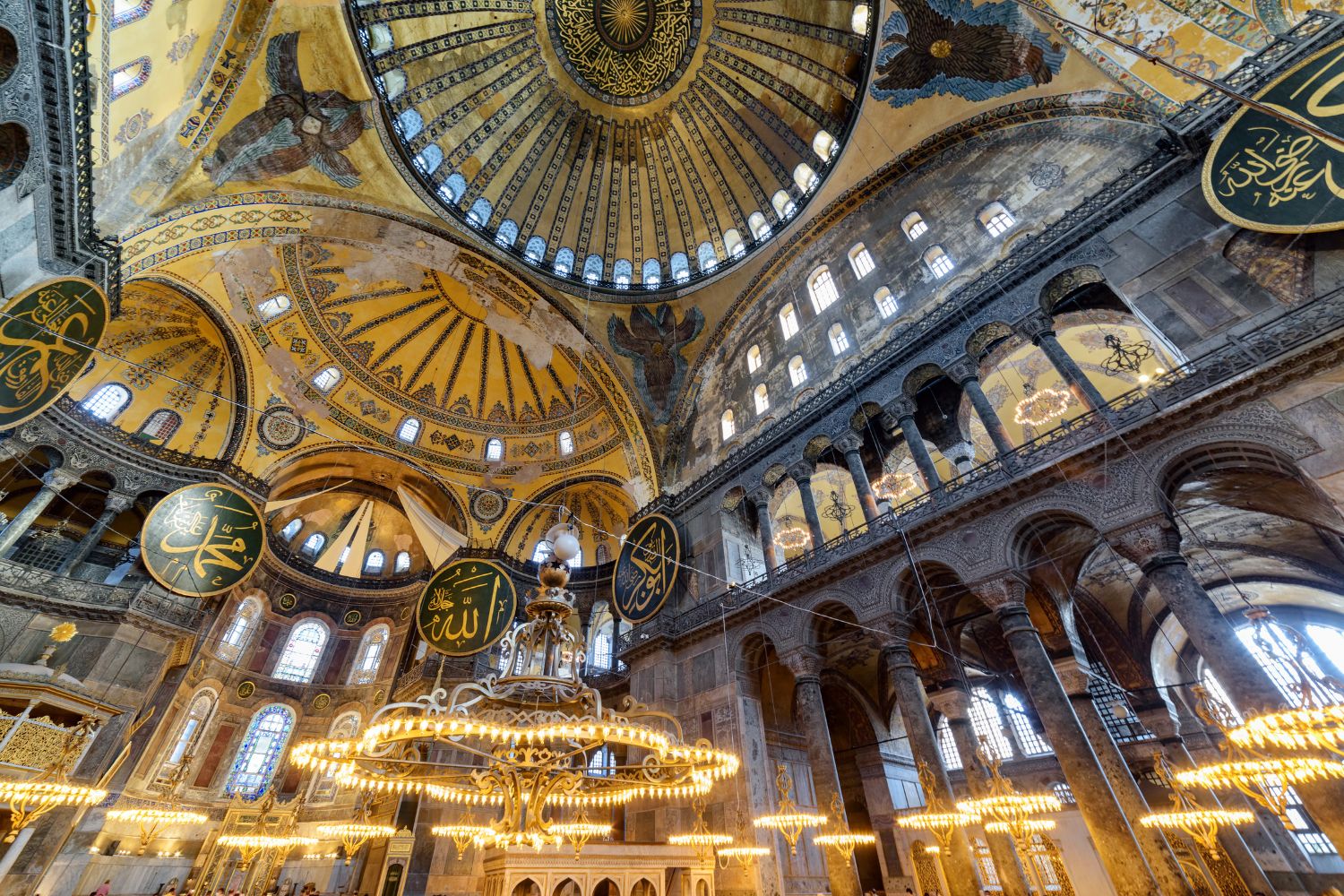

Running around the base of the dome is a band of 40 arched windows. They serve two jobs at once. Visually, the light pouring through them makes the dome appear to hover, with no obvious solid support between it and the air, an effect early visitors described as a dome suspended from heaven on a golden chain.

Structurally, the windows also remove material from the heaviest, most stressed part of the rim. A solid masonry ring there would add weight exactly where outward thrust is greatest. By opening the rim into a row of short piers between windows, the builders cut the dead load while keeping the compression ring intact. The lighting effect and the engineering logic point in the same direction.

What materials make it light enough to stand?

The dome is built mainly of brick set in thick beds of mortar, not solid stone. The bricks are thin and the mortar joints are unusually wide, in places wider than the bricks themselves. That heavy use of mortar gave the shell a slight flexibility, letting it shift and settle during tremors instead of cracking apart all at once.

Builders chose lightweight bricks for the dome itself while reserving denser, stronger stone for the piers and lower walls that carry the concentrated loads. The idea is simple in principle: keep the high, far-reaching parts as light as possible, and put the strength where the forces collect. The contrast in materials from top to bottom is part of why the structure works.

How has the dome survived for nearly 1,500 years?

The honest answer is that it has not survived untouched. The first dome failed in 558 and was rebuilt taller. Sections collapsed again after later earthquakes in 989 and 1346, each time repaired by the engineers of the day, who rebuilt portions of the rim and added ribs. Over the centuries, large external buttresses were piled against the building to brace the piers from outside.

So the dome works partly because its design distributes load cleverly, and partly because every generation has read its cracks and reinforced it. It is a living structure that has been monitored, patched, and propped for fifteen centuries. The lesson for any large span is that even a brilliant design needs care over time.

The building has been a church, a mosque, a museum, and a mosque again. Through all those changes the structural core, the piers, pendentives, semi-domes, and central dome, has stayed the load-bearing heart of the space. Today it is documented and maintained by Turkey's cultural authorities, and visitors can read its full history through the official Hagia Sophia History and Experience Museum.

Comparison: pendentive dome vs squinch dome

The table below sums up why pendentives gave Byzantine builders an advantage over the older squinch method for large interiors.

Feature	Pendentive dome	Squinch dome
Transition shape	Smooth curved triangle from corner to ring	Small arches bridging each corner
Load path	Concentrated at four corner piers	Spread across an eight-sided ring
Interior effect	Open, column-free central space	Corners partly closed off
Suitable span	Works at very large diameters	Best for small to medium domes
Famous example	Hagia Sophia, Istanbul	Many early Persian and Armenian churches

For a deeper account of the structural mechanics and the dome's repair history, the engineering review published by the American Society of Civil Engineers walks through the load paths in detail, while Wikipedia's entry on Hagia Sophia and the educational article from Khan Academy set out the wider art-historical context.

Technical descriptions here summarize historical and published sources. Structural assessments of any specific heritage building should be verified by a licensed professional.

Frequently asked questions

How big is the dome of Hagia Sophia?

The current dome measures roughly 32 to 33 meters in diameter and rises about 55 meters above the floor. The slightly oval shape comes from repeated rebuilds after earthquakes, so the diameter is not perfectly uniform in every direction.

What holds the dome up?

Four pendentives carry the dome's weight down to four massive corner piers, which run to the foundations. Two semi-domes on the long axis and heavy arches with buttressing on the short axis absorb the outward thrust so the dome stays stable.

Why does the dome look like it is floating?

A ring of 40 windows at the base of the dome lets in a continuous band of light. Because the eye sees light instead of solid support at the rim, the dome appears to hover above the building rather than rest on it.

Did the dome ever collapse?

Yes. The first dome partly fell in 558 and was rebuilt taller and stronger by 562. Further sections collapsed after earthquakes in 989 and 1346 and were repaired each time, with external buttresses added over the centuries to brace the structure.

Who designed the dome?

The original building was designed by Anthemius of Tralles and Isidore of Miletus, two mathematicians rather than traditional master builders. After the first dome failed, Isidore the Younger, a nephew of one of them, directed the steeper rebuild.

The Bigger Picture

What makes the dome of Hagia Sophia work is not one clever trick but a chain of decisions that all push in the same direction: spread the load to four points, brace the thrust with answering curves, lighten the rim where stress peaks, and keep the heaviest material at the bottom. Fifteen centuries later, the same logic still underpins how we cover wide spaces, which is the quiet reason a sixth-century church is still studied by engineers today.
