Site analysis in architecture is the process of studying a plot of land before design work begins. It covers the physical, environmental, and social conditions of a location so that the building you eventually design responds to its context rather than ignoring it. For architecture students, learning how to do site analysis well is one of the most transferable skills in the entire curriculum.

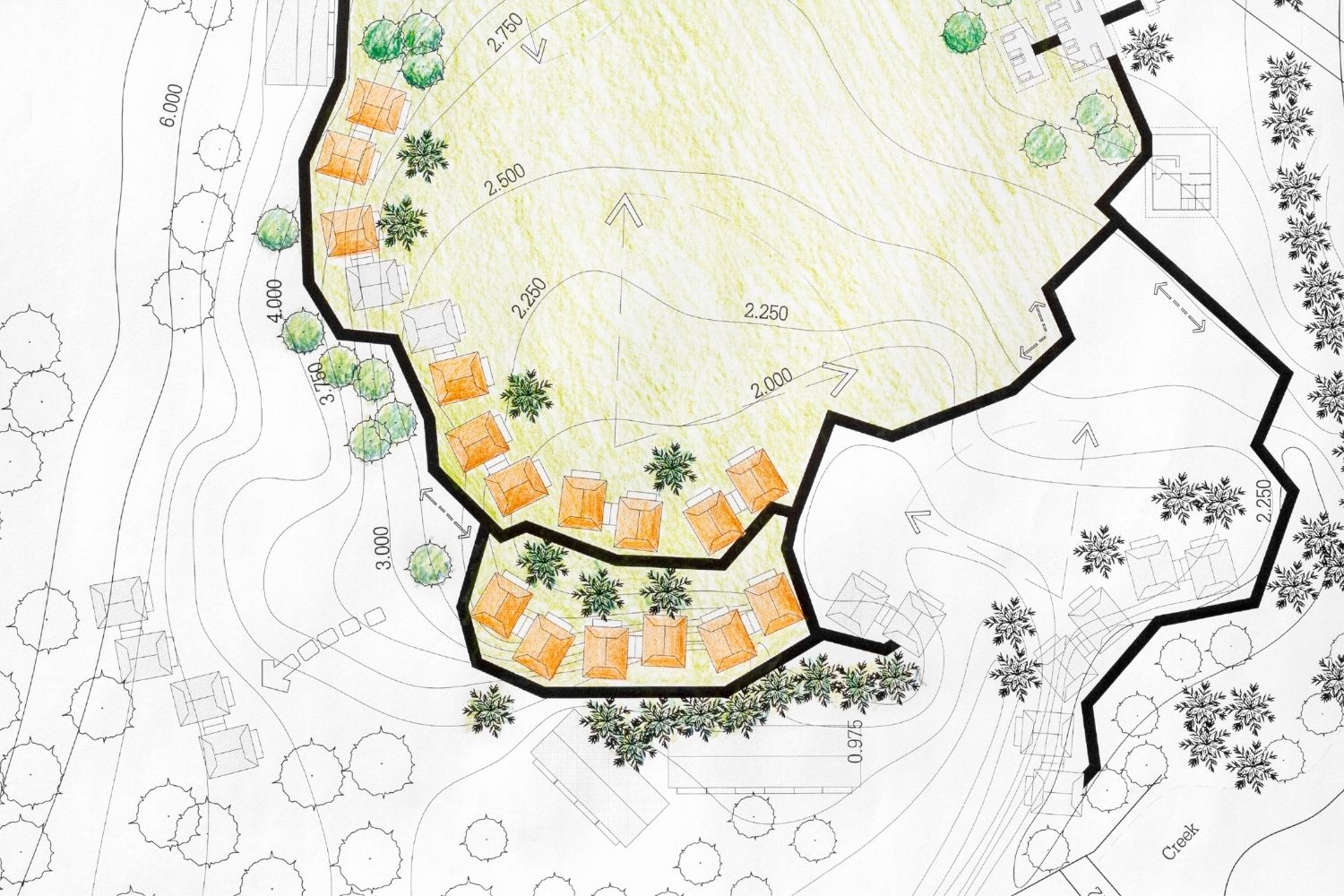

What Is Site Analysis in Architecture?
Site analysis is a structured investigation of everything that affects a proposed building site. That includes natural factors such as sun angle, prevailing winds, rainfall, and topography, as well as built factors such as neighbouring structures, street widths, land use, noise sources, and visual corridors. The output is typically a set of annotated diagrams and a written report that feeds directly into the early design process.
A good site analysis does not just describe what exists. It identifies opportunities and constraints. A steep slope, for example, is a constraint for accessibility but an opportunity for a split-level section that captures views. Sun from the south is an opportunity for passive solar gain in temperate climates. The skill lies in reading the site actively, not just recording it.
📌 Did You Know?
The term "site analysis" as a formal pre-design stage became standard practice in architectural education largely through the influence of Ian McHarg's 1969 book Design with Nature, which argued that landscape and environmental data should drive design decisions rather than be considered as an afterthought. McHarg's layering method is still the conceptual foundation of most site analysis methodologies taught today.
Why Site Analysis Matters for Architecture Students
Students sometimes treat site analysis as a box-ticking exercise, something to submit before the "real" design work starts. That is a costly mistake. Every design decision you make later, where to place the entrance, how to orient rooms, where windows go, how the building meets the ground, becomes far harder to justify without site data to back it up.
Tutors and critics notice when a design ignores its context. A building that could theoretically sit anywhere, with no relationship to sun, wind, views, or street, usually reads as underdeveloped. Site analysis is the evidence base that allows you to make confident, defensible design choices.
Beyond grades, the habit of reading a site carefully before drawing anything is what separates reactive designers from thoughtful ones throughout a career.
💡 Pro Tip
Visit the site at least twice: once around midday and once in the early morning or late afternoon. Lighting conditions change dramatically, and a shadow study done only at noon will miss how winter low-angle sun cuts across the plot. Photograph from the same positions on both visits so you can compare directly. This two-visit approach takes an extra hour and catches errors that a single visit would miss entirely.
Architecture Site Analysis Steps: Where to Start
A site analysis methodology tends to follow a consistent sequence regardless of the project scale. The steps below apply equally to a small residential infill plot and a large urban regeneration brief.
Step 1: Desk Research Before the Site Visit
Before stepping foot on site, gather as much base data as possible from remote sources. Ordnance Survey or equivalent topographic maps give you contour lines and spot heights. Planning authority databases provide planning history, conservation area designations, flood zones, and any existing permissions. Google Earth and Street View let you study the surrounding built fabric and identify how the site sits within its neighbourhood.
This preparation makes the physical site visit far more efficient. You arrive knowing which corners to photograph, which boundaries to measure, and which views to record rather than wandering without a plan.
Step 2: The Architecture Site Visit
The site visit is where the diagrams come alive. Carry a printed base plan, a compass, a measuring tape, and a camera or phone. Walk the full perimeter first to understand scale, then work inward. Record the following on your base plan as you move through the site:
- Existing vegetation: species, height, canopy spread, condition
- Level changes and any retaining structures
- Boundary treatments: walls, fences, hedges
- Utility covers (manholes, inspection chambers) which indicate underground infrastructure
- Noise sources and their approximate direction
- Any existing buildings on or directly adjacent to the plot
- Views in and out of the site from multiple positions
You can download pre-made site analysis diagram templates and annotation packs to speed up your presentation work after the visit. The Site Analysis Kit on Learn Architecture Online includes sun path diagrams, wind arrows, tree plan PNGs, and over 110 arrow types ready to drop into your drawings.
Step 3: Sun Path Analysis
Sun path analysis in architecture tracks how the sun moves across your site across different seasons. The sun rises due east and sets due west only on the equinoxes. In the northern hemisphere it arcs to the south and sits much lower in the sky in winter than in summer. Understanding this changes where you position living spaces, glazing, and any solar panels or shading devices.
Tools like the Sun Earth Tools calculator or the Ladybug plugin for Grasshopper let you generate accurate sun path diagrams for any geographic location and time of year. For a beginner's approach, a hand-drawn sun arc overlaid on your site plan clearly communicates morning, midday, and afternoon positions to your tutor or client.
Mark the south-facing aspect clearly on your site plan. This single annotation often becomes the most referenced element in your entire design process.
Step 4: Wind Analysis
Wind analysis in architecture identifies the direction and approximate speed of prevailing winds so you can position openings for cross-ventilation, shelter outdoor spaces from uncomfortable drafts, and plan any wind-sensitive landscape planting.
National meteorological services publish wind rose data for most regions. In the UK, the Met Office provides free wind data; in the US, NOAA maintains regional wind data archives. A wind rose diagram plots the frequency and intensity of wind from each compass direction as a radial chart. Adding this directly to your site analysis drawings, alongside your sun path diagram, gives a clear picture of the site's environmental performance.
⚠️ Common Mistake to Avoid
Many students draw a single arrow labelled "prevailing wind" and move on. Wind data is seasonal. The dominant wind direction in winter, when you most want to block cold air from entering, is often different from the summer direction, when you want to draw cool breezes through. Check seasonal wind data separately and note both on your diagrams. A single static arrow oversimplifies what is genuinely useful environmental information.
Step 5: Site Topography
Site topography in architecture describes the shape of the land surface: its gradients, high points, low points, and drainage patterns. A flat site sounds easier to build on, but a gently sloping site gives you more section design options and clearer natural drainage routes.
Contour lines on a survey drawing show topography clearly. Each line connects points of equal height, and the spacing between them indicates steepness: closely spaced contours mean a steep slope; widely spaced lines indicate a gentle one. When drawing your site section, cut through the most interesting topographic change, not across the flat bit, since the section will communicate more about the constraints and opportunities of the site.
Check whether any portion of the site sits within a flood zone. National flood mapping tools (the Environment Agency Flood Map in England, FEMA's Flood Map Service Center in the US) are free online and take minutes to query for any address.
Step 6: Urban Context Analysis
Urban context in architecture means understanding how your site relates to its surrounding neighbourhood. This goes beyond a simple land use map. It includes building heights and typologies on adjacent plots, the grain of the street pattern, active frontages versus blank walls, pedestrian desire lines, and where amenities such as parks, transit stops, and shops sit in relation to the site.
A Nolli map, which shows the relationship between solid building mass and public void (streets, squares, courtyards), is a particularly effective way to communicate urban context. Drawing one at neighbourhood scale, even as a rough analytical sketch, builds your understanding of how public and private space is currently distributed and where your building might contribute positively to that pattern.
🎓 Expert Insight
"The site is not just a setting. It is a partner in the design. Every site has something to say. Our job is to listen before we draw." — Renzo Piano, interview with Architectural Record, 2012
Piano's approach across projects as different as the Pompidou Centre and the Whitney Museum demonstrates this principle directly: each building responds to a specific reading of its urban surroundings. For students, this means the site analysis phase is not a bureaucratic prerequisite but an active conversation with the place that shapes every design decision that follows.
What Should a Site Analysis Report Include?
A site analysis report in architecture varies in depth depending on the brief, but most tutors and clients expect the following elements to be addressed, either as annotated diagrams or short written sections:
- Location and setting: Where the site sits within the wider city or region, distances to key infrastructure
- Sun path diagram: seasonal sun arcs overlaid on a site plan
- Wind rose or prevailing wind diagram
- Topographic survey or sketch section showing level changes
- Land use plan of surrounding area
- Photographs taken on site with annotations
- Views analysis: what can be seen from the site and what can be seen into it
- Noise and pollution sources with their proximity to the site
- Pedestrian and vehicular access routes
- Summary of planning constraints: conservation areas, listed buildings, tree preservation orders
For help assembling professional-quality graphics to illustrate each of these sections, the Architectural Site Analysis eBook on Learn Architecture Online is a well-regarded student resource that covers the full methodology alongside graphic examples.
Site Analysis Diagrams: Drawing Clearly and Communicating Effectively
The site analysis diagram is where data becomes design communication. A diagram that requires two paragraphs of explanation to understand is not doing its job. Every diagram you produce should be readable at a glance by someone who has not spent hours on site with you.
A few principles that improve diagram clarity immediately:
- Use a consistent graphic language across all diagrams in a set: the same north arrow style, the same colour coding for sun and wind
- Every diagram needs a north arrow, a scale bar, and a title
- Layer information carefully. A single diagram that tries to show sun, wind, traffic, views, noise, and topography simultaneously will read as visual noise. Separate your layers or use a composite diagram only for summary purposes
- Colour temperature conventions help: warm colours (yellow, orange) for sun-related data; cool colours (blue, grey) for shade, wind, and water
If you are assembling your site analysis presentation in Photoshop, the Site Analysis in Photoshop tutorial on Learn Architecture Online walks through the fastest method for integrating topographic base maps, sun paths, and annotation layers into presentation-quality sheets.
💡 Pro Tip
When presenting site analysis drawings, lead with a single composite "key issues" diagram before showing individual layers. This gives viewers an immediate orientation before you take them through the detail. A composite map that marks the three or four most significant site conditions, say, the best views, the noisiest edge, and the steepest slope, frames everything that follows and makes the logic of your eventual design decisions much easier to follow.
Site Analysis Tools for Architecture Students
A range of digital tools helps students generate accurate environmental and urban data without specialist surveying equipment. The following are widely used in architecture schools:
- Ladybug Tools / Grasshopper: Plugins for Rhino that generate sun path diagrams, wind roses, shadow studies, and radiation analysis from EPW weather files. Free and widely taught at postgraduate level.
- Climate Consultant: Free software from UCLA that reads EPW weather files and produces clear psychrometric charts, wind roses, and comfort analysis. Accessible to students who are not yet using parametric tools.
- Google Earth Pro: Free desktop software that provides historical aerial imagery, elevation profiles, and measurement tools for site area and distances.
- OpenStreetMap / Overpass Turbo: Free geographic data for building footprints, road networks, and land use, useful for generating base maps for urban context diagrams.
- Shadow Study in SketchUp: The built-in solar north and shadow setting in SketchUp lets students run a basic shadow study by setting geographic location, date, and time without any additional plugins.
For ready-made graphic assets including sun path symbols, wind arrows, and north pointers, the Sun Path and Wind Symbols pack on Learn Architecture Online offers a free download that covers the most common annotation types.
How to Present a Site Analysis
A site analysis presentation typically follows a narrative arc: start with the broad regional and urban context, then narrow to the neighbourhood scale, then focus on the site boundary itself, and finally zoom in to specific conditions like microclimate and topographic detail. This zooming-in structure mirrors how a viewer naturally builds understanding.
Keep verbal explanation brief. If you find yourself spending more than thirty seconds explaining what a diagram shows, the diagram needs to be redesigned, not further explained. The graphic should carry the information.
For a site analysis for a design jury or academic submission, a single A1 sheet with a tight layout of six to eight diagrams often communicates more effectively than twelve loosely organised slides. Consistency in scale, graphic style, and layout grid signals rigour and makes comparison between diagrams easy.
The Free Site Analysis Diagram AI file on Learn Architecture Online provides an editable template with a pre-built layout structure and symbol set, which is a good starting point if you are building your presentation graphic from scratch.
✅ Key Takeaways
- Site analysis in architecture covers physical, environmental, and social conditions of a site before design begins.
- The core steps are: desk research, site visit, sun path analysis, wind analysis, topography study, and urban context mapping.
- Effective site analysis diagrams are clear, consistent, and legible without verbal explanation.
- Free tools like Climate Consultant, SketchUp shadow studies, and Google Earth Pro give students access to environmental data at no cost.
- The goal is not just to record conditions but to identify design opportunities and constraints that will drive your decisions.
- Presenting site analysis as a zooming-in narrative, from regional to site-specific, makes the logic easy to follow for tutors and juries.
Frequently Asked Questions
What is site analysis in architecture?
Site analysis in architecture is a structured study of a specific plot of land conducted before design work begins. It examines environmental factors (sun, wind, rainfall, topography), built context (neighbouring buildings, street pattern, land use), and site-specific conditions (noise, access, views, existing vegetation) to identify the constraints and opportunities that should shape the design response.
How do I start a site analysis as an architecture student?
Begin with desk research before visiting the site. Gather topographic maps, planning authority data, aerial imagery, and any historical records for the location. Then complete a structured site visit with a prepared base plan, compass, measuring tape, and camera. Record environmental, physical, and contextual observations directly onto the base plan rather than trying to memorise them.
What should a site analysis include?
A site analysis report should include a sun path diagram, a wind analysis diagram, a topographic survey or section, a land use plan of the surrounding area, annotated site photographs, a views analysis, noise and access notes, and a summary of any relevant planning constraints. The exact depth depends on the project scale and brief.
What tools are used for site analysis in architecture?
Common tools include Ladybug/Grasshopper for parametric environmental analysis, Climate Consultant for free EPW weather file reading, SketchUp for shadow studies, Google Earth Pro for aerial and elevation data, and OpenStreetMap for urban base maps. For graphic production, Photoshop and Adobe Illustrator are the most widely used platforms in architecture schools.
How long should an architecture site visit take?
For a student project, a thorough site visit typically takes between one and three hours depending on the plot size and complexity. A simple infill residential site can be documented in an hour if you arrive prepared. A larger or more complex urban site may require two visits at different times of day to capture lighting conditions accurately.
