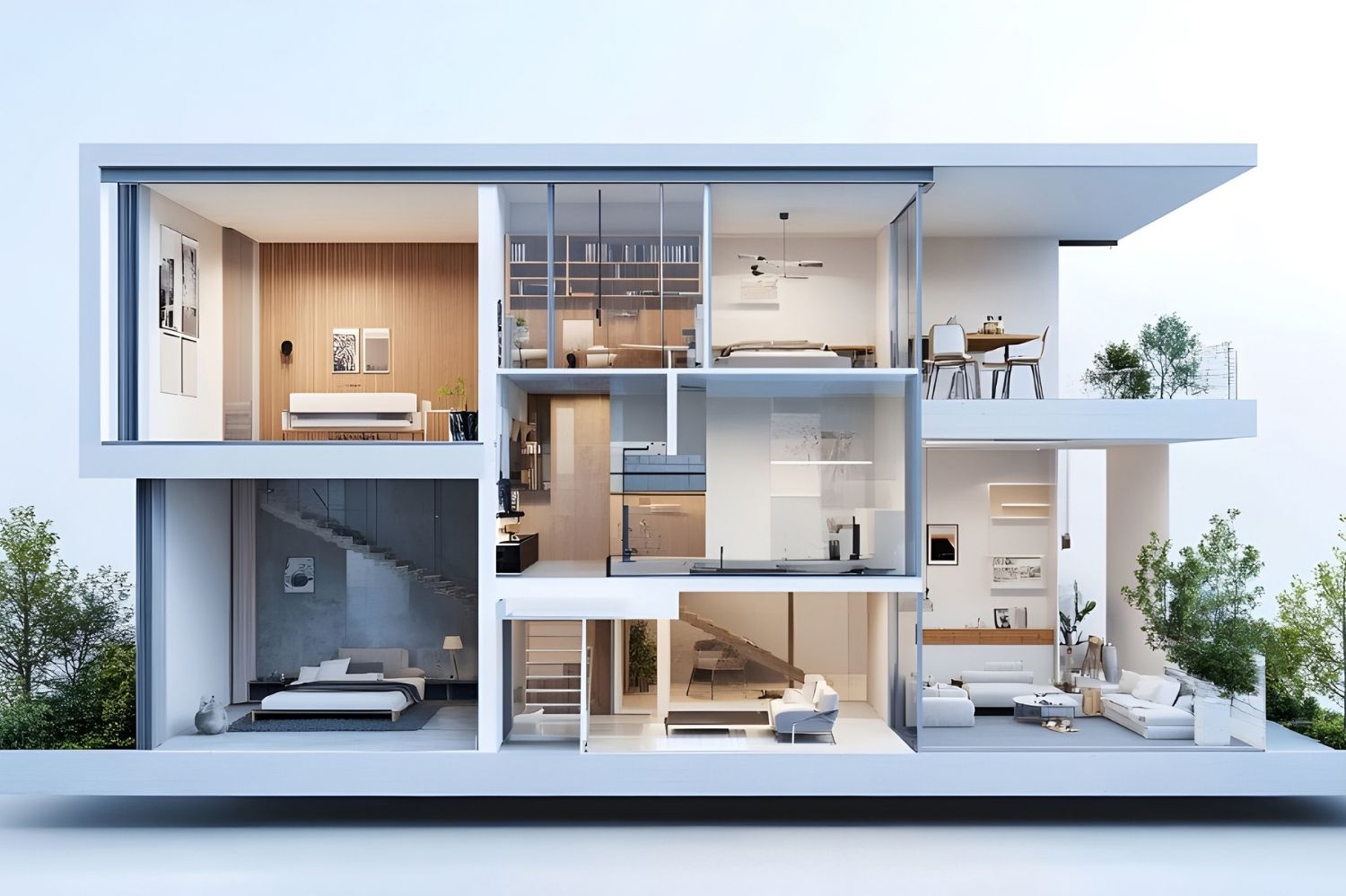

Section drawings reveal architecture in ways no other drawing can. The relationship between floors, the negotiation of structure with space, the play of light through a building's volume, the way ground meets building meets sky, all become visible in section in a way that plans, elevations, and renders cannot show. Strong section drawings combine technical accuracy with compositional beauty, and studying them across many projects teaches what makes a section read as both document and image.

This piece walks through the qualities that make architectural sections beautiful, organized around the techniques that strong sections share. Rather than a literal list of 50 specific drawings, this is a guide to the families of moves that produce strong section work, with discussion of canonical examples that demonstrate each move. Studying actual sections at the publications referenced will deepen the lessons; the analysis here gives you the vocabulary to read what you find.

Why sections deserve special attention

Most students treat sections as the third drawing they produce, after plans and elevations. The result is sections that document the project competently but do not contribute to its argument. The strongest portfolios reverse this priority: sections become primary drawings that explain the project's spatial logic better than other drawings can.

This matters because architectural ideas often live in section. A vertical sequence of spaces, a strategic relationship between floor levels, a moment where the building engages the ground, an interior connected to the sky, all of these reveal themselves in section. A project that has these qualities and shows them in section reads as more thoughtful than a project where the section is an afterthought.

For portfolio applications, strong sections are also a differentiator. Reviewers scanning hundreds of portfolios remember the projects whose sections explained something they had not seen before. Plans tend to homogenize; sections, when used well, individuate.

Quality 1: line weight hierarchy

The most fundamental quality of a strong section is line weight hierarchy. The cut elements (everything the section line slices through) get the heaviest weight, around 0.5 to 0.7 millimeters at typical drawing scales. Visible elements beyond the cut (rooms behind, building masses in the distance) get lighter weights, progressively diminishing with distance.

This hierarchy is what gives sections depth. Without it, the drawing flattens; with it, the section reads as the spatial document it is supposed to be. The cut elements pop forward, the depth recedes, and the eye reads the drawing as a description of three-dimensional space rather than as a flat composition.

Many sections published in The Architectural Review and similar magazines demonstrate this hierarchy with disciplined precision. The strongest examples often use four to five distinct line weights, not just two or three.

Quality 2: the ground line

The ground line in a section is one of its most important elements. A strong ground line establishes context, indicates the building's relationship to the site, and grounds the drawing literally and figuratively. Weak sections often have ambiguous or absent ground lines, which makes the building feel suspended.

Strong ground line treatments include hatched poché below grade, indicating soil and the building's foundations; carefully drawn topography that shows the site's slope and how the building engages it; and surface elements (paving, landscape, adjacent buildings) that situate the project in its context.

For projects where the relationship to ground is part of the design (sloped sites, partially buried buildings, raised structures), the ground line treatment becomes critical to communicating the design move. Sections of this kind of project often feature the ground prominently and treat it with as much care as the building itself.

Quality 3: poché and material indication

Poché refers to the dense hatching or solid fill applied to cut elements (walls, floors, structure) in section. Strong poché distinguishes structural elements from non-structural, gives weight to the drawing, and indicates materials through different hatching patterns.

The conventions vary: solid black for cut concrete, diagonal hatching for cut masonry, lighter hatching for cut wood. The specific conventions matter less than the consistency of their application within a single project. Sections where poché varies arbitrarily read as inconsistent; sections where poché follows clear rules read as documented.

Some practices use very minimal poché (thin lines, no fills) for a more drawing-focused aesthetic; others use heavy poché for a more documentary aesthetic. Both work when applied consistently and matched to the project's overall visual register.

Quality 4: people and scale figures

Strong sections almost always include people. The figures provide scale that the drawing alone cannot, demonstrate use of the spaces being shown, and add visual interest that pure architectural elements lack. Sections without figures often feel cold or unoccupied.

The figure placement matters. People shown using the spaces (sitting at desks, walking through corridors, gathered in larger rooms) communicate program. People shown only as silhouettes against the architecture provide scale without programmatic information. Both work for different purposes.

The figure style should match the section's overall aesthetic. Highly detailed sections use detailed figures; minimalist line sections use simple silhouettes. Mixed styles within a single drawing often read as inconsistent. The 16 Human Silhouettes and 44 Human Photoshop Brush on Learn Architecture Online provide silhouette ranges suited to architectural sections.

Section Quality	What It Adds	Common Failure
Line weight hierarchy	Spatial depth	All lines same weight, flat
Strong ground line	Site context, grounding	Building floats without context
Consistent poché	Material indication, weight	Random or inconsistent fills
Scale figures	Scale, use, life	Cold, unoccupied appearance
Furniture and elements	Program legibility	Empty rooms, no use shown
Vegetation	Site context, scale	Site appears barren
Color or tone (when used)	Atmosphere, depth	Color without logic
Sky and atmosphere	Spatial frame	Building cut off at top

Quality 5: furniture and program elements

Strong sections show furniture, equipment, and program elements that indicate how spaces are used. A section through a library shows shelves and reading tables; a section through a theater shows seating and stage equipment; a section through a kitchen shows counters and appliances. The program-specific elements communicate use that pure architectural elements cannot.

The level of detail in furniture should match the drawing's overall detail level. Highly detailed technical sections include detailed furniture; conceptual diagrammatic sections often abstract furniture to simple shapes. Mixed levels of detail within a single drawing often read as inconsistent.

For projects where the program is part of the design narrative, furniture and equipment in section communicates the building's function in ways that abstract sections cannot. This makes program-rich sections particularly important for portfolio drawings of public, civic, or specialized buildings.

Quality 6: vegetation and landscape

Sections that include the landscape (trees, ground cover, garden elements) read as more grounded and contextual than sections that show only the building. Vegetation provides scale, indicates climate, and shows how the building engages its setting.

The vegetation should match the project's actual site conditions. A Mediterranean project shows olive trees and cypresses; a Northern European project shows pines and birches; a tropical project shows palms and banana plants. Site-appropriate vegetation reads as researched; generic vegetation reads as decorative.

The 35 Tree Silhouettes, 40 Tree Elevation, and 9 Plant Elevation on Learn Architecture Online provide tree elevations and section-appropriate vegetation that integrate cleanly into architectural drawings.

Quality 7: color and tonal treatment

Colored sections are now common in contemporary practice, particularly for presentation and portfolio purposes. The treatment varies: subtle washes that indicate materials and tones, full color renders that approach perspective rendering, and stylized color that uses tone for graphic effect.

The choice of treatment should match the project's overall visual register. Technical sections (for documentation purposes) usually stay black and white or use minimal color. Presentation sections often use restrained color for atmosphere; conceptual or experimental projects may use more dramatic color treatments for graphic impact.

The most common color section failure is unfocused color use: random colors applied across the drawing without underlying logic. Strong color sections use color systematically (one color per material, gradient for atmospheric depth, accent color for emphasis) or stay monochrome.

Quality 8: sky and atmospheric framing

Strong sections often include treatment above the building (sky, atmosphere, occasionally weather) that frames the building from above. Sections cropped tightly to the building's roof line feel cut off; sections that extend into the sky feel complete.

The sky treatment varies: subtle hatching indicating sky, blank space that lets the building breathe, or atmospheric gradient that adds depth. Each works for different sections; the choice should be consistent across all sections in a project.

For sections of significant interior spaces, the sky framing matters less because the focus is interior. For exterior-emphasizing sections, the sky framing is part of how the building reads as architecture rather than as object.

Quality 9: cut versus elevation in section

A section drawing combines two elements: the cut (where the section line slices through the building) and the elevation beyond (what is visible past the cut, rendered as elevation). The relationship between these two reads as the section's depth.

Strong sections handle this relationship clearly. The cut elements get the heaviest line weights and most prominent treatment; the elevation beyond gets lighter weights and may include shading or tone to indicate distance. The two together produce the spatial reading that pure cut drawings or pure elevation drawings cannot achieve.

Weak sections sometimes blur this distinction, treating cut and elevation with the same line weight. The result reads flat. Distinguishing the two consistently is what gives sections their characteristic depth.

Quality 10: the chosen section line

The section line's location matters more than students often realize. A strong section line cuts through the project's most important spaces and reveals its critical relationships. A weak section line cuts through less important areas and hides what the project is actually about.

For most projects, the section line should pass through the building's primary spaces, important vertical relationships (lobbies, atriums, stairs), and the project's defining moments. For complex projects, multiple sections in different directions reveal different aspects of the design.

Plans should always show where the section lines are taken, with consistent labeling (Section A-A, B-B, etc.). This connection between plan and section is part of how reviewers read the drawings together.

Sections in different drawing traditions

Different practice traditions handle sections differently, and recognizing the variations helps you read sections from various sources.

Swiss and German practices often produce highly precise, technically detailed sections with strong line work and minimal color. The aesthetic emphasizes documentation and craft; sections from Herzog & de Meuron and Diener & Diener demonstrate this tradition.

Japanese practices often produce sections that emphasize spatial poetry through restrained line work and careful figure placement. The aesthetic emphasizes atmosphere and perception; sections from Tadao Ando and SANAA demonstrate this tradition.

British and American academic practices often produce sections with explicit narrative content (figures shown using spaces, program elements indicated, atmospheric treatment). The aesthetic emphasizes communication and argument; sections from many AA School and Yale projects demonstrate this tradition.

For students, exposure to multiple traditions builds vocabulary. The choice of which tradition to draw from for your own work depends on your design interests and target professional context.

Section drawing tools and techniques

Most architectural sections are produced through a combination of CAD or BIM software for the underlying geometry and Photoshop or Illustrator for finishing. Pure CAD sections often look technical but lack atmospheric quality; sections finished in Photoshop or Illustrator can add tone, color, and figure work that pure CAD cannot.

The standard production workflow:

1. Generate the underlying section geometry in CAD or BIM software (AutoCAD, Revit, ArchiCAD, Rhino).
2. Export as vector (PDF or DWG) for further work.
3. Import into Illustrator or Photoshop.
4. Adjust line weights for hierarchy.
5. Apply poché and material indication.
6. Add figures, furniture, and vegetation.
7. Apply color or tonal treatment if appropriate.
8. Add annotation, dimensions, and section reference.

For sections at the highest quality level, this workflow takes 4 to 12 hours per section, depending on complexity. Quick technical sections can be completed faster; presentation-quality sections almost always require the longer time investment.

Building a personal reference library of sections

Studying sections through your own reference library produces deeper understanding than browsing publications passively. The practical approach: when you find a section you respond to, save it organized by what makes it strong (line weight discipline, ground treatment, figure work, color use). Over time, the library becomes a calibration set for your own section production.

Strong sources include the project pages on ArchDaily (which often include section drawings as part of project documentation), monograph books on specific practices, and architectural magazines that publish working drawings alongside finished projects.

The library does not need to be large. Twenty to thirty exemplary sections that you understand deeply provide more learning than hundreds you have only glanced at. Quality of attention beats quantity of exposure.

Common section failures and their fixes

A few patterns repeat in weak student sections. The first is uniform line weight: all lines the same thickness, producing a flat drawing without depth. The fix is the line weight hierarchy described in Quality 1.

The second is empty sections: rooms drawn without furniture, figures, or program indication. The fix is adding scale figures and program elements that show how the spaces are used.

The third is missing ground: sections cropped tightly to the building without site context. The fix is extending the section to include ground line, topography, and minimal site context.

The fourth is inconsistent treatment across sections in a project: one section in color, another in black and white, with different line weights and conventions. The fix is establishing standards at the start of section production and applying them consistently across all sections.

Frequently Asked Questions

How many sections should a project include?

Two to four for most projects. A primary section through the building's most important spaces, plus one or two cross sections in different directions for complex projects. More than four sections often means the project has too many directions of interest; fewer than two often means the project's vertical logic is not being explained.

Should sections be in color or black and white?

Both work. Black and white sections read as more documentary and technical; colored sections read as more presentation-oriented. Consistent treatment across all sections in a project matters more than the specific choice. Many strong portfolios use black and white sections with restrained color accents for emphasis.

What scale should architectural sections be drawn at?

For typical buildings, 1:100 or 1:50 metric (1/8" or 1/4" imperial) for plan-set sections. Detail sections at 1:20 or 1:10. Conceptual or massing sections can be at smaller scales. The scale should match what the section is supposed to communicate; detail conditions need larger scales than overall building strategies.

How do I improve my section drawings quickly?

Focus on line weight hierarchy first; it produces the largest visible improvement. Add scale figures and program elements next. Establish strong ground line treatment. These three improvements applied to a competent section often move it to a strong one without requiring fundamental redesign.

Final Thoughts

Section drawings are where architectural ideas become legible as space rather than as plan organization or as facade. The discipline of producing strong sections (with line weight hierarchy, ground treatment, scale figures, and consistent conventions) is one of the highest-return skills in architectural drawing. Strong sections make projects more legible, more defensible, and more memorable. Weak sections undermine even good design work by failing to explain it. The investment in section drawing skill pays back across every project for the rest of your career.
