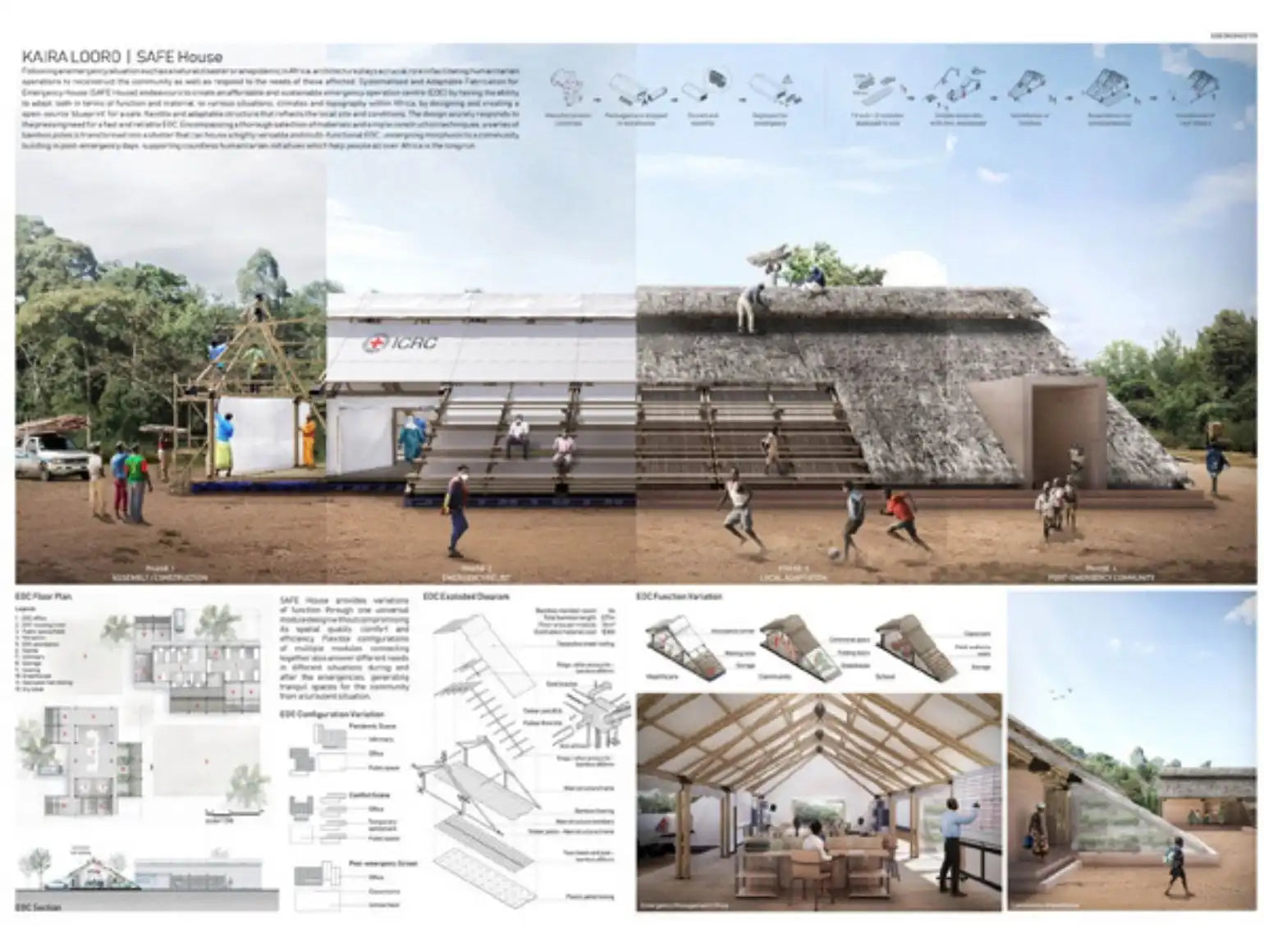

An architecture presentation board is a designed argument, not a poster of drawings. Jurors and competition reviewers spend 30 to 90 seconds on a first read of any board they encounter, and that first read decides whether they engage with the project or move on. The boards that win are the ones built to make the project legible in that short window, with structure that leads the reviewer's eye through the design move in a deliberate sequence.

This piece breaks down the anatomy of an architecture presentation board: how composition decides what gets seen first, how drawing hierarchy carries the project's logic, how narrative flow turns separate drawings into a coherent argument, and what specific decisions separate boards that win studio juries and competitions from boards that get talked past.

What a presentation board has to accomplish in 30 seconds

The first 30 seconds of a board review are about three things. The reviewer needs to understand what the project is, where it is, and what the design move is. If those three pieces of information do not come through fast, the board has failed regardless of how strong the underlying work is.

The hero element on the board (usually a render, a key plan, or an axonometric) carries most of this work. The title block, with project name and brief, supports it. Everything else is secondary in the first read. Reviewers who are interested then move into the supporting material; reviewers who are not interested have already decided.

This is why the dominant element on a presentation board should be roughly 40 to 60 percent of the board's area. Not three or four equally sized images, but one clearly dominant element with smaller drawings supporting it.

Board format and dimensions

The most common architecture presentation board sizes are A1 (594 x 841 mm) and A0 (841 x 1189 mm), used in vertical or horizontal orientation depending on studio or competition requirements. A1 is the standard for studio juries; A0 is more common for competition entries and major reviews.

Vertical orientation suits projects with strong vertical sequences (towers, sections, layered programs). Horizontal orientation suits sites with strong horizontal logic (urban projects, plans dominant, panoramic views). The orientation should be chosen based on the project, not as a default.

Multi-board presentations (three to five A1 boards in sequence) follow the same logic at the set level. Each board should have its own dominant element, and the boards together should tell the project story in a clear order.

The reading order: how the eye moves through a board

Western readers approach a board roughly the same way they read a page: top to bottom, left to right, with the upper left receiving the first attention. Strong boards work with this pattern rather than against it.

The hero element typically sits in the upper portion of the board or fills the center, where the eye lands first. The title and project text sit near the top, often near the hero element. Resolution drawings (plans, sections) sit in the middle of the board. Detail and supporting material sits at the bottom.

Boards that ignore this pattern (with critical information in the lower right corner, for example) lose information that should be in the first read. Designers can break the convention deliberately, but doing so requires understanding the convention first.

Board Zone	What Belongs Here	Reading Priority
Top center / upper third	Hero render or main perspective	First (3 to 5 seconds)
Top edge	Project title, brief, location	First scan (with hero)
Middle band	Plans, sections, key diagrams	Second pass (10 to 30 seconds)
Lower band	Details, secondary renders, axonometrics	Third pass (only if engaged)
Bottom edge	Author info, project metadata	Last or never

Composition: the grid and white space

Strong boards almost always sit on a grid. A 6 to 12 column grid for an A1 board gives enough flexibility for varied compositions without inviting drift. Every drawing, image, and text block aligns to grid edges. The result reads as composed because it is composed.

White space carries weight. A board with no white space reads as anxious and undifferentiated. A board with deliberate empty regions lets the eye rest and signals that the designer made decisions about what to include rather than dumping every available drawing onto the surface.

The standard ratio is roughly 70 percent content, 30 percent white space across the board. This includes margins, gaps between drawings, and any deliberately empty regions. Boards that fill the entire surface usually do so because the designer could not edit, not because the work demanded it.

Drawing hierarchy: what scales matter

Within a board, drawings need a hierarchy of sizes. The hero render is largest. The dominant plan is second largest. Sections and elevations are smaller. Details and supporting drawings are smallest. This hierarchy is what tells the reviewer which drawings carry the project's main argument.

The trap most students fall into is putting plans, sections, and elevations at the same size. This treats every drawing as equal, and the reviewer has no signal for which drawing carries the design move. The fix is to pick one drawing as dominant per board (often the plan that best shows the spatial logic) and let others support it at smaller sizes.

Drawing scale ratios should also be coherent. If the plan is at 1:200, the section can be at the same scale or at 1:100 for more detail, but mixing 1:50, 1:200, and 1:500 on the same board without indication confuses readers about what scale they are looking at.

Narrative flow: from concept to resolution

A presentation board tells a story in a specific order. The narrative usually moves from context (where is this project) to concept (what is the design move) to resolution (how does the design work) to expression (what does it look like). The board's composition should support this reading order through scale, position, and visual emphasis.

Concept diagrams sit early in the reading order, often near the hero render. Plans and sections form the middle of the narrative. Detail drawings and renders close the sequence. A board that scrambles this order (showing detail before context, or rendering before resolution) fights the reader's natural reading process.

For competition boards, this narrative work is even more critical because reviewers may see hundreds of entries in a single judging session. A board that reads in 30 seconds wins attention; a board that requires careful study to understand gets passed.

Typography on the board

Boards typically use one or two typefaces, no more. The title is set in a clear sans-serif at large size (60 to 100 points depending on board scale). Body text and captions sit at 9 to 12 points. The same typeface is used for both, with size and weight carrying the hierarchy.

Project titles should be readable from across the room. If a juror standing four meters from the board cannot read the title, the title is too small. This applies even when the digital version is at full resolution; the physical print scale is what matters.

Body text and captions exist to support the drawings, not to explain them. A caption that says "Floor plan, 1:200" is enough; a caption that describes what the plan shows is unnecessary. The drawing already communicates that information.

Color and graphic discipline

Restraint reads as confidence. Boards that use one or two accent colors against a neutral palette (black, white, grey) read as designed. Boards that use rainbow color across plans, diagrams, and text read as undisciplined.

A common discipline is to pick one accent color (a muted blue, terracotta, or olive) and use it for callouts, diagrams, and project numbers. Renders bring their own color from the lighting and material choices. Plans and sections stay primarily black and white with grey scales for hatching.

This is not the only valid approach; some projects benefit from saturated color, particularly competition boards where bold graphic identity helps stand out. The point is that color decisions should be deliberate, not the result of using whatever happened to come out of the rendering software.

Templates as structural starting points

Pre-built presentation board templates handle the grid, typography, and structural decisions so the designer can focus on the project work. Templates like the 20 Architectural Presentation Sheet Templates ship with master pages, grids, and typographic systems ready to customize. The Architectural Presentation Templates Pack includes paired portrait and landscape options for different project types.

The point of using a template is not to skip the design thinking. It is to externalize the structural decisions so the designer can spend time on what only they can do: deciding which drawings carry the project, how the narrative flows, and what the final composition argues. The structure is solved; the content is the work.

Common board failures and their fixes

A few patterns repeat across weak boards. The first is no clear hero element; the eye has nowhere to land. The fix is to scale up one drawing to dominate the composition. The second is undifferentiated drawing scales; everything is the same size. The fix is to commit to a hierarchy that reflects the project's argument.

The third is no white space; every corner is filled. The fix is to remove drawings rather than shrinking everything. The fourth is decorative graphics that compete with the project; arrows, color blocks, and visual fillers that have no purpose. The fix is to remove anything that does not serve the project's communication.

The fifth is text-heavy boards that try to explain instead of show. The fix is to trust the drawings and minimize text. If the drawings cannot communicate the project, no amount of text will compensate.

Print, color profile, and final output

Boards intended for print should be designed at the print resolution and exported with appropriate color profiles. CMYK is standard for print; RGB is standard for digital. Mixing them produces color shifts that look unintentional.

Plotting at large format requires checking line weights at the actual print size. A 0.1 millimeter line that reads on screen often disappears when printed at A0. Test prints at full size, even small portions of the board, before committing to the final output.

For digital submissions to competitions or studio reviews, exporting as PDF at 200 to 300 DPI produces a file that reads cleanly on screen and prints adequately if the reviewer chooses to print. Higher resolution exports increase file size without improving on-screen reading.

Frequently Asked Questions

What size should an architecture presentation board be?

A1 (594 x 841 mm) is the standard for studio juries. A0 (841 x 1189 mm) is more common for competitions and major reviews. Orientation depends on the project: vertical for projects with strong vertical sequences, horizontal for plan-dominated or urban projects.

How much text should a presentation board have?

As little as possible. Project title, brief, location, and short captions on key drawings. The board communicates through drawings, not paragraphs. If you find yourself writing long descriptions, the drawings are not doing their job and adding text will not fix it.

Can I use color in my presentation board?

Yes, with discipline. One or two accent colors against a neutral palette reads as designed. Rainbow color across all elements reads as undisciplined. The exception is competition boards where bold color can help with visibility, but the choice should be deliberate.

What software should I use for presentation board design?

Adobe InDesign for the layout, with Photoshop for image editing, is the professional standard. Illustrator works for diagram-heavy boards. PowerPoint and Word are not appropriate for presentation board design at any level.

Final Thoughts

A presentation board is the project at its most public moment. The composition decisions you make here determine whether the work gets seen or talked past. Spending the time to build hierarchy, narrative flow, and editorial restraint into the board pays off across every studio review and competition you enter. The drawings already exist; the board is where you decide what they argue.
