Furniture CAD blocks are reusable plan view symbols for beds, sofas, desks, chairs and storage that you insert into a drawing instead of redrawing them each time. Well built blocks carry real dimensions, a predictable insertion point and light line weights, so a plan stays readable at 1:100 and still measures correctly at 1:50.
Most students collect furniture blocks long before they think about organising them. Two semesters later the library is a folder of DWG files named sofa2_final_v3, half drawn in inches, half exploded into loose lines. What follows covers the drawing conventions behind furniture symbols, the sizes and clearances worth memorising, and a filing system that survives a real project.
What Furniture Symbols in a Floor Plan Actually Show
A floor plan is a horizontal section, normally cut about 1.2 m above finished floor level. Anything below that plane is not cut. It is seen from above and projected down, which is the case for a bed, a sofa or a dining table. That one fact settles most furniture drawing questions.
Tall items behave differently. A full height wardrobe crosses the cut plane, so it is cut and drawn with the heavier outline you use for walls, with shelves shown as thinner lines inside. Overhead elements never reach the cut plane, so upper kitchen cabinets and mezzanines above are drawn dashed.
The rest is convention, and convention is what makes furniture symbols on a floor plan legible to a stranger:
- Dining and desk chairs are drawn slightly pulled back, not tucked in, so the reader sees the space they need in use.
- A curtain CAD block is a thin wavy or scalloped line running along the window, with the stack shown to one side rather than spread evenly across the opening.
- A carpet CAD block is a light outline with a faint hatch or no hatch at all. Dense rug hatching fights with the furniture sitting on it.
- CAD blocks people, or scale figures, belong in plan only where they explain occupancy. In a residential plan they usually add noise.
💡 Pro Tip
Draw door swing arcs and wardrobe pull zones before you place any furniture. On school projects, the wardrobe that cannot open because the bed sits 400 mm away is the most common plan error, and it stays invisible until someone dimensions it.
Standard Sizes and Clearances That Keep Plans Honest
A block library is only useful if the geometry inside it is true to size. Furniture varies by manufacturer, so treat the figures below as planning dimensions and swap in real product sizes once the specification is fixed.
Planning Dimensions and Circulation
| Element | Typical footprint | Space to allow around it |
|---|---|---|
| Queen bed | 1525 x 2030 mm (60 x 80 in) | 750 mm on at least one long side |
| Two seat sofa | 1600 x 900 mm | 400 mm to the coffee table, 900 mm walkway behind |
| Dining table for four | 1200 x 800 mm | 1000 mm from table edge to wall to seat and pass |
| Desk workstation | 1600 x 800 mm | 1000 mm behind the desk edge for the chair |
| Wardrobe or tall storage | 600 mm deep | 900 mm clear in front for doors and drawers |
| Kitchen base cabinet | 600 mm deep, 900 mm high | 1015 mm minimum aisle in accessible layouts |
Where accessibility applies, the numbers stop being suggestions. The US Access Board guide to clear floor space and turning space sets 30 by 48 inches of clear floor space at operable elements and a 60 inch diameter turning space. Section 804.2 of the 2010 ADA Standards requires 40 inches minimum between opposing base cabinets in a pass through kitchen and 60 inches in a U shaped kitchen. Keep a 60 inch turning circle block in your library and drop it into bathrooms and kitchens as a check.
📐 Technical Note
Clearance is a movement dimension, not a body dimension. Cornell University's DEA 3250 ergonomics notes separate static anthropometry, the body at rest, from dynamic anthropometry, which covers reach and clearance during movement. A block describes the object, so the circulation gap around it has to be drawn separately.
Room by Room: Where the Blocks Go
Bedrooms
Place the bed first, since it fixes everything else. Against a long wall with two access sides it suits a shared room; in a corner it buys floor area at the cost of one access side. Wardrobes want a wall without a window, and no door swing should sweep across the wardrobe front.

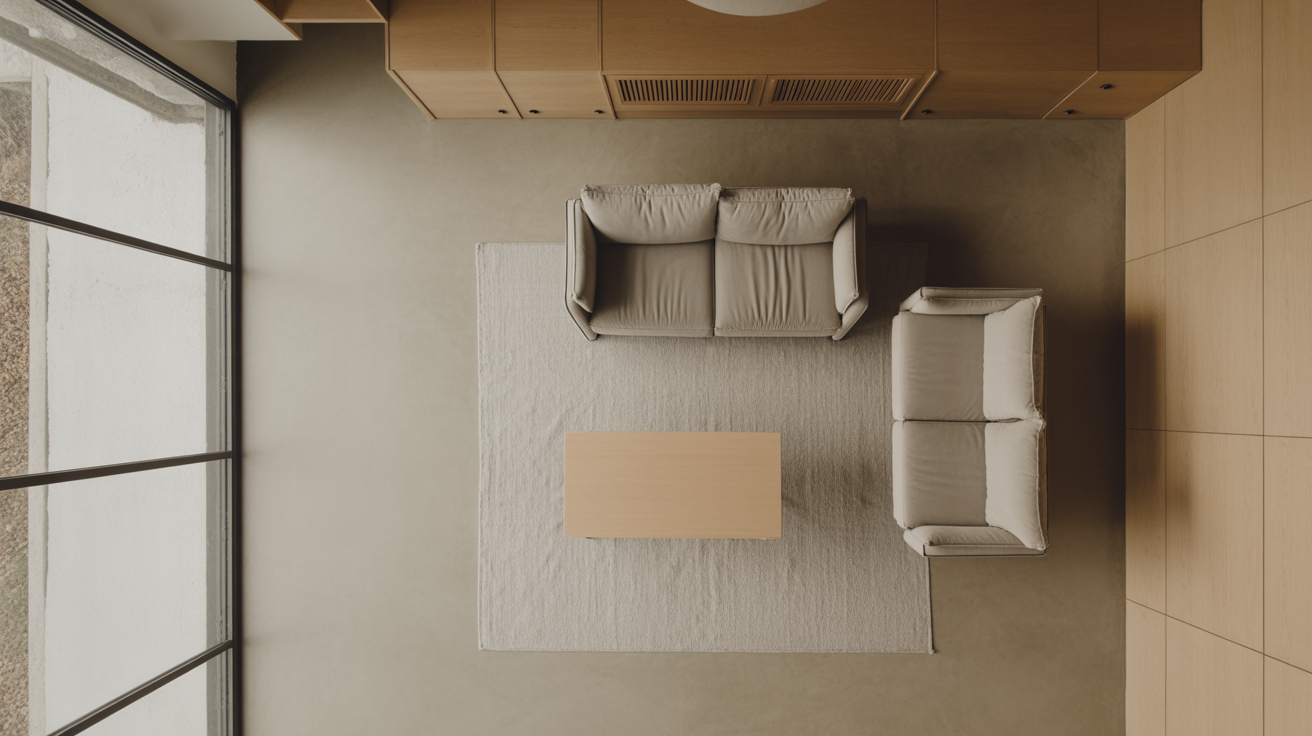

Living Rooms
Seating works around a focus: a television, a fireplace or a view. Keep facing seats under about 3 m apart, otherwise the arrangement reads as a waiting room, and route the walkway behind the seating.
Home Offices and Workstations
Desks need one zone behind them for the chair and a second for someone to walk past. Facing a wall gives focus, facing a window gives screen glare unless the desk sits perpendicular to it. In shared offices, plan the aisle as one continuous run.
Kitchens
Work the sink, hob and refrigerator as a triangle with legs of roughly 1.2 m to 2.7 m, and keep circulation out of it. Draw base cabinets solid and wall cabinets dashed, so a reader sees both layers in one drawing.
Line Weight and Level of Detail
Furniture is background information, so it should never compete with the walls. Give the heaviest weight to cut walls and columns, a medium weight to cut furniture such as tall wardrobes, and the lightest weight to everything seen in projection. Our guide to line weight in architectural drawing covers that hierarchy across a full set.
Detail level follows the scale. At 1:100 a sofa is an outline, a back line and a seat line, since nothing finer survives printing. At 1:50 you can add arm thickness and cushion divisions. Using one heavily detailed block at every scale is what turns a 1:200 plan into grey mush. Our breakdown of architectural drawing scales explains what each scale can carry.
⚠️ Common Mistake to Avoid
Exploding a block to recolour it. Once exploded, the object stops being one countable item and a global update becomes impossible. Draw block geometry on layer 0 with colour, linetype and lineweight set to ByBlock, and it takes on the properties of whatever layer you insert it onto.
Building a Furniture Block Library You Can Actually Use
A library is a naming system plus a few rules, not a pile of downloads. Use a fixed pattern such as FURN-BED-QUEEN-1525x2030 or FURN-SEAT-SOFA-2P-1600: category, type, variant, key dimension. Type FURN into the insert dialogue and the whole library appears in order.
Three rules do most of the work. Draw everything at full size in real world units, never pre scaled. Use one insertion point convention for every block, front left corner or centroid, so blocks snap predictably. Keep rotation zero facing the bottom of the sheet, so a chair inserted at 0 degrees always faces the same way.
Units matter more than people expect. Autodesk documents that a block definition carries an assigned unit of measurement which controls automatic scaling on insertion. Set it once at creation and a millimetre sofa will not arrive 25 times too small in an inch based drawing.
For layer names, borrow an existing standard. The United States National CAD Standard, published by the National Institute of Building Sciences and released as Version 7 in September 2025, bundles the AIA CAD Layer Guidelines and the Uniform Drawing System, which is where the A-FURN layer family comes from. Our article on CAD layer standards shows the naming logic in practice, and the same discipline carries over to Revit, covered in AutoCAD vs Revit for students.
If you are starting from nothing, a prepared set beats assembling one file at a time. Our CAD blocks collection covers general plan symbols, and the furniture collection holds seating, beds, tables and storage drawn at consistent weights.
💡 Pro Tip
Keep one master DWG holding every block definition and insert from it through a tool palette, rather than copying blocks between project files. Copy and paste is how a project ends up with three versions of the same chair, all named differently.
Scale Discipline and the Errors That Follow From Losing It
Blocks are drawn once at full size and never rescaled to suit a viewport. Scale belongs to the layout, and text, hatches and dimensions should be annotative so they adapt while the geometry stays true. Scale a sofa by 0.8 to squeeze it into a tight room and the plan stops being measurable.
Two habits catch the damage early. Purge before you issue, so unused definitions do not follow the file around. Then measure a known object on the printed sheet with a scale rule. A mismatch is almost always a rescaled block or a viewport scale changed without updating the label.
Frequently Asked Questions
What are furniture CAD blocks used for?
They are reusable symbols that place beds, seating, tables, storage and appliances in a floor plan without redrawing them. Because each is a single object, you can count, replace or update every instance at once, which matters on plans carrying dozens of identical rooms.
What scale should furniture blocks be drawn at?
Always full size, in real world units. A 1600 mm sofa is drawn 1600 mm long and the scale is applied in the layout viewport. You adjust level of detail for scale, not geometry size, so keep a simpler version of busy blocks for small scale work.
Should furniture be on its own layer?
Yes. Put furniture on a dedicated layer such as A-FURN with a light lineweight, and draw the geometry inside the block on layer 0 with properties set to ByBlock. That lets you switch furniture off for a dimension plan or a fire strategy drawing without touching anything else.
How do I stop blocks from inserting at the wrong size?
Check the drawing units and the block units. A millimetre block inserted into an inch based drawing arrives wrongly scaled unless it carries the right unit assignment, so set that at creation time.
Where to Go From Here
Your Next Step: Open your current studio drawing, pick one furniture block and check three things: true size, geometry on layer 0 with ByBlock properties, and a name that tells you what it is without opening it. Fix that block, then run the same three checks as you rebuild the library.
