Radiant floor heating is a system that warms a space by circulating heat through the floor itself, using either water-filled tubing (hydronic) or electric heating elements installed beneath the surface. Heat rises evenly across the room instead of blowing from vents, which keeps temperatures steady and removes the cold spots common with forced-air systems.
If you have ever stepped onto a warm tile floor on a winter morning, you have felt the basic appeal of this technology. Beyond comfort, radiant floor heating changes how a building distributes warmth, how much energy it loses, and how a room feels at any given thermostat setting. Below is a clear look at how the system works, the two main types, where it makes sense, and what to weigh before choosing it.
How does radiant floor heating work?
Radiant floor heating turns the entire floor into a low-temperature heat emitter. A network of tubing or electric cable runs in or below the floor slab, warming the surface to roughly 75 to 85 degrees Fahrenheit. That heat then transfers to people and objects through infrared radiation, while the warmed floor also drives gentle convection as air near the surface rises.
The U.S. Department of Energy points out that despite the name, these systems lean heavily on convection too, since air warmed by the floor naturally circulates upward through the room. The result is a temperature profile that feels warm at foot level and slightly cooler near the ceiling, which is close to the comfort range most people prefer. A standard forced-air system does the opposite, pushing hot air up where it stratifies and wastes energy.
Because the heated surface is so large, the water or element never needs to get very hot. A hydronic floor often runs on water around 100 to 120 degrees Fahrenheit, far cooler than the 160 to 180 degrees a traditional radiator needs. Lower operating temperatures are part of why radiant systems pair well with heat pumps and condensing boilers, both of which work more efficiently at lower supply temperatures.
📌 Did You Know?
Floor heating is far from new. According to the overview of underfloor heating, the Romans scaled up heated floors with the hypocaust system around 500 BC, channeling hot flue gases beneath raised floors, while the Korean ondol used a similar principle that shaped traditional home design for centuries.
The two main types of radiant floor heating
Almost every modern installation falls into one of two categories: hydronic systems that move heated water, or electric systems that warm resistance cables. A third type, air-heated floors, exists but is rarely used in homes because air holds so little heat. The choice between hydronic and electric usually comes down to project size, fuel cost, and whether the floor is new construction or a retrofit.
Hydronic (water-based) systems

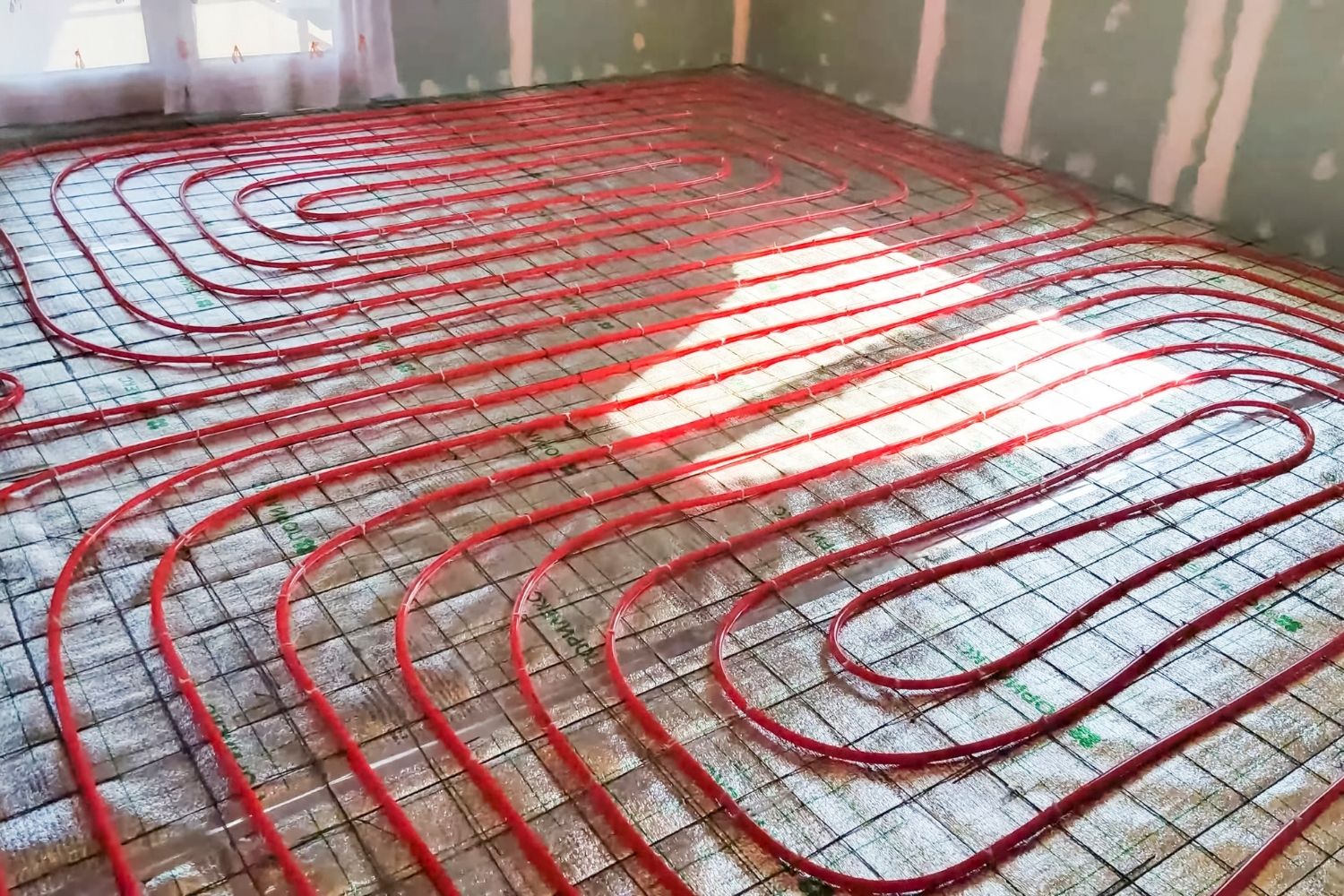

Hydronic radiant heating circulates warm water through flexible PEX tubing laid in loops across the floor. A boiler, heat pump, or water heater supplies the warm water, and a manifold with pumps and valves controls flow to each zone. This is the most common choice for whole-house heating and for cold climates, since water carries heat efficiently and the running costs stay low once the system is installed.
The tubing is usually embedded in a concrete slab during construction, a method called a wet installation, or clipped into grooved panels above a subfloor in a dry installation. Wet systems store a large amount of heat in the slab, which smooths out temperature swings but responds slowly to thermostat changes.
Electric systems
Electric radiant floors use thin heating mats or cables connected directly to the building's power supply. They heat up quickly and are simple to install under tile, which makes them a popular pick for single rooms such as bathrooms, kitchens, and additions. The trade-off is operating cost: electricity is generally a more expensive heat source than gas or a heat pump, so electric floors are best for spot heating rather than warming an entire house.
🎓 Expert Insight
"Clients are often surprised that a radiant floor feels warmer than a forced-air room at the same thermostat reading. The reason is mean radiant temperature, the system warms the surfaces around you, not just the air." Licensed mechanical engineer with 15+ years in residential HVAC
This observation matches the thermal comfort principles set by ASHRAE, whose technical committee on radiant heating and cooling treats radiant temperature and air temperature as separate factors in how warm a space feels.
Hydronic vs electric: a side-by-side comparison
The table below summarizes the practical differences between the two systems to help match each one to the right project.
| Factor | Hydronic (Water) | Electric |
|---|---|---|
| Best use | Whole-house, new builds | Single rooms, retrofits |
| Heat source | Boiler, heat pump, water heater | Building electrical supply |
| Running cost | Lower over time | Higher per unit of heat |
| Install cost | Higher, more components | Lower, simpler layout |
| Response time | Slow (thermal mass) | Fast warm-up |
| Cooling capable | Yes, with proper design | No, heating only |
Why choose radiant floor heating?
The strongest argument for radiant floors is even comfort with fewer drafts. Heat enters the room from a broad surface at low temperature, so you avoid the hot blasts and cold returns of ducted air. There is no fan noise, no blown dust, and no bulky radiators or vents taking up wall space, which gives designers full freedom to place furniture and finishes.
Efficiency is the second draw. Forced-air systems lose heat through their ductwork before it ever reaches the room. ENERGY STAR reports that about 20 to 30 percent of the air moving through a typical duct system is lost to leaks, holes, and poor connections. Radiant systems have no ducts, so that source of loss disappears entirely, and the low supply temperatures let high-efficiency heat sources run at their best.
🏗️ Real-World Example
Frank Lloyd Wright Usonian homes (United States, 1937): Wright embedded hot-water piping in the concrete floor slabs of his first Usonian house, the Jacobs House in Madison, Wisconsin. He called it "gravity heat" and used it to keep low-cost, open-plan homes warm without radiators, an approach the Wikipedia history of underfloor heating credits as a milestone for modern residential radiant systems.
Radiant floors also support healthier air. Without a blower constantly recirculating the room, fewer airborne particles get stirred up, which can matter for allergy-prone households. Some hydronic designs can even run chilled water in summer to cool the slab, giving a single system year-round use, though this requires careful humidity control to avoid condensation.
What to consider before installing
Radiant floor heating rewards good planning more than almost any other heating choice. The single biggest cost factor is whether you are building new or retrofitting. Embedding tubing in a fresh slab is straightforward, while tearing up existing floors to add a wet system is disruptive and expensive. For retrofits, low-profile dry panels or electric mats under new tile are usually the practical route.
Floor covering matters more than people expect. Tile and stone conduct heat well and let the system reach the room quickly. Thick carpet and dense rugs act as insulation and can choke the heat output, forcing higher water temperatures and erasing some efficiency gains. Insulation beneath the heated layer is equally important, since heat that escapes downward is heat you paid for and never feel.
⚠️ Common Mistake to Avoid
A frequent error is treating a radiant slab like a forced-air system and turning the thermostat up and down through the day. A thick concrete slab can take hours to respond, so aggressive setbacks waste energy reheating the mass. Set a steady temperature and let the thermal mass hold it, or use a thermostat designed for radiant lag.
Response time shapes how you live with the system. Heavy slabs hold warmth for hours but react slowly, which suits homes with predictable schedules. Lightweight electric mats heat fast and suit rooms used on demand. Matching the system's thermal behavior to your routine prevents both cold mornings and overheated afternoons.
Zoning is another decision that pays off later. Splitting a house into separate loops, each with its own thermostat, lets you keep bedrooms cooler than living areas and avoids heating rooms nobody uses. A hydronic manifold makes this straightforward, while electric systems need a separate circuit and thermostat per zone. Plan the zones during design, since adding them after the floor is poured is rarely practical.
Finally, think about pairing. A radiant floor reaches its potential when the heat source also runs at low temperature. An air-to-water heat pump or a condensing boiler both deliver more output per unit of fuel when they supply water at 100 to 120 degrees rather than radiator-grade heat, so the floor and the source reinforce each other.
How much does radiant floor heating cost?
Costs vary widely by region, system type, and whether the work is new construction or a retrofit, so treat any figure as a starting estimate. Electric mats for a small bathroom sit at the low end because the materials are simple and the area is small. A full hydronic system for a whole house carries a higher upfront price due to the boiler or heat pump, manifolds, pumps, and labor to lay tubing across every room.
The payback comes through running costs and durability. Hydronic tubing embedded in concrete can last for decades with no moving parts in the floor, and the lower operating temperatures trim energy bills compared with high-temperature systems. Electric floors cost less to install but more to run, so they make financial sense as targeted comfort heating rather than a primary whole-home source.
Cost figures are approximate and vary by region, material supplier, and project scope.
Frequently asked questions
Is radiant floor heating expensive to run?
It depends on the type. Hydronic systems paired with a gas boiler or heat pump are usually economical to run because they use low water temperatures and lose no heat to ducts. Electric floors cost more per unit of heat, so they are most affordable as spot heating for one or two rooms rather than an entire house.
Can radiant floor heating heat a whole house?
Yes. Hydronic radiant heating is regularly used as the sole heat source for entire homes, especially in cold climates. It works best when the building is well insulated and the floor coverings conduct heat efficiently. Electric systems are generally reserved for individual rooms because of higher running costs.
What flooring works best with radiant heat?
Tile, stone, and polished concrete are the top performers because they conduct and store heat well. Engineered wood and laminate rated for radiant use also work. Thick carpet and dense underlay insulate the floor and reduce output, so they should be kept thin or avoided over heated zones.
How long does radiant floor heating last?
The buried components are durable. Hydronic PEX tubing and electric cable embedded in concrete commonly last 30 years or more because nothing moves or wears inside the floor. The boiler, heat pump, or manifold components have shorter service lives and are the parts most likely to need replacement over time.
The Bigger Picture
Radiant floor heating is one of the oldest ideas in building comfort, yet it fits the direction modern design is heading: lower water temperatures, quieter homes, and heat sources like heat pumps that reward efficiency. The question worth asking is not whether warm floors feel good, but whether your building envelope is tight enough to let a low-temperature system do its job well.
