A rainscreen cladding system is a multi-layer exterior wall assembly where an outer cladding panel sits in front of a ventilated and drained air cavity, separated from a weather-resistant barrier on the structure behind it. The outer skin sheds most rain, while the cavity drains and dries any moisture that gets past it.

Most water problems in modern walls do not come from a single dramatic leak. They come from small, repeated amounts of moisture that have nowhere to go. A rainscreen cladding system answers that problem by accepting that the outer panel will never be perfectly watertight, then giving any water that sneaks behind it a clear path back outside. The result is a wall that manages rain instead of trying to block it completely. The sections below break down how the system works, what each layer does, the main types you will see specified, and where the approach makes the most sense.

How does a rainscreen cladding system work?

A rainscreen cladding system works on a simple idea: separate the job of looking good from the job of staying dry. The visible cladding handles weather exposure and appearance, but it is not the last line of defense. Behind it, an air gap and a continuous water-resistant barrier do the real protective work.

When wind drives rain at a building, a portion of that water passes through joints, fastener holes, and gaps in any cladding, no matter how it is detailed. In a face-sealed wall, that water is trapped against the sheathing and slowly causes rot, corrosion, and mold. In a rainscreen wall, the same water hits the drainage plane, runs down it, and exits through weep openings at the base. The cavity also lets air move across the back of the cladding, so trapped vapor dries out before it causes damage.

Building scientists describe rain control through what they call the three D's: deflection, drainage, and drying. According to Building Science Corporation's Building Science Digest BSD-013 on rain control in buildings, overhangs and peaked roofs alone reduce rain deposition on walls by roughly 50 percent. A rainscreen handles the rest by drainage and drying rather than relying on a perfect seal that field conditions rarely deliver.

The pressure side of this matters more than most people expect. Wind does not just throw water at a wall, it creates a pressure difference across the cladding that pulls water through any opening. A small gap that would shed a vertical drip in calm weather becomes an entry point under a gusting storm. The cavity behind the cladding is what neutralizes that effect, either by draining the water that gets pushed in or, in better systems, by balancing the pressure so the push never happens. That is why a wall can pass a static water test and still leak in real wind unless the cavity and venting are designed for it.

The layers of a rainscreen wall assembly

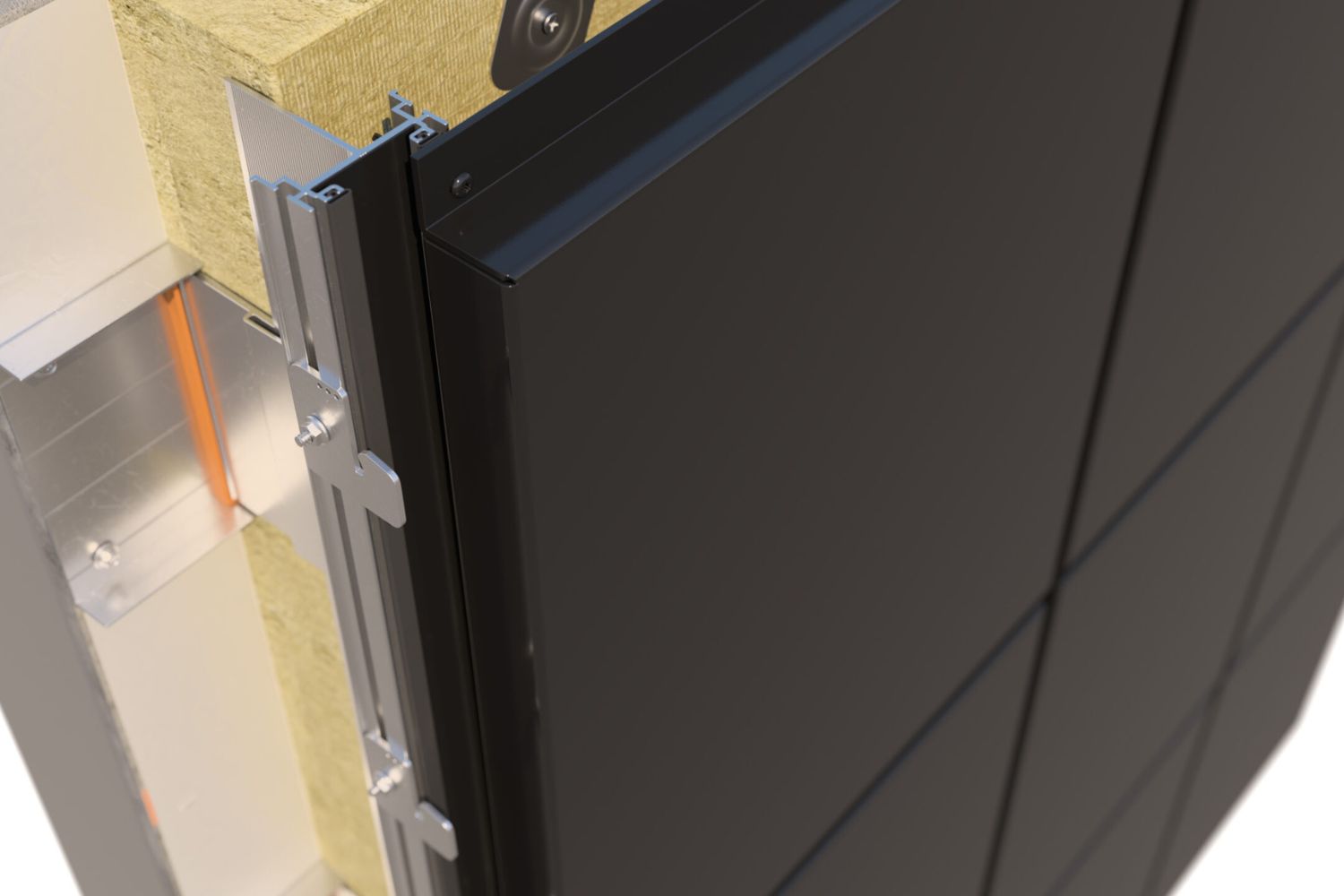

From the inside out, a rainscreen cladding system stacks several layers, each with a defined role. Understanding the sequence matters because skipping or reversing a layer is where most failures begin.

• Structural wall: the load-bearing backup, usually concrete, masonry, or a steel or timber stud frame with sheathing.
• Continuous insulation: rigid board mounted on the exterior face to reduce thermal bridging through framing.
• Water-resistive barrier (WRB): the actual drainage plane, often a membrane or building wrap, that stops bulk water and sheds it downward.
• Air cavity: the ventilated gap, held open by furring strips, brackets, or rails, that drains and dries.
• Cladding: the visible outer panel, which can be fiber cement, metal, terracotta, stone, brick, or treated timber.

The cavity is created by a support system, commonly vertical timber battens, aluminum hat tracks, or adjustable bracket-and-rail subframes for heavier panels. These supports also carry the cladding loads back to the structure and let installers correct for an uneven wall. Flashing at the base, head, and every opening ties the WRB and the cavity together so water always drains to the outside.

Order is everything in this stack. The insulation goes outside the structure precisely so the dew point sits in the rigid board rather than inside the stud bay, where condensation would do harm. The WRB has to be continuous and properly lapped, with each upper sheet over the one below, so gravity always carries water away from the wall. Insect screens or perforated trim at the cavity openings keep pests and debris out without choking off airflow. Miss any one of these and the others cannot fully compensate, which is why the sequence is treated as a system rather than a list of optional parts.

Types of rainscreen systems

Not every rainscreen behaves the same way. The differences come down to how the cavity manages air pressure and how openly it ventilates. The three categories you will see specified are drained and back-ventilated, simple drained-and-vented, and pressure-equalized.

A drained and back-ventilated (D/BV) system relies on the cavity to both shed water and dry residual moisture through modest airflow. A pressure-equalized rainscreen (PER) goes further by compartmentalizing the cavity and adding vent openings sized so the air pressure behind the cladding matches the pressure in front of it. When pressures match, wind cannot push water through the joints in the first place. The National Research Council of Canada, in its technical paper on pressure equalization in rainscreen wall systems, notes that if the cavity pressure drops below the exterior pressure, rain is actively driven inward, which is exactly what compartment venting prevents.

Comparison of common rainscreen types

The table below summarizes how the main rainscreen approaches differ in practice.

System Type	How It Controls Water	Cavity Detail	Best Suited For
Drained and back-ventilated	Drains water down the WRB, dries with light airflow	Open at top and bottom, around 10 mm	Most low to mid-rise commercial and residential walls
Drained and vented	Prioritizes drainage with vented base openings	Weep openings at base, limited top venting	Masonry veneer and brick cavity walls
Pressure-equalized	Matches cavity and exterior pressure to stop water entry	Compartmentalized with sized vents and airtight backing	Tall buildings and high-wind, high-exposure sites

In practice, true pressure equalization is hard to achieve perfectly across an entire facade, so many engineers design for pressure moderation, a partial version that still cuts the driving force on water without the cost of full compartmentalization. The right choice depends on building height, local wind loads, and how much rain the climate throws at the wall.

What materials are used for rainscreen cladding?

The cladding layer is where design intent shows, and the material range is wide. Fiber cement panels are popular for their fire resistance and low maintenance. Metal cladding in aluminum, zinc, or weathering steel gives sharp lines and long service life. Terracotta and natural stone bring depth and texture, while engineered or thermally modified timber offers warmth where combustibility rules allow it.

Because the panel is decoupled from the waterproofing layer, designers get more freedom in joint width, panel size, and surface pattern than a face-sealed wall would permit. The open joints that make rainscreens read as crisp, gridded facades are a direct result of the system accepting some water passage by design. If you work on the rendering side, getting these panel joints, reveals, and material weathering right is what separates a believable facade from a flat one, and our guide on the lighting and material mistakes that make renders look fake covers how to handle those surface details.

ArchDaily's overview of facade cladding systems in modern architecture shows how metal rainscreen panels are cut and patterned on real projects, from convention centers to office towers, where the same drainage logic supports very different visual results.

Why use a rainscreen cladding system?

The main reason is durability. By keeping the structure dry and ventilated, a rainscreen extends the life of the sheathing, framing, and insulation. It also improves thermal performance when paired with continuous exterior insulation, because the cavity breaks the path for heat-driven moisture and the insulation reduces thermal bridging through studs.

The principle is not new. G.K. Garden set it out for the National Research Council of Canada back in 1963 in the Canadian Building Digest CBD-40, Rain Penetration and its Control, arguing that controlling the forces that move water is more reliable than trying to seal every joint. That thinking now underpins wall design in wet climates, and in some regions, such as coastal British Columbia, drained rainscreen walls are effectively required by code for new construction.

There are tradeoffs. A rainscreen adds material layers, cavity supports, and detailing labor, so it costs more upfront than a basic clad wall. The payoff comes in reduced moisture-related repairs and a longer-lasting envelope, which is why the approach has become standard on serious commercial and high-exposure residential projects rather than a premium option.

Technical specifications, cavity sizing, and fire compliance should be verified by a licensed professional for your specific project and local building code.

What This Means for Your Next Project

A rainscreen cladding system is less a product than a strategy: let the outer skin take the weather, give water a way out, and let the wall breathe. Once you see a facade that way, the layers stop looking like extra cost and start looking like insurance for everything behind them.

Your Next Step: Before you lock in a cladding choice, trace the full water path on a wall section drawing, from the panel face down to the weep openings, and confirm every flashing drains in front of the drainage plane rather than behind it.

Frequently Asked Questions

Is a rainscreen the same as siding?

No. Standard siding is usually fastened directly to the sheathing with little or no drainage gap, so trapped water sits against the structure. A rainscreen holds the cladding off the wall with a ventilated cavity and a separate water-resistive barrier, which is what lets the assembly drain and dry.

How big does the rainscreen cavity need to be?

It depends on the system. Drained and back-ventilated walls often use a gap of around 10 mm, while assemblies that depend more on ventilation drying may use 19 to 25 mm. The key requirement is that the cavity stays continuous and open at the top and bottom so air can move and water can exit.

Does a rainscreen need an air barrier?

The water-resistive barrier on the structure should be continuous, and in pressure-equalized designs it also needs to act as an airtight backing so the cavity can equalize pressure. Without an airtight inner layer, wind can drive water through cladding joints, which defeats the pressure-moderation benefit.
