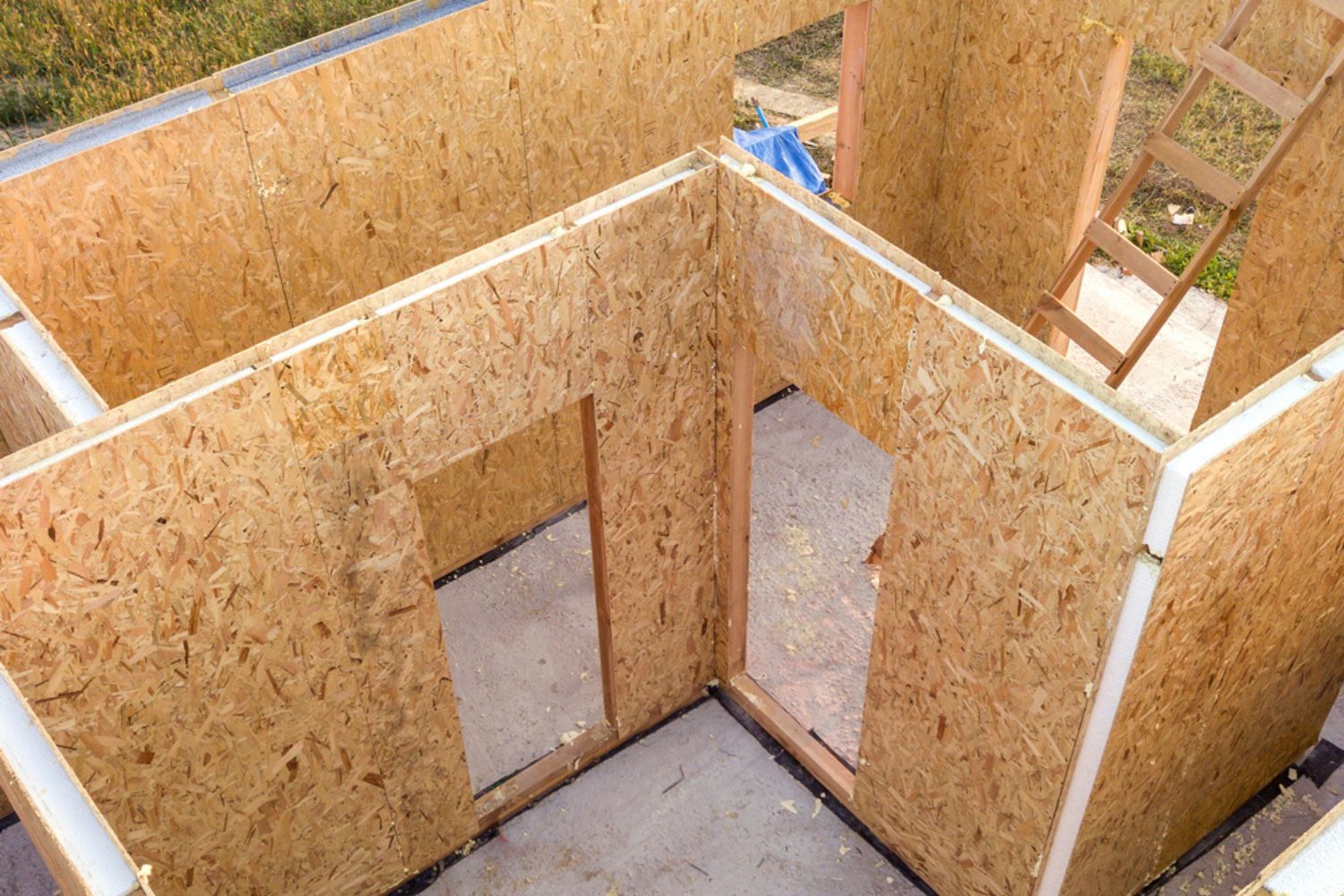

A structural insulated panel (SIP) is a load-bearing building component made of a rigid foam insulation core bonded between two structural skins, usually oriented strand board (OSB). According to the U.S. Department of Energy, SIPs replace studs, sheathing, and insulation in one factory-made panel for walls, floors, and roofs.
For architects and builders weighing how a wall actually performs once it leaves the drawing, the SIP question comes up fast. The panel does three jobs at once that a conventional stick wall splits across separate trades and materials. That single change affects framing speed, air tightness, thermal performance, and how you detail openings. Below is a clear look at what these panels are, how they are built, where they make sense, and the trade-offs worth knowing before you specify them.
What is a structural insulated panel made of?
A structural insulated panel is a sandwich. The two outer faces carry load and resist racking, and the foam core in the middle provides both insulation and the shear connection that lets the whole assembly act as one structural unit. Each face is glued to the core under pressure in a factory, so the bond is continuous across the entire panel rather than fastened at intervals.
The facing material is almost always OSB, though some manufacturers offer fiber cement, magnesium oxide board, or metal skins for specific fire or moisture conditions. The core sets much of the performance. Expanded polystyrene (EPS) is the most common because it balances cost and R-value. Extruded polystyrene (XPS) and polyurethane or polyisocyanurate cores deliver a higher R-value per inch when wall thickness is tight.
The Department of Energy notes that a SIP typically uses a foam core between 4 and 8 inches thick sandwiched between two sheets of OSB. That thickness, combined with the continuous core, is why the panels behave so differently from a framed wall full of studs.
Core choice maps directly to project priorities. EPS is the workhorse for residential walls where wall depth is not a constraint and budget matters. Polyurethane and polyiso cores pack more insulating value into a thinner panel, which helps on roofs or where floor area is tight and every inch of wall depth counts. Some sustainable variants use a straw-based core instead of foam, though the DOE points out that straw cores are heavier and less efficient than the foam options.
How are SIPs manufactured and sized?
Panels are pressed in a factory, where adhesive is applied to both skins and the core, then cured under pressure so the bond develops evenly across the full face. That controlled setting is what lets the finished panel act as a single composite rather than three loose layers. Once cured, computer-driven cutting tools shape the openings, bevels, and service chases from the project drawings.
Standard panels run up to about 8 by 24 feet, large enough to close in a full wall section in one set. Larger panels mean fewer joints, and fewer joints mean fewer places to seal and fewer paths for air to move. The trade-off is handling: big panels often call for a small crane or lift rather than hand-setting, which has to be planned into the site logistics.
🎓 Expert Insight
"SIPs complete a building envelope in 3 steps versus traditional assemblies requiring 7 to 12 products.", from the Architizer product guide on SIPs
That consolidation is the core idea behind the panel. Fewer layers and fewer interfaces mean fewer chances for gaps, thermal bridges, and on-site errors.
How does a SIP work structurally?
The panel works on the same principle as a steel I-beam. In an I-beam, the flanges resist bending while the web holds them apart and transfers shear. In a SIP, the OSB skins act like the flanges and the foam core acts like the web. Because the skins are continuously bonded to the core, the panel resists axial loads from the roof above and lateral loads from wind without a separate stud frame inside it.
This is why SIP walls can carry roof and floor loads directly. Splines, dimensional lumber, or engineered lumber connect panels at the joints, and headers handle larger openings. The result is a wall that doubles as its own insulation and its own sheathing, with far less framing taking up space inside the assembly.
The composite action also gives SIPs strong racking resistance, which matters for lateral loads from wind and seismic events. Because the full face of OSB is bonded down rather than nailed at the edges, the skin resists in-plane shear across its whole area. That can simplify the lateral design of a small building, though larger or more complex structures still need an engineer to confirm load paths, hold-downs, and connections at the foundation.
That reduction in framing is measurable. The Department of Energy's Building America Solution Center reports that framing makes up only 8.7 percent of a SIP wall, compared with about 25 percent in conventional construction and 14 percent in advanced framing. Less wood crossing the wall means fewer thermal bridges letting heat escape.
Why are SIPs more energy efficient than stick framing?
Two things drive the energy difference: continuous insulation and air tightness. A conventional wall loses heat through every stud because wood conducts heat far better than insulation does. Those repeated studs create thermal bridges that drag down the real-world performance of the wall, so a nominal R-13 batt wall often performs closer to R-9 once the framing is accounted for.
A SIP has almost no thermal bridging across the field of the panel because the foam runs unbroken from skin to skin. The Department of Energy reports that properly installed SIPs deliver energy savings of 12 to 14 percent compared with stud-framed construction. The panels are also far less prone to air leakage at the field, since each face is one continuous board rather than dozens of separate pieces.
📌 Did You Know?
Oak Ridge National Laboratory testing cited by the Structural Insulated Panel Association found that a 3.5-inch SIP wall reached a whole-wall R-value of 14.09, against 9.58 for a comparable 2x4 stick-framed wall. The gap comes almost entirely from eliminating thermal bridges through the studs.
Whole-wall R-value versus nominal R-value
The number printed on a bag of insulation describes only the insulation, not the wall. Whole-wall R-value accounts for studs, plates, headers, and corners, which is what you actually live behind. Because a SIP has so little framing interrupting the core, its whole-wall figure stays close to its nominal rating instead of dropping well below it.
SIPs vs traditional stick framing: a side-by-side look
Both methods build sound, code-compliant homes, and the right choice depends on budget, climate, crew skill, and schedule. The table below compares the two on the factors that usually decide the call.
Comparison of SIPs vs Stick Framing
| Factor | SIPs | Stick Framing |
|---|---|---|
| Framing in the wall | About 8.7% (DOE) | About 25% (DOE) |
| Whole-wall R-value (3.5 in) | 14.09 (ORNL) | 9.58 (ORNL) |
| Energy use vs stick | 12 to 14% lower (DOE) | Baseline |
| On-site assembly speed | Faster, panels arrive pre-cut | Slower, built piece by piece |
| Upfront material cost | Higher per panel | Lower per stud and sheet |
| Design flexibility on site | Locked in at order stage | Easy to change during build |
Where are SIPs used in real buildings?
SIPs suit walls, roofs, and floors, and they perform best where a clean, high-performance envelope matters more than on-the-fly changes. They are common in passive and net-zero homes, agricultural and cold-storage buildings, and modular or prefabricated housing. Because a roof panel can span between supports, SIPs also make open cathedral ceilings straightforward without a separate insulated rafter assembly.
Factory cutting is what changes the rhythm of the job. Window and door openings, electrical chases, and panel edges arrive ready to set, so crews assemble rather than build from scratch. Panels can reach roughly 8 by 24 feet, which means a single lift can close in a large section of wall.
🏗️ Real-World Example
SIP Panel House (Chile, 2012): Architects Alejandro Soffia and Gabriel Rudolphy used 71 wall panels and 40 split-level panels to assemble the house in roughly 10 days, a build pace that documented how quickly a panelized envelope can close in once the components arrive on site.
What are the limits and trade-offs of SIPs?
The same air tightness that saves energy also changes how the building has to breathe. A tightly sealed SIP house usually needs controlled mechanical ventilation, such as a heat-recovery or energy-recovery ventilator, to manage moisture and indoor air quality and to meet many building codes. Skipping that step can trap humidity inside the envelope.
Cost and rigidity are the other trade-offs. Panels carry a higher upfront price than loose lumber and insulation, though faster assembly and lower energy bills can offset part of that over time. Because openings and routing are cut at the factory, late design changes are harder and more costly than on a stick-framed site. Foundations also need to be more accurate, since a panel system has less tolerance for an out-of-level slab than framing does.
Pests and moisture deserve attention too. The OSB skins and any wood splines are organic, so untreated panels in contact with damp ground or standing water can attract insects or rot at the edges. Good detailing keeps the panel off the slab on a treated bottom plate, manages bulk water with proper flashing, and protects the foam from prolonged solvent or UV exposure during the open phase of construction. None of these are deal-breakers, but they reward a builder who treats the panel as a system rather than a product dropped into a conventional detail set.
Fire and code paths are well established. Foam cores are combustible, so codes generally require an interior thermal barrier such as half-inch gypsum board over the panel, and manufacturers publish tested assemblies for the ratings a project needs. Specifying from a manufacturer's evaluated assemblies, rather than improvising a detail, is the cleanest way through plan review.
💡 Pro Tip
Finalize electrical and plumbing runs before the panel order goes out, not after. Chases are cut into the foam at the factory, so a routing change caught on site means field-cutting the core, which weakens the panel and breaks the air seal you paid for. A coordinated services drawing at order stage avoids almost every common SIP rework.
Air sealing is where SIP performance is won or lost
The panels perform at the field, but the seams decide the outcome. Every joint between panels and every connection at the sill, ridge, and openings has to be sealed with the right gasket, sealant, and tape system the manufacturer specifies. The Building America Solution Center notes that careful sealing at all panel seams can require thousands of linear feet of sealant in a modest home, which is exactly why the envelope can outperform a stick wall when the detailing is followed.
Technical specifications and energy figures should be verified by a licensed professional for your specific project and local building code.
SIPs are not the answer for every project, and a skilled crew can build a tight, efficient stick wall when the detailing is disciplined. What the panel offers is a way to get that performance more consistently, with less framing, fewer interfaces, and a faster close-in. For a designer chasing low energy use without a fragile, error-prone wall section, that consistency is often the real reason to specify them. The question to carry into the next project is less whether SIPs work and more whether your schedule, budget, and design freedom line up with a system that rewards decisions made early.
