A Trombe wall is a thick, sun facing wall of masonry or water containers set directly behind a pane of glass. It absorbs solar radiation during the day, stores the energy in its mass, and releases the heat into the building after sunset. Because it needs no pumps, fans, or electricity, it counts as a passive solar heating system.
The concept looks almost too simple: a dark wall, a sheet of glass, and a narrow air gap between them. Yet that assembly can carry a meaningful share of a building's winter heating load, which is why the Trombe wall keeps reappearing in energy codes, sustainability coursework, and low energy building case studies more than half a century after it was first built.
This article breaks down how the system works, where it came from, the main variations you will encounter, and the design rules that separate a wall that performs from a wall that just looks interesting in section drawings.
How Does a Trombe Wall Work?
A Trombe wall works through the greenhouse effect and time lag. Short wave solar radiation passes through the glazing and strikes the dark outer surface of the wall, where it converts to heat. The glass traps that heat in the air gap, the masonry absorbs it, and conduction moves it slowly toward the interior face, which then warms the room by radiation and gentle convection.
Four layers do the work:
- Glazing: a single or double pane of glass or polycarbonate mounted in front of the wall. It admits sunlight and blocks the long wave radiation trying to escape back out.
- Air gap: a cavity between glass and wall, commonly a few centimeters up to about 10 centimeters. The Odeillo prototype documented on the Trombe wall entry on Wikipedia used a gap of roughly 10 centimeters behind the glass.
- Absorber surface: the outer face of the mass wall, painted dark or coated with a selective finish so it soaks up as much radiation as possible.
- Thermal mass: the wall itself, usually concrete, brick, stone, adobe, or water filled containers. Its heat capacity is what shifts warmth from noon to night.
The delay between absorption and delivery is the whole point. Heat crawls through dense masonry over several hours, so energy collected at midday arrives at the interior surface in the evening, exactly when outdoor temperatures drop and the building needs it. ArchDaily's explainer How Does a Trombe Wall Work? illustrates this cycle with clear section diagrams if you want a visual reference.
🎓 Expert Insight
"Solar heating first developed in the 1920s, when European architects began experimenting with passive solar methods in mass housing." Lilly Cao, ArchDaily (2023)
Her point matters because the Trombe wall did not appear out of nowhere. It refined decades of European experiments with orientation and mass into a single, repeatable wall assembly.
From Morse's Patent to the Odeillo Houses

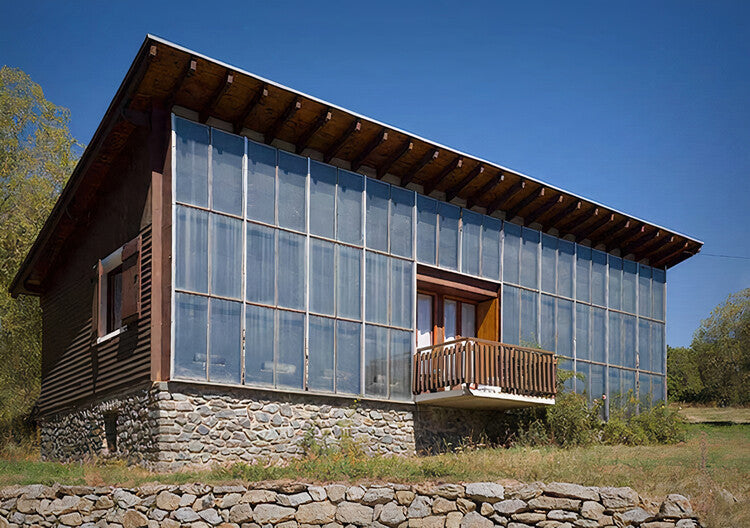

The system carries the name of French engineer Felix Trombe, who spent much of his career on passively heated and cooled solar structures. The first full scale application came in 1967, when Trombe and architect Jacques Michel built a house in Odeillo, in the French Pyrenees, with a south facade of dark concrete roughly 60 centimeters thick behind glass. According to Wikipedia, solar energy covered about 70 percent of the annual heating needs of the Odeillo house, performance that rivaled far more complicated active systems of the era.
Odeillo turned a physics demonstration into an architectural detail. Through the 1970s energy crisis the Trombe wall spread across owner built solar homes in the American Southwest, and by the 2000s it had matured into a component that national laboratories were specifying in public buildings.
📌 Did You Know?
The idea predates its name by nearly a century. American professor Edward S. Morse devised and patented a glazed, heat storing wall system in the 1880s, long before the Odeillo houses made the approach famous. Trombe's contribution was proving the concept at building scale and pairing it with modern concrete construction.
Main Types of Trombe Walls
Designers have adapted the basic assembly to different climates and programs. The four variations below cover most of what you will see in practice.
Comparison of Trombe Wall Variations
The following table summarizes how each type differs and where it fits best:
| Type | How It Differs | Best Suited For |
|---|---|---|
| Classic (unvented) | Solid mass behind glazing, heat moves by conduction only | Cold, sunny climates needing steady evening heat |
| Vented | Top and bottom vents let warm cavity air circulate into the room | Spaces that also need warmth during the day |
| Water wall | Water containers replace masonry, storing more heat per volume | Retrofits and lighter structures with limited floor loading |
| Composite | Adds an insulation layer and controlled air channels behind the mass | Mixed climates where overheating and heat loss both matter |
Vented versions behave partly like an air heater, using the same buoyancy principle that drives stack ventilation. If that mechanism interests you, our comparison of natural and mechanical ventilation covers how designers put thermal buoyancy to work at room and building scale.
💡 Pro Tip
If you specify a vented Trombe wall, detail the vents with backdraft dampers or operable covers. At night the loop reverses: room air cools against the glass and sinks, quietly draining the heat you collected all day. Many underperforming Trombe walls trace back to this one missing detail.
Where Does a Trombe Wall Make Sense?
Trombe walls perform best in climates with cold nights and reliably sunny winter days, such as high deserts, mountain regions, and dry continental zones. A large diurnal temperature swing lets the wall charge fully by day and discharge usefully at night. Overcast maritime winters give the wall little to store, and hot humid climates rarely need the stored heat at all.
Orientation is not negotiable. The glazed wall must face the equator, meaning south in the northern hemisphere, and it should see direct sun through the middle of the day in winter. A fixed overhang or deciduous planting then shades the glass in summer, when the high sun would otherwise turn the cavity into an oven.
🏗️ Real-World Example
Zion National Park Visitor Center (Utah, 2000): The National Renewable Energy Laboratory helped design this public building around daylighting, cooltowers, and a south facing Trombe wall. NREL's follow up study (Torcellini and Pless, 2004) reported that the Trombe wall alone supplied about 20 percent of the building's annual heating.
The Zion project is worth studying because it treated the Trombe wall as one instrument in an orchestra rather than a solo act. The full findings appear in the NREL conference paper Trombe Walls in Low-Energy Buildings: Practical Experiences, published through the U.S. Department of Energy's OSTI archive.
Advantages and Limitations
On the plus side, a Trombe wall has no moving parts, consumes no energy to run, and lasts as long as the structure itself. It delivers radiant warmth, which most occupants find more comfortable than blown air, and it buffers indoor temperature swings even on days when it collects little sun. Construction relies on ordinary trades: masonry, glazing, and paint.
The limitations are just as concrete. The wall occupies prime equator facing facade that could otherwise hold view windows. Performance depends entirely on winter sun, so a week of overcast weather leaves it inert. Poorly detailed walls lose heat outward through the glass at night, and in summer an unshaded cavity can overheat the interior. The mass also adds significant structural load, which matters in retrofit work. Dense material is essential here; lightweight products like autoclaved aerated concrete insulate well precisely because they lack the heat storing density a Trombe wall depends on.
Design Guidelines That Actually Matter
Passive solar guidance published by the U.S. Department of Energy, including its Energy Saver consumer guide to passive solar home design (2021), breaks every system into five elements: aperture, absorber, thermal mass, heat distribution, and control. A Trombe wall packs all five into a single assembly, so each layer deserves a deliberate decision.
- Size the mass to the lag you want. Masonry in the range of 20 to 40 centimeters is the common band; thinner walls deliver heat too early, thicker walls may never deliver it at all.
- Choose the absorber finish carefully. Matte black paint works, while selective surfaces cut radiant losses back through the glass.
- Match the glazing to the climate. Double glazing or coated glass reduces night losses in cold regions. Our breakdown of low-e glass versus standard glass explains the coatings involved.
- Design the control layer from day one. Overhangs, exterior blinds, or vent dampers keep summer performance in check.
- Insulate everything except the collector face. Heat should have exactly one preferred path: inward.
Technical specifications given here are general guidance and should be verified by a licensed professional for your specific project and climate.
The Bigger Picture
A Trombe wall is really a lesson in letting physics do the engineering. Before reaching for mechanical systems, it asks what orientation, mass, and glass can accomplish on their own, and the answer is often a fifth of the heating bill. For students building a design vocabulary around climate, it pairs naturally with the broader toolkit in our guide to sustainable architecture strategies for students. The wall that Trombe and Michel glazed in 1967 still teaches the same quiet argument: the cheapest kilowatt is the one your building never has to buy.
