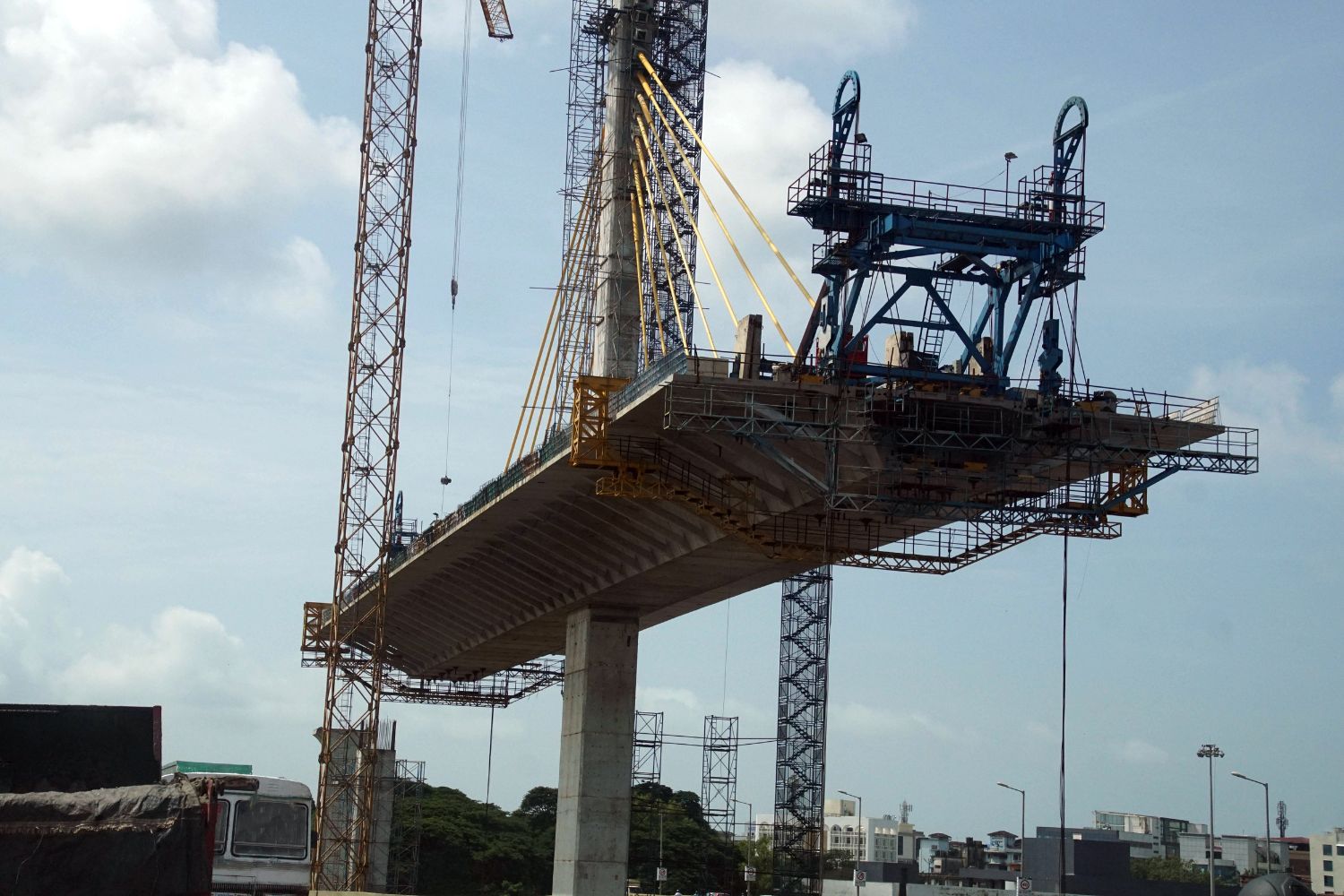

A cantilever in architecture is a rigid structural element, such as a beam, slab, or truss, that is anchored at only one end and projects horizontally into open space. The fixed end resists all the load, which lets buildings carry balconies, canopies, and even whole floors with no columns underneath.
That single idea, support on one side only, has produced some of the most memorable structures ever built. It puts concrete terraces over a Pennsylvania waterfall, holds stadium roofs above tens of thousands of seats, and gives modern houses their floating upper floors.
This breakdown covers how the principle works, where it came from, the buildings that made it famous, and the very real limits engineers run into when a design leans out too far.
How Does a Cantilever Work?
A cantilever works by transferring every load it carries back to a single fixed support. Push down on the free end of a diving board and the clamped end fights back with an equal and opposite reaction. In a building, that clamped end is a wall, a core, a column connection, or a beam continuing back into the structure.
Two internal forces do the heavy lifting. The top of a loaded cantilever stretches in tension while the bottom squeezes in compression, and together they resist the bending moment that tries to rotate the element downward. Because the moment grows with the square of the projection length, doubling the reach roughly quadruples the bending demand at the support. That simple math is why dramatic cantilevers get expensive quickly.
Most projecting floors are balanced by a back span, the hidden portion of the beam or slab that runs back into the building and is held down by the structure above it. The visible drama out front depends entirely on anchorage you never see. Steel framing manuals treat this as a system of its own; the American Institute of Steel Construction's Engineering Journal paper on cantilever beam framing systems (Hemstad, 1999) describes how cantilevered girders with suspended spans can actually use less steel than simple beams when proportioned well.
A Short History of the Cantilever
Builders projected structure long before anyone ran the numbers. Traditional Chinese and Japanese temples used stacked timber bracket sets, called dougong, to push deep eaves far beyond their columns. Medieval European towns did something similar with jettied upper floors that overhung the street to steal floor area.
The cantilever became an engineering discipline in the nineteenth century, and its coming-out party was the Forth Bridge near Edinburgh. Completed in 1889 and opened in 1890, it carried rail traffic on three double cantilevers with two 1,700 ft suspended spans between them, the longest in the world at the time, using around 53,000 tonnes of steel according to Network Rail's history of the Forth Bridge.
📌 Did You Know?
In 1887, Forth Bridge engineer Benjamin Baker explained the cantilever principle with a living model. Two men sat on chairs holding wooden sticks, and a colleague sat on a plank suspended between them. The seated men acted as the cantilever towers, their arms and the sticks as the projecting arms, and the plank as the suspended span. The photograph of this demonstration remains one of the most reproduced images in structural engineering.
Reinforced concrete and welded steel then moved the cantilever from bridges into everyday buildings. By the 1920s and 1930s, architects were using projecting slabs not out of necessity but as a design language, and that shift is where the modern story really starts.
Famous Cantilever Buildings
A handful of projects turned the cantilever from a structural trick into an architectural statement. These are the ones worth studying first.
Key Cantilever Structures at a Glance
The following table lists landmark examples and what each one projects:
| Structure | Location | Completed | Cantilever Feature |
|---|---|---|---|
| Forth Bridge | Scotland, UK | 1889 | Three double cantilevers carrying 1,700 ft rail spans |
| Robie House | Chicago, USA | 1910 | Sweeping cantilevered roof eaves over brick piers |
| Villa Savoye | Poissy, France | 1931 | Slab edges freed from columns, enabling ribbon windows |
| Fallingwater | Pennsylvania, USA | 1937 | Reinforced concrete terraces projecting over a waterfall |
| Busan Cinema Center | Busan, South Korea | 2011 | 85 m roof, the longest cantilever roof in the world |
Frank Lloyd Wright did more than anyone to make the cantilever a residential idea. His Prairie houses stretched their rooflines far past the walls to hug the horizon, a move you can trace through the whole Prairie School style. Fallingwater pushed the same instinct to its limit, stacking concrete trays over Bear Run creek. The full story of how those terraces were formed, argued over, and nearly doubled in steel behind Wright's back is covered in our piece on how Fallingwater was built over a waterfall.
🎓 Expert Insight
"The cantilever is the most romantic, most free, of all principles of construction." Frank Lloyd Wright, from An Autobiography (1932)
Wright wrote this reflecting on the Imperial Hotel in Tokyo, where he used cantilevered floor slabs, balanced like a waiter's tray on fingers, as a strategy for flexibility during earthquakes.
In Europe, Le Corbusier used the cantilever more quietly but just as radically. At Villa Savoye, the floor slabs project past the column grid, which is exactly what frees the facade to become a continuous ribbon of glass. Later movements made the gesture heavier; the hovering upper volumes of Boston City Hall and similar civic buildings are a signature of the Brutalist architecture of the 1960s.
🏗️ Real-World Example
Busan Cinema Center (Busan, 2011): Designed by Coop Himmelb(l)au for the Busan International Film Festival, its larger roof projects roughly 85 meters from a single cone-shaped support. Guinness World Records certified it in 2011 as the longest cantilever roof in the world, and the structure sits over an open plaza seating thousands with no intermediate columns.
Why Do Architects Use Cantilevers?
Architects use cantilevers because they remove columns exactly where columns cause the most trouble, at entrances, view lines, corners, and public space. The payoff shows up in four recurring ways:
- Column-free space below. Stadium roofs, grandstands, theater balconies, and drop-off canopies all depend on sightlines and circulation that posts would ruin.
- Weather protection. Projecting eaves and canopies shade glass, shed rain away from walls, and cut summer heat gain without any supporting structure in the way.
- Buildable area on tight sites. Upper floors that oversail a setback line, a slope, or a flood zone can add floor area the ground plane cannot offer.
- Visual weightlessness. A mass that hovers reads as daring and modern, which is why competition entries lean on the move so heavily.
There is also a practical, everyday version of the same principle. Apartment balconies, bay windows, open stair treads anchored in a wall, awning canopies, and even kitchen countertop overhangs are all small cantilevers you interact with daily without noticing.
Structural Challenges and Limits
Every cantilever pays for its drama at the support, and the bill comes in several currencies. The first is deflection. A projecting element droops under its own weight and its loads, and in concrete that droop grows for years through creep. Fallingwater is the cautionary tale: its under-reinforced main terraces sagged almost seven inches over six decades, and the house was finally stabilized in 2001 and 2002 with post-tensioned steel cables, as documented in the preservation history published by Fallingwater. After the repair, movement dropped to roughly a hundredth of an inch.
Vibration is the second cost. Long, light cantilevers bounce underfoot, so floors that feel solid on paper can feel alive to the people standing on the tip. Engineers manage this by adding stiffness or mass, and occasionally with tuned dampers on extreme projections.
The third is anchorage. Whatever holds the fixed end down must resist uplift and rotation permanently, through construction sequences, temperature swings, and decades of load cycles. Backspan beams, core walls, or counterweights have to be designed with the same care as the visible span. Renovations are where this bites hardest, since cutting into a back span during a remodel can quietly remove the anchorage an original cantilever relies on.
Spans, sizes, and reinforcement for any cantilevered structure should be verified by a licensed structural engineer for your specific project.
The Bigger Picture
The cantilever is usually sold as a story about boldness, but it is really a story about balance. Nothing floats; every projecting terrace is held down somewhere else, by structure doing hard work out of sight. Read a building that way and the cantilever in architecture becomes less a magic trick and more an honest ledger, where every meter of drama at the free end is paid for at the fixed one.
