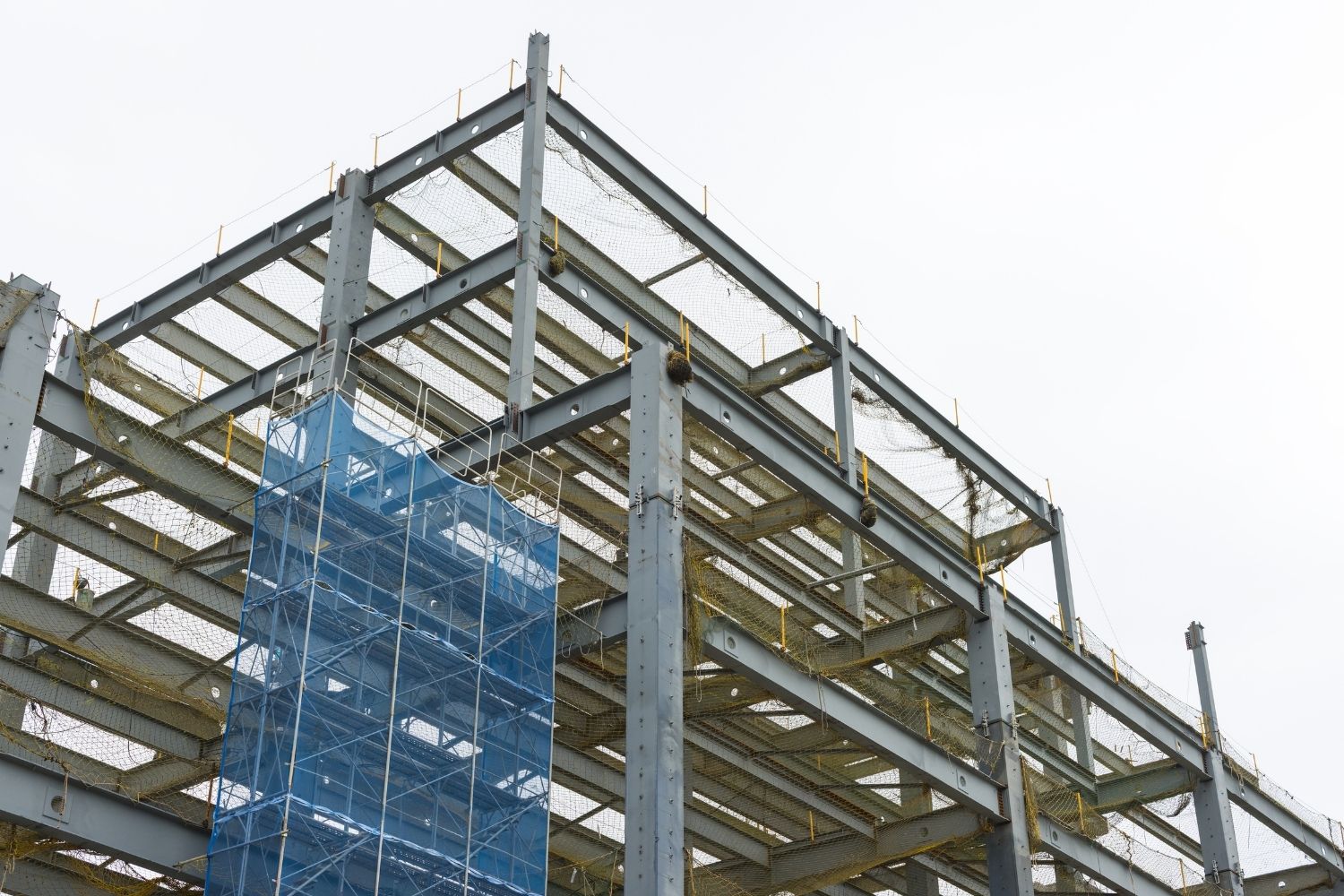

A moment frame in structural design is a building system that resists lateral loads from wind and earthquakes through rigid connections between beams and columns. Instead of using diagonal braces or walls, the joints themselves carry bending moments and shear, letting the frame bend without collapsing while keeping floor plans open.
Engineers reach for moment frames when a project needs clear, uninterrupted space more than it needs cheap bracing. A hospital lobby, a glass-walled office, or a parking structure all benefit from columns and beams that handle sideways forces on their own. Understanding how this system works helps architects and students see why a beam-column joint detail can decide the whole layout of a building.
How does a moment frame resist lateral loads?
A moment frame stays standing under sideways push because its rigid beam-to-column connections resist rotation rather than acting as free hinges. When wind or ground motion shoves the structure horizontally, the frame cannot lean over without bending its members. That bending generates internal forces, called moments, that push back against the load and return the frame toward its original shape.
Compare this to a hinge. A pinned connection lets members rotate freely, so a frame built only with pins would fold flat like a cardboard box pushed from the side. A moment connection locks the angle between beam and column near 90 degrees, so the two members must work together. The column resists rotation at its top, the beam resists rotation at its end, and the joint transfers force between them.
Three things happen at once when lateral force hits the frame:
- Beams and columns develop bending moments, highest near the rigid joints
- The frame drifts sideways a measured amount, called story drift, which codes limit to protect finishes and occupants
- In a strong earthquake, designated zones yield in a controlled way, absorbing energy instead of breaking
That last point separates a well-detailed moment frame from a simple rigid grid. Modern seismic design wants the structure to bend and deform without losing its ability to hold up gravity. The frame trades stiffness for ductility, accepting more movement in exchange for survival during a major event.
🎓 Expert Insight
"Steel special moment frames are typically used as part of seismic force-resisting systems in buildings designed to resist earthquakes with substantial inelastic energy dissipation." (NIST/NEHRP, Seismic Design of Steel Special Moment Frames)
This is why moment frames dominate in high-seismic regions: their value is not just stiffness but the ability to deform repeatedly without failing.
The main parts of a moment frame
A moment frame looks simple on a drawing, just beams and columns in a grid. The engineering lives in how those parts connect and where the design expects damage to concentrate during an extreme event.
Beams and columns
The horizontal beams and vertical columns form the visible skeleton. In steel construction these are usually wide-flange sections, while concrete moment frames use cast members with carefully placed reinforcing bars. Sizing follows gravity loads first, then gets checked and often increased to handle the bending demands from lateral forces.
Rigid connections
The connection is the heart of the system. A bolted or welded joint must transfer the full bending moment from beam to column without slipping or tearing. Steel frames use detailed welds, bolted plates, or proprietary connection assemblies, while concrete frames rely on continuous reinforcement looped through the joint region.
The panel zone
Where the beam meets the column, the column web region is called the panel zone. It carries high shear as moments flip direction during cyclic loading. A panel zone that is too weak deforms excessively, while one that is too strong forces all the damage into the beam. Balancing this is one of the finer points of moment frame detailing.
📐 Technical Note
In the United States, steel moment frame member and connection requirements come from ANSI/AISC 341, the Seismic Provisions for Structural Steel Buildings, used alongside the loading and drift criteria in ASCE/SEI 7. AISC 358 covers prequalified connection types that engineers can use without project-specific testing.
Types of moment frames in structural design
Codes sort steel moment frames into three categories based on how much inelastic deformation, or controlled damage, they are designed to handle. The choice ties directly to the building's seismic risk and how much detailing the engineer wants to invest.
- Ordinary Moment Frames (OMF): the least detailed, expected to stay mostly elastic. Allowed for light, low-rise buildings and in low-seismic areas without restriction.
- Intermediate Moment Frames (IMF): a middle tier with moderate ductility detailing, suited to moderate seismic categories.
- Special Moment Frames (SMF): the most demanding, with strict connection testing and proportioning rules so the frame can survive large earthquake deformations.
Concrete moment frames follow a parallel logic, with ordinary, intermediate, and special categories defined in the ACI 318 building code. The higher the seismic demand, the tighter the rules on reinforcement spacing, joint confinement, and member proportions.
A core idea in special moment frame design is the strong-column, weak-beam principle. Engineers intentionally make columns stronger than the beams framing into them, so that yielding happens in the beams. Beams can bend and dissipate energy without bringing down a column, which protects the structure from a sudden story collapse.
📌 Did You Know?
The 1994 Northridge earthquake exposed brittle fractures in welded steel moment connections that were assumed to be reliable. According to the Wikipedia entry on moment-resisting frames and subsequent FEMA-funded research, this led to a full overhaul of connection design and the prequalified connection rules engineers use today.
Moment frame vs braced frame vs shear wall
Moment frames are one of several ways to resist lateral loads, and they are rarely the cheapest. The right choice depends on how much open space the design needs, the budget, and the local seismic and wind demands. The table below sums up the practical trade-offs.
Comparison of lateral systems in structural design
| Feature | Moment Frame | Braced Frame | Shear Wall |
|---|---|---|---|
| Resists load through | Rigid beam-column joints | Diagonal members in tension and compression | Solid wall acting as a cantilever |
| Open floor plan | Excellent, no obstructions | Limited by diagonals | Limited by wall placement |
| Stiffness | Lower, more drift | High | Very high |
| Relative cost | Higher, connection-heavy | Lower, efficient | Moderate |
| Best suited for | Glass facades, lobbies, flexible layouts | Warehouses, cores, cost-driven projects | Cores, stair and elevator shafts, residential |
Many real buildings mix these systems. A tower might use a concrete shear wall core for stiffness and a perimeter moment frame to keep the views clear. A low-rise steel building might run braced frames in one direction and moment frames in the other, where bracing would block a doorway or window. The detailed differences in how braced frames carry lateral load show why engineers often combine the two rather than pick a single approach.
When do architects and engineers choose moment frames?
Moment frames win when the architecture cannot tolerate visible bracing or solid walls in certain locations. A storefront wrapped in glass, an open-plan office floor, or a column-free exhibition hall all push the design toward rigid joints. The structural system bends to serve the spatial idea rather than the other way around.
The trade-off is cost and drift. Connections that transfer full bending are labor-intensive to fabricate and inspect, especially welded steel joints. Because moment frames are more flexible than braced systems, they move more under wind, which can mean larger members to keep story drift within code limits and to control how much the building sways in everyday gusts.
This is where structural choices meet design software and analysis. Most students first see moment frame behavior inside modeling tools that calculate drift and member forces, and choosing the right program early shapes how comfortable you get with these systems. Our guide to free architecture software for students covers the modeling and analysis tools that make this kind of structural study possible without a paid license.
🏗️ Real-World Example
John Hancock Center (Chicago, 1969): while best known for its braced tube, it sits in a lineage of Chicago steel framing that began with rigid moment connections. The earlier Home Insurance Building (Chicago, 1884) used a steel skeleton with riveted moment-type joints and is often credited as the first skyscraper, proving that rigid frame action could lift buildings to new heights.
How moment frames behave during an earthquake
During a major earthquake, a special moment frame is meant to act like a controlled spring with built-in fuses. The ground shakes, the frame sways, and specific regions yield in a planned order. The goal is life safety: the building can be damaged and even need demolition afterward, but it should not collapse on the people inside.
The strong-column, weak-beam rule directs this damage into plastic hinges near the beam ends. A plastic hinge is a zone where steel yields or concrete reinforcement deforms, absorbing earthquake energy through repeated bending. Spreading hinges across many beams over many floors lets the whole structure share the demand, rather than concentrating failure in one weak story.
Drift control matters here too. Codes such as ASCE 7 set limits on how far each floor can move relative to the one below, both to protect cladding and partitions and to keep the frame stable as it deforms. Designers check these limits with the same models that size the members, iterating until stiffness, strength, and ductility all line up. You can read the official scope of these loading rules in the ASCE 7 standard overview, and the detailed steel seismic rules in the ANSI/AISC 341-22 Seismic Provisions.
Building codes and structural requirements vary by jurisdiction, and technical specifications should be verified by a licensed engineer for your specific project.
Frequently asked questions about moment frames
Is a moment frame the same as a rigid frame?
In common usage, yes. A moment frame is also called a rigid frame or moment-resisting frame because its connections resist rotation and transfer bending moments. The term moment frame is more common in seismic and steel design, while rigid frame appears more often in general structural texts.
Are moment frames only made of steel?
No. Steel moment frames are common because welded and bolted connections transfer moments well, but reinforced concrete moment frames are widely used too. Concrete versions rely on continuous reinforcing bars looped through the joint, with detailing governed by the ACI 318 code rather than the AISC steel provisions.
Why are moment frames more expensive than braced frames?
The cost sits in the connections. Transferring a full bending moment requires heavier members, careful welding or bolting, and detailed inspection, especially for seismic special moment frames. Braced frames use simpler pinned connections and slender diagonals, which fabricate faster and use less material for the same lateral strength.
Can a building combine moment frames with other systems?
Often it does. A dual system might pair a moment frame with a shear wall or braced frame, so the stiffer element controls most of the drift while the moment frame adds a backup load path and ductility. Codes recognize these dual systems and assign them specific design factors.
The Bigger Picture
A moment frame is less a single component than a design philosophy: let the joints do the heavy work so the spaces stay open and the structure can bend without breaking. For architects, that means a structural decision made early can either free a floor plan or quietly limit it. The more clearly you understand how rigid joints share force, the better you can argue for the layout your design actually needs when you sit down with the engineer.
