HVAC stands for heating, ventilation, and air conditioning, the building system that controls indoor temperature, air quality, and humidity. For designers, HVAC shapes ceiling heights, shaft locations, and facade openings. Understanding it early lets you coordinate space and aesthetics instead of fixing conflicts after the layout is fixed.
Most design students meet HVAC as an afterthought, a set of grilles and ducts that the mechanical engineer adds at the end. That habit causes real problems on site. When you treat air handling as part of the plan from the first sketch, you protect ceiling heights, hide equipment cleanly, and avoid the bulkheads that ruin a careful section. This guide walks through what each part of an HVAC system does and the decisions that land on your drawing board.
What does HVAC actually do in a building?
An HVAC system manages three things at once: the temperature of the air, the freshness of the air, and the moisture in the air. Heating raises indoor temperature in cold conditions, cooling removes heat in warm conditions, and ventilation swaps stale indoor air for filtered outdoor air. Together they keep a space comfortable and healthy regardless of the weather outside.
The heating side usually runs on a furnace, boiler, or heat pump. The cooling side relies on refrigerant cycles, the same principle that runs your refrigerator, moving heat from inside to outside. Ventilation is the part designers tend to underestimate, yet the U.S. Environmental Protection Agency notes in its introduction to indoor air quality that inadequate ventilation is a primary cause of indoor air problems, since pollutants build up when too little outdoor air enters a space.
Humidity control sits quietly inside all of this. A system that cools air also dries it, which matters in humid climates where condensation and mold follow poor design. The right balance of these functions depends on climate, occupancy, and the building program, which is why a hospital, a gallery, and an apartment each need a different approach.
📌 Did You Know?
Space heating and air conditioning together accounted for 52% of U.S. household energy use in 2020, according to the U.S. Energy Information Administration's Residential Energy Consumption Survey. The choices a designer makes about envelope, glazing, and orientation directly change how hard the HVAC system has to work.
The four core parts of an HVAC system
Behind every comfortable room sits a chain of equipment. Knowing the parts helps you read mechanical drawings and reserve the right space in your plan.
Heating equipment
This is the source of warm air or warm water. A gas furnace heats air directly and pushes it through ducts. A boiler heats water that travels to radiators or underfloor loops. A heat pump moves heat from outside air or the ground into the building, and it can reverse to provide cooling, which makes it popular in efficient designs.
Cooling equipment

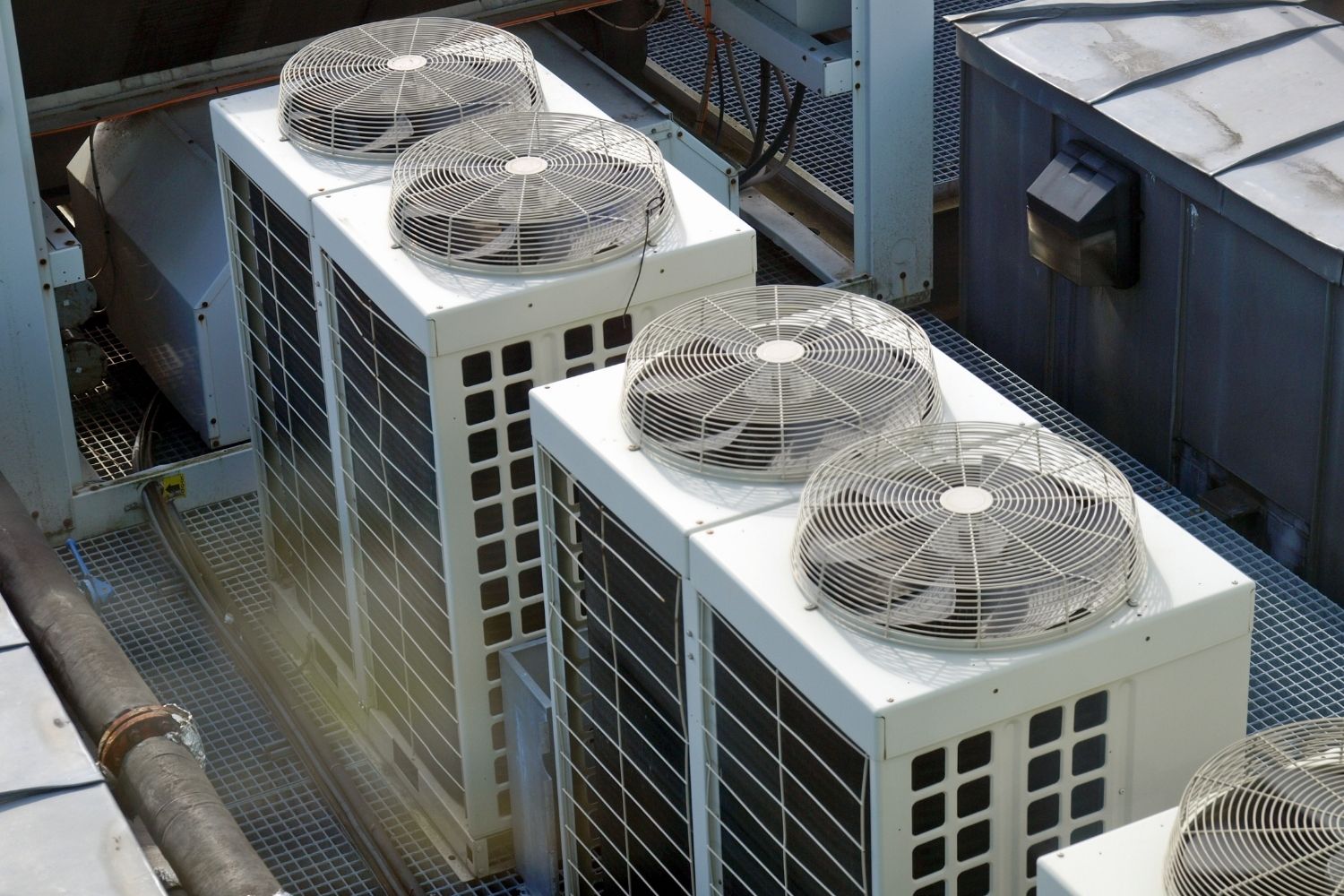

Air conditioners and chillers remove heat using a refrigerant cycle. Small buildings use packaged or split units. Larger ones use a central chiller that produces cold water, distributed to air handlers across many floors. The outdoor component, the condenser or cooling tower, needs open air and a planned location, often on the roof or in a screened yard.
Ventilation and air distribution
Air handling units mix fresh outdoor air with returned indoor air, filter it, condition it, and send it through ductwork to each room. Supply grilles deliver the air and return grilles pull it back. This network of ducts is the part that competes most directly with your structure and ceiling space.
Controls
Thermostats and building management systems tell the equipment when to run and how hard. In commercial projects, controls also manage zoning, so a south-facing office can cool while a north room stays neutral. Good zoning saves energy and keeps occupants comfortable across a single floor.
📐 Technical Note
Main supply ducts in commercial buildings commonly need 250 to 400 mm of vertical clearance, and that depth sits below structure and above the finished ceiling. ASHRAE Standard 62.1 sets minimum outdoor air rates for ventilation, so the duct sizes your engineer specifies are tied to required airflow, not arbitrary numbers.
Common HVAC system types and where they fit
There is no single HVAC system for every building. The choice depends on size, budget, climate, and how much control each zone needs. The table below compares the types you will meet most often as a designer, along with the spatial demands each one places on your plan.
HVAC system types compared
| System Type | Best For | Space Impact | Zoning Control |
|---|---|---|---|
| Split system | Homes, small offices | Low, outdoor unit plus indoor unit | Room by room |
| Packaged rooftop unit | Retail, low-rise commercial | Roof space and structural load | Moderate, by zone |
| VRF or VRV | Mixed-use, hotels, offices | Slim refrigerant pipes, small risers | High, per indoor unit |
| Central chilled water | Large or tall buildings | Plant room, shafts, air handlers | High, fully zoned |
| Radiant heating and cooling | Galleries, low-energy homes | In-slab pipes, separate ventilation | Slow but even |
A radiant system pairs well with a calm interior because it hides inside floors and ceilings, but it still needs a separate ventilation path for fresh air. A VRF system gives strong control with minimal duct space, which is why it shows up so often in renovation work where ceiling height is scarce.
💡 Pro Tip
When you place a rooftop unit or condenser, reserve a clear maintenance path and a screened enclosure on your roof plan from the start. Engineers add this equipment later, and a unit dropped onto a roof with no access route or visual screen forces ugly compromises that a quick early reservation would have prevented.
Why HVAC matters for design decisions
HVAC is not just an engineering problem handed off after the design is set. It shapes the building in ways that show up in your plans and sections. Ductwork eats ceiling height, plant rooms claim floor area, and intake louvers appear on facades where you may want clean glass.
The smarter move is to design with the system, not around it. A taller ground floor can hide a deep duct run. A vertical shaft placed near the core keeps risers short and frees the perimeter for daylight. Passive choices such as shading, thermal mass, and natural ventilation lower the load on the mechanical system, which means smaller equipment and lower running costs. The U.S. Department of Energy's guidance on heating and cooling points out that these uses rank among the largest energy expenses in any home, so reducing demand through design pays back for the life of the building.
This connection between envelope and system is central to low-energy work. If you are studying how building form reduces mechanical load, the Essential Guide to Sustainable Architecture ebook covers passive strategies and energy efficiency that directly affect HVAC sizing.
⚠️ Common Mistake to Avoid
Many beginners design a tight, beautiful section and only then ask where the ducts go. The result is a dropped ceiling that kills the proportions or a surprise bulkhead across a window. Coordinate duct routes and ceiling void depth with your mechanical engineer while the section is still flexible, not after it is locked.
How HVAC connects to comfort, health, and codes
Comfort is about more than temperature. People feel a room through air movement, humidity, surface temperatures, and air freshness combined. A space at the right temperature can still feel stuffy if ventilation is poor, or clammy if humidity is unmanaged. HVAC ties all of these together, which is why occupants notice a good system without ever seeing it.
Health is the part that gained attention after concerns about indoor air spread. Filtration and fresh air rates affect how pollutants, allergens, and pathogens move through a building. The American Society of Heating, Refrigerating and Air-Conditioning Engineers, the global authority on this field, publishes the standards engineers use for ventilation and indoor air quality. You can read its mission and standards work on the ASHRAE about page, and its rates feed straight into the equipment and duct sizes that affect your plan.
Building codes turn these standards into legal requirements. Minimum ventilation rates, equipment access, and energy performance are all regulated, and they vary by location. As a designer you do not need to memorize the figures, but you do need to know they exist so you reserve space and access that keeps the project compliant.
How to read HVAC into your early design work
You can fold HVAC thinking into your process without becoming a mechanical engineer. The point is to make room for the system before your decisions harden.
- Identify the plant room and reserve floor area for it, often near the core or in a basement or roof level.
- Mark vertical shafts for risers so ducts and pipes travel cleanly between floors.
- Set a ceiling void depth in your section that fits the duct sizes your engineer expects.
- Place outdoor intakes and exhausts away from each other and away from pollution sources on the facade.
- Reduce the load first through orientation, shading, insulation, and daylight so the system can be smaller.
These steps cost nothing on an early sketch and save weeks of rework later. Software helps here too, since many BIM tools let you model duct space alongside structure. If you are still building your toolkit, our guide to free architecture software for students covers the BIM and modeling programs where this coordination happens.
Building codes and ventilation requirements vary by jurisdiction. Always confirm HVAC design and capacity with a licensed mechanical engineer and local authorities for your specific project.
Frequently asked questions about HVAC
What does HVAC stand for?
HVAC stands for heating, ventilation, and air conditioning. It describes the combined system that controls indoor temperature, supplies fresh filtered air, and manages humidity. The three functions work together to keep a building comfortable and healthy across changing outdoor conditions.
Do designers need to understand HVAC?
Yes, at a working level. You do not size equipment yourself, but you decide where plant rooms, shafts, and ducts fit, and those choices affect ceiling heights, facades, and floor area. Understanding the basics lets you coordinate with engineers early and avoid costly redesign.
How much space does an HVAC system need?
It depends on the system and building size. A small home split system needs little more than an outdoor unit and indoor units, while a large building needs a plant room, vertical shafts, and a ceiling void deep enough for main ducts, often 250 to 400 mm. Reserve this space in early plans.
What is the difference between ventilation and air conditioning?
Ventilation brings in fresh outdoor air and removes stale indoor air to keep air quality healthy. Air conditioning controls temperature and humidity by removing heat. A building can be ventilated without being air conditioned, but most conditioned spaces need both functions working together.
Where to Go From Here
Your Next Step: On your current studio project, sketch the plant room location and a single vertical shaft before you finalize the floor plan, then check that your section has room for a duct void above the ceiling. Doing this once will change how you read every plan after it.
