A reflected ceiling plan is a drawing that shows the ceiling of a space as if a mirror were laid on the floor and the ceiling reflected down onto it. Because of that mirror logic, the drawing keeps the same orientation as the floor plan, so lights, grid lines and diffusers land exactly where they sit in the room.
Why the Drawing Is Called Reflected
Every plan assumes a horizontal cut and a viewer looking down. A ceiling breaks that assumption, because the surface being documented sits above the cut. Draw what you see looking up and the sheet comes out handed the wrong way: a fixture near the west wall appears on the east side of the page.
The convention solves this by treating the floor as a mirror. The ceiling is mirrored downward, not viewed from below, so the sheet reads in the same orientation as the floor plan underneath it, so every wall, column and opening stacks between the two sheets. That property is what makes an RCP useful on site, where an electrician measures from the same wall the plan dimensions.
The RCP is drawn at the same scale as its floor plan, usually 1:50 or 1:100 in metric offices and 1/4 inch or 1/8 inch to the foot in imperial ones. Matching scales let the sheets be compared without arithmetic, and our guide to architectural drawing scales covers how that choice affects legibility. The assignment brief for ARCH3510 at New York City College of Technology gives students the same rule: draw the reflected ceiling plans at the scale of the floor plans, then code and tag every fixture.
Ceiling Plan vs Floor Plan: What Stays and What Changes
The two drawings share a footprint and little else. Walls, columns and shafts carry over because they continue past the cut, usually in a lighter line so the ceiling content reads first. Everything on the floor drops away. Deciding which lines recede is ordinary line weight discipline on a different surface.
Reflected Ceiling Plan vs Floor Plan at a Glance
The table below sets the two drawings side by side on the points that most often cause confusion.
| Aspect | Floor Plan | Reflected Ceiling Plan |
|---|---|---|
| Viewing logic | Looking down at the floor | Ceiling mirrored onto the floor |
| Orientation | North as set on the sheet | Identical, never flipped |
| Doors and windows | Swings, sills and glazing shown | Openings implied, swings omitted |
| Heights | Floor levels and thresholds | Ceiling heights above finished floor |
| Main users | Builder, joiner, fit out trades | Electrical, mechanical, ceiling installer |
What a Reflected Ceiling Plan Shows
An RCP is the sheet where every ceiling mounted system meets. It answers one question per trade: what goes where, at what height.
- Ceiling height for each area above finished floor, plus every level change, soffit and bulkhead.
- Luminaire types and positions, from recessed downlights and troffers to linear runs, track and pendants, each tagged to a code.

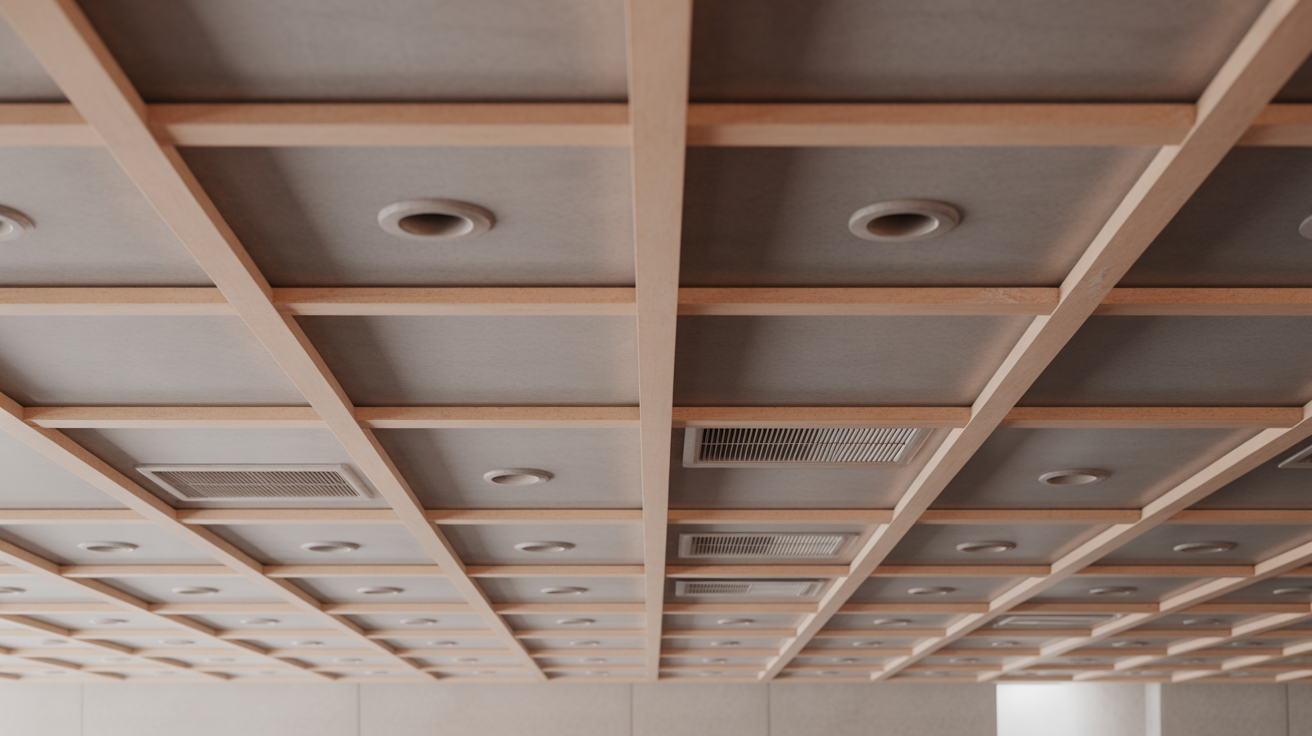

- The suspended ceiling grid drawn as a real module, with tile size and border tile widths at each wall.
- Supply diffusers and return grilles, which come from the mechanical layout and set the rhythm the lighting follows.
- Smoke detectors, sprinkler heads, speakers, exit signs and ceiling mounted sensors.
- Access panels serving valves, dampers, fan coil units and junction boxes above the ceiling line.
- Curtain pockets, projector mounts and anything hung from the slab above.
- Materials by area: plasterboard, mineral fibre tile, timber slat, open grid.
Diffuser positions are rarely negotiable once ductwork is sized, which is why they are plotted before lighting. If supply, return and plenum are unfamiliar terms, our beginner guide to HVAC for designers explains what each device does up there. Tile choice also carries an acoustic consequence, since absorption ratings vary widely, a subject covered in our primer on NRC and STC in acoustic design.
📐 Technical Note
Ceiling heights are not purely a design decision. Under section 307.4 of the 2010 ADA Standards, as explained in the U.S. Access Board guide to protruding objects, circulation paths require at least 80 inches of headroom, with 78 inches permitted at doors and doorways to allow for stops and closers.
Check the Access Board guidance on protruding objects and headroom before dropping a feature ceiling into a corridor. Anything hung below that line has to be positioned or guarded accordingly.
Grid Alignment and Trade Coordination
The reason an RCP exists as a separate sheet is coordination. Without one, each trade follows its own logic. The electrician centres fixtures in the room, the mechanical contractor centres diffusers on duct runs, fire protection spaces sprinkler heads to its coverage rules, and the installer follows the tile module. Four rational layouts collide in one plane, and a fitting ends up cut by a grid tee.
Grid setting out resolves most of it. A ceiling grid should be set out from a datum, usually the room centreline or a dominant architectural feature, with border tiles checked at both ends before the layout is frozen. A full tile on one side and a 90 millimetre sliver on the other reads as an accident, and clients notice it at handover.
💡 Pro Tip
Plot the fixed points first and the flexible ones second. Diffusers follow duct routes, sprinkler heads follow coverage spacing, and access panels follow whatever valve sits above them. Lighting is the most adjustable of the four, so locking luminaire positions before the mechanical layout is settled almost guarantees a revision cycle.
On modelled projects these conflicts surface before anyone reaches site. Running the ceiling zone through a rule based check is what clash detection in BIM is for, and the void above a ceiling is often the busiest zone in the building.
Legends, Symbols and the Fixture Schedule
An RCP without a legend is a decorative drawing. Each fixture family gets a code that appears beside every instance and resolves in a fixture schedule listing description, lamp type, colour temperature, mounting method and control zone. Two identical looking downlights can carry different codes because one is dimmable.
Symbols matter because the drawing is read by people who did not draw it. A maintained set of CAD blocks keeps symbol sizes and line weights consistent instead of drifting sheet by sheet.
📌 Did You Know?
Drawing symbols are formally standardised in the United States. The Uniform Drawing System inside the U.S. National CAD Standard, published by the National Institute of Building Sciences, includes a dedicated Symbols module covering graphic representation and classification, alongside modules for drawing set organisation, sheet organisation and schedules.
The full module list appears on the National CAD Standard version 7 contents page. Criteria behind fixture selection come from a different family of documents: the Illuminating Engineering Society publishes application specific recommended practices, including ANSI/IES RP-1-24, Recommended Practice: Lighting Office Spaces, issued in 2024 with guidance on glare mitigation, control systems and acoustic luminaires.
Who Prepares the Reflected Ceiling Plan
The architect or interior designer normally authors the RCP, because ceiling geometry, heights and finishes are design decisions rather than engineering outputs. The base drawing then becomes a coordination drawing, circulated so the electrical engineer can confirm circuiting and emergency lighting, the mechanical engineer can place terminal devices, and the fire engineer can position detection and suppression.
In fit out work, especially hospitality and retail, the interior designer carries the ceiling further, detailing coves and integrated lighting, and related material sits in our interior design resources. The ceiling contractor's shop drawings then resolve hanger positions and setting out against the approved RCP, the last point at which an error is cheap to fix.
Common Mistakes on Reflected Ceiling Plans
Most RCP problems are procedural rather than technical, repeating across offices:
- Mirroring the drawing. Somebody remembers the word reflected, flips the geometry, and the sheet stops aligning with the floor plan.
- Omitting ceiling heights, since a grid drawn in two dimensions says nothing about the level it sits at.
- Drawing the grid as a hatch pattern, which has no setting out point, so the contractor invents one.
- Leaving out access panels, when every valve and fan coil above the ceiling needs reachable service access.
- Tagging fixtures with no schedule behind them, which returns as a request for information.
- Ignoring the structure above, since beam depths and duct crossings decide whether the intended height is buildable.
Final Thoughts
Quick Recap:
- An RCP mirrors the ceiling onto the floor, sharing the floor plan orientation and scale.
- It carries heights, grid, luminaires, terminal devices, detection and access panels on one sheet.
- Its real job is coordination between trades whose layouts would otherwise conflict in one plane.
- Legends, fixture codes and a schedule turn the symbols into buildable instructions.
Frequently Asked Questions
What Does RCP Stand for in Architecture?
RCP stands for reflected ceiling plan. In drawing registers it appears beside the floor plan for the same level, for example a ground floor plan paired with a ground floor RCP at matching scale.
Is a Reflected Ceiling Plan Mirrored or Not?
It is not mirrored on the sheet. The mirror is a thought experiment explaining the view direction, and the result has the same left to right orientation as the floor plan. If your ceiling plan does not overlay the floor plan cleanly, something has been flipped by mistake.
What Symbols Appear on a Reflected Ceiling Plan?
Typical symbols cover recessed and surface luminaires, linear fittings, track, exit signs, supply diffusers, return grilles, sprinkler heads, smoke detectors, speakers and access panels. Each symbol should be defined in a legend on the same sheet and cross referenced to a fixture schedule.
What Is the Difference Between a Ceiling Plan and a Reflected Ceiling Plan?
In everyday use the terms describe the same drawing, and reflected ceiling plan is the precise name. The word reflected specifies the view convention that keeps the sheet the right way round relative to the floor plan.
Do Residential Projects Need a Reflected Ceiling Plan?
A small house with flat ceilings may not warrant a separate sheet, and the information can sit on an electrical layout. Once the design includes coves, level changes or a suspended system, an RCP saves more time than it takes to draw.
