A seamless concrete texture is an image whose left edge matches its right edge and whose top matches its bottom, so it repeats across a surface without a visible join. The seam disappears, but the repeat itself often does not. Hiding that repeat is the real work.
Most architects find this out the hard way. You drop a 4K concrete wall onto a facade, hit render, and the result reads as wallpaper. The single tile looks convincing; the wall does not. What gives it away is a rhythm rather than a seam line: the same stain, the same tie hole, the same dark corner marching across the surface at fixed intervals.
What Makes a Concrete Texture Seamless?
Two conditions have to hold. The pixel content at each edge has to continue into the opposite edge, so no line appears at the join. And the overall brightness has to be even. A texture shot with light falling off toward one corner tiles without a seam line and still produces an obvious checkerboard once repeated, because that dark corner lands in a grid.
Good source textures are photographed flat-on under diffuse light, then flattened with a high-pass or gradient-removal pass before the edges are blended. Preview any file at four by four repeats rather than one. Almost every tiling failure is invisible at a single tile and obvious at sixteen.
Tileable Is Not the Same as Usable

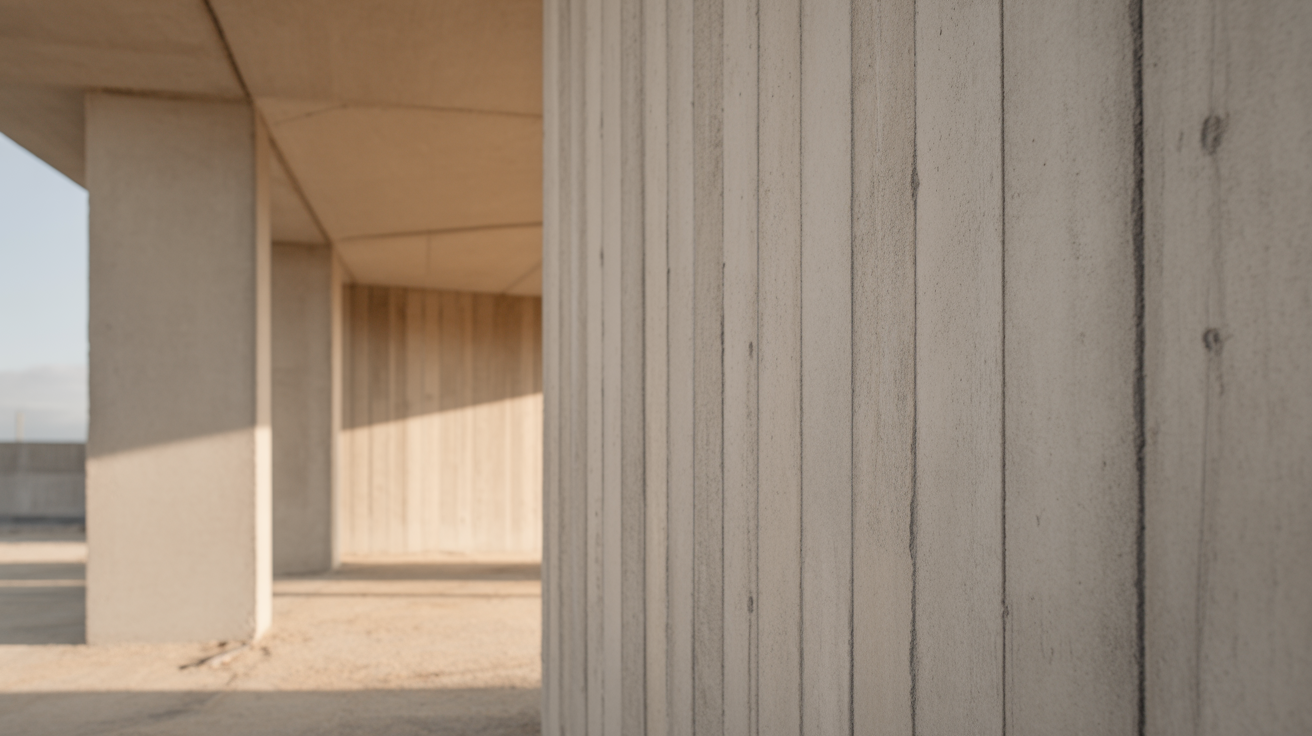

A file can be technically tileable and still be a poor choice. Concrete carrying a strong board pattern, a large crack, or one dark stain has what texture artists call a hero feature. Repeat that tile four times and the viewer counts four identical cracks. For large surfaces, pick images with fine, low-contrast grain and save the character for decals you place by hand.
⚠️ Common Mistake to Avoid
Fixing a tiling problem by raising the texture resolution. An 8K image repeats its stain exactly as often as a 1K version does, because repetition depends on tile count, not pixel count. Bigger files cost render memory and solve nothing. Cut the number of repeats or randomize them instead.
Why the Tiling Pattern Shows Up
Human vision is unusually good at spotting periodic structure. Contrast variation is the strongest trigger, since any patch lighter or darker than the field becomes a marker the eye tracks. Directional features come second, because a diagonal streak or a board line sets an angle that repeats predictably. Third is scale mismatch, where a map sized for a 2 metre panel gets stretched over 12 metres and the grain balloons into something no concrete ever looked like.
Repeat count matters here. Below roughly four repeats across a visible surface, the eye rarely locks on. Past about eight, the grid becomes hard to ignore. That range is a useful planning number when you decide how large an area one tile should cover.
Four Ways to Break the Repeat
You rarely need more than two of these on one surface. Start with randomization, add a dirt pass, and stop there unless the camera gets close.
1. Randomize the Tiles
Render engines can shift, rotate, and rescale the texture per tile so no two repeats match. In V-Ray, the VRayUVWRandomizer does exactly this, with a stochastic tiling mode that randomizes mapping inside each UV tile plus randomization by object, element, face, or instance ID. Blender users build the same effect with a noise-driven offset feeding the vector input of an image texture node. Keep the rotation range small for concrete, since 90 degree turns break the directional grain formwork leaves behind.
2. Blend Two Scales
Mix a fine-grain concrete map at high repeat with a large, soft blotch map at very low repeat, using noise to fade between them. The large map adds slow variation across the wall that no single tile size can produce, and it kills the grid without touching the base texture.
3. Add Decals and Dirt
Place tie holes, pour lines, rust runs, and patch repairs as separate decal planes positioned by hand, then darken wall bases, sill undersides, and reveals with a grunge map driven by a dirt or occlusion shader. Because weathering responds to geometry rather than UV coordinates, it interrupts the repeat in a way that reads as physically correct instead of as noise.
4. Break the Surface Itself
Sometimes the fix is modelling, not texturing. Panel joints, control joints, and shadow gaps chop a wall into smaller fields, and each field can carry its own randomized offset. Real cast-in-place work is divided by pour sequence anyway, which is why formwork layout in concrete construction is worth understanding before you texture a facade.
💡 Pro Tip
Test the material on a plain box at real building size before you apply it to the model. Set the camera at eye level, at 20 metres, and at the actual hero view distance. Problems that hide on a detailed mesh appear immediately on a flat 10 by 4 metre panel, and fixing them there takes minutes instead of a re-render.
Real World Scale and UV Mapping
Scale errors ruin more concrete materials than tiling does. Every texture represents a specific physical area, and if you do not know what that area is, the render is guesswork. Most exterior concrete maps cover between one and four metres square. Aggregate that should read as a few millimetres turns into fist-sized gravel when the same file is stretched to eight metres.
Mapping works through UV coordinates, a 2D system attached to the mesh that tells the renderer which part of the image lands where. The Blender manual's unwrapping documentation explains how a 3D surface is flattened into that space. For architectural work, box or triplanar projection set in real units is faster and safer than manual unwrapping, since it holds the texture at a fixed physical size regardless of how the wall is modelled.
📐 Technical Note
Set texture scale from a known dimension in the source photo rather than by eye. Plywood formwork panels commonly run 1200 by 2400 mm, and form tie grids often fall near 600 mm. If your texture shows tie holes, match that spacing in the material editor and the whole wall snaps to a believable size.
The PBR Map Set for Concrete
A single colour image is not a material. Physically based rendering splits surface behaviour across several maps, and the Khronos glTF 2.0 specification defines the metallic-roughness model most engines follow, covering base colour, metallic-roughness, normal, and occlusion textures. Concrete is a dielectric, so metallic stays at zero and roughness does the heavy lifting.
What Each Map Controls
| Map | What It Controls | Concrete Notes |
|---|---|---|
| Albedo / Base Colour | Surface colour with no lighting baked in | Remove shadows and highlights, keep values mid grey |
| Roughness | How sharp or diffuse reflections are | The map that sells concrete; vary it, never use a flat value |
| Normal | Fake surface relief through shading | Handles pores and fine grain without extra geometry |
| Displacement / Height | Real geometric offset at render time | Close-ups and silhouettes only; costly on large scenes |
| Ambient Occlusion | Contact shadow in crevices | Use lightly; heavy AO flattens the material |
Roughness deserves the most attention. Poured concrete is not uniformly matte, since trowelled areas, water staining, and sealer all shift reflectivity, and a roughness map carrying that variation does more for believability than any resolution increase. If your images still read as computer generated, the material setup is usually why, a point covered in this breakdown of lighting and material mistakes that make renders look fake.
Choosing a Resolution
Resolution should follow texel density, meaning pixels per real-world unit, not a habit of always grabbing the largest file. A 2K texture (2048 pixels) covering a 2 metre square gives roughly one pixel per millimetre, which holds up well past normal viewing distance. The same file stretched over 8 metres drops to about one pixel per 4 mm and turns soft.
Use 1K for background buildings, 2K for mid-ground facades, and 4K only for hero surfaces the camera approaches. Scenes often crawl because a dozen 8K maps sit on geometry occupying 40 pixels on screen. Engines differ in how they handle large texture sets, one of the practical differences between V-Ray, Twinmotion, and Lumion.
Concrete Textures in Plans and Elevations
Textures behave differently in 2D drawings. On an elevation or section, a photographic concrete fill at full strength competes with line work and makes the drawing harder to read. Drop the opacity to somewhere between 15 and 30 percent, desaturate it toward grey, and let the linework stay dominant.
Scale still applies. A texture in a 1:100 elevation has to be sized so its grain matches that ratio, otherwise the sheet reads as a photograph rather than a measured document. If drawing conventions are not yet second nature, this guide to architectural drawing scales covers how 1:50 and 1:100 change what belongs on the sheet. For section poché, a flat tone or a simple hatch communicates better than a photographic fill.
Licensing and Commercial Use
Licences vary more than people expect, and the difference matters once an image goes into a competition entry or a published portfolio. Public domain dedications are the simplest. Under Creative Commons CC0, the creator waives their rights as far as the law allows, so files can be used commercially with no attribution. Poly Haven and ambientCG both release their libraries this way, which is why they turn up so often in professional pipelines.
Royalty-free commercial licences are the second group, typical of paid marketplaces. You buy once and render without limit, but redistribution is normally banned, so you cannot hand the set to a consultant as loose files or resell it inside a template. Check whether the licence is per seat or per studio.
The third group is the risky one: images pulled from search results, manufacturer brochures, or another studio's visuals. Those carry the photographer's copyright, and using them in a commissioned render is infringement even if nobody notices. For a dependable starting point, the texture library at Learn Architecture collects sets prepared for architectural work with clear commercial terms.
Frequently Asked Questions
How do I check whether a texture is truly seamless?
Open it in Photoshop or GIMP and apply an offset of half the image width and half its height with wrap enabled. Any join now sits in the middle of the frame where it is easy to see. If a line appears, clone it out or find a better source file.
What area should a concrete texture cover in real life?
Most exterior concrete maps are built for one to four metres square. Check the product page, and if no figure is given, measure a known feature such as a tie hole or a board width and scale from that. An arbitrary tile size is the most common cause of unconvincing concrete.
Can I make a seamless concrete texture from my own photo?
Yes, and the result is often better because you control the reference. Shoot flat-on in overcast light, correct the perspective, remove the lighting gradient with a high-pass pass, then use an offset filter and clone the seams. Generate roughness and normal maps from the corrected albedo afterwards.
Does displacement always beat a normal map for concrete?
No. Displacement changes real geometry and gives correct silhouettes, but it multiplies render time and memory. Concrete relief is shallow, so a normal map handles it convincingly beyond close range. Reserve displacement for foreground surfaces where the edge profile is visible.
Why does my concrete still look flat after adding all the maps?
Usually the roughness map is doing nothing. If roughness is a single value or a near-uniform grey, every part of the wall reflects light identically and the surface reads as plastic. A fully diffuse sky is the other common cause, since it gives concrete no grazing highlight to reveal its grain.
Your Next Step: Take the concrete material you use most, apply it to a flat 10 by 4 metre test panel at real-world scale, and render it from 20 metres. If you can count the repeats, add a tile randomizer and a gravity-driven dirt layer before you touch the resolution.
