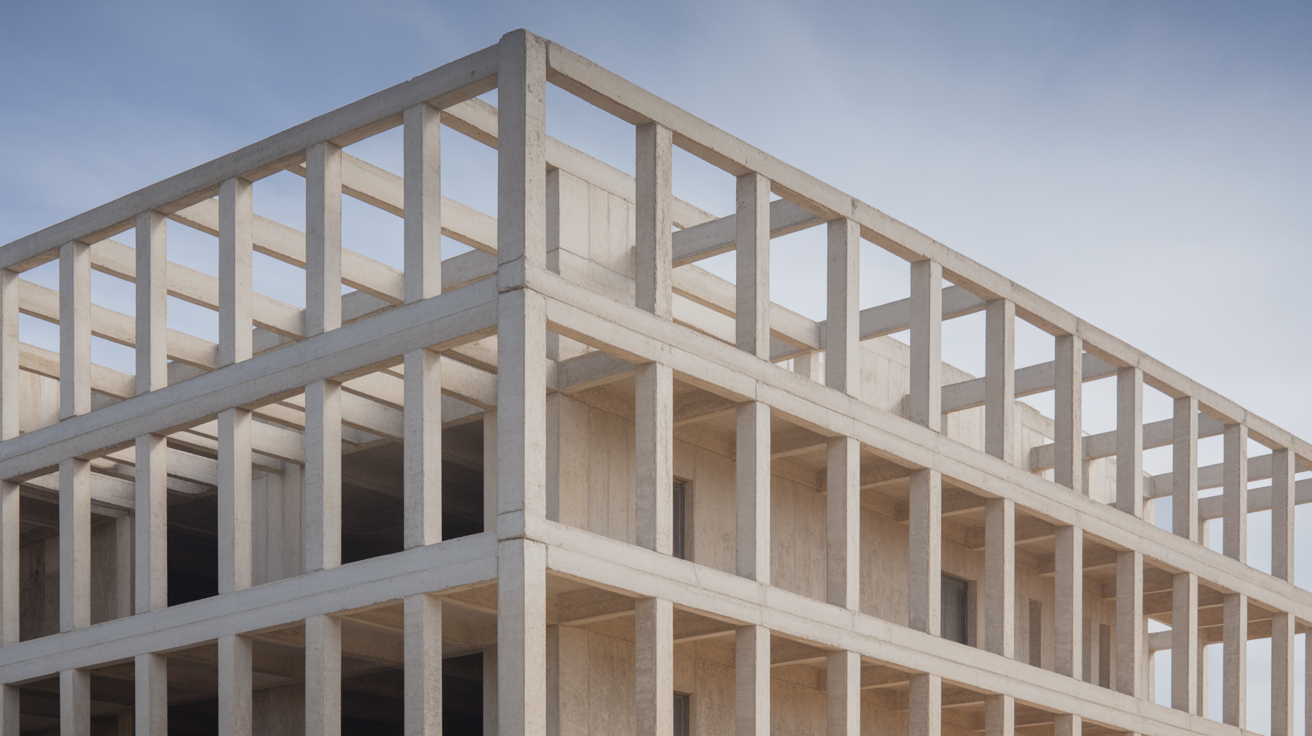

A structural diagram in architecture is a stripped down drawing that shows how a building carries load to the ground. It removes finishes, furniture and program so the reader can follow columns, walls, floor plates and foundations in one look. Most are drawn as exploded axonometrics or annotated sections.
Students tend to draw the structure they can see and stop there. A jury wants something else: whether the long span over the entrance actually lands somewhere, and whether the roof you sketched can be held up by the columns you drew.
What a Structural Diagram Is Meant to Explain
A framing plan is a construction document: exact, dimensioned, dense. A structural diagram sits at the other end of the range. It is an argument about behavior, drawn so a non-engineer can follow it, and it belongs with the explanatory drawings rather than in the technical annex. Our breakdown of the 21 diagram types every architecture student should know maps the wider family.
Three questions decide what stays in the drawing:
- What carries gravity load, and where does that load land
- What resists wind and seismic push, and how does that force reach the foundation
- Which parts are structure and which parts are hung off it
Anything that answers none of the three can leave. Doors, mullion patterns and stair nosings dilute the point. Subtraction is most of the work.
Reading the Load Path From Roof to Ground
Gravity Loads Travel Down
A load path diagram follows weight in the order the structure handles it. Slab spans to beams, beams to girders, girders to columns or walls, and those land on footings, rafts or piles. Each handoff is worth drawing, because that is where a real building fails when it is detailed badly.
Draw the sequence, not the total. A single arrow from roof to ground says nothing. Four short arrows, one per transfer, with the member type named beside each, shows you understand the hierarchy. Our piece on how skyscrapers stay up is a useful reference stack.
Lateral Loads Travel Sideways First
Wind and earthquake forces arrive horizontally, get collected by floor diaphragms, then travel into whatever resists sideways movement: braced bays, shear walls, a rigid frame, or a core. Only after that do they turn downward. Beginners draw the vertical half and skip the horizontal half, which leaves the building looking like it would fold in a storm.
Give the lateral load resisting system a second color and a second arrow style. A reader should be able to cover one color with a thumb and still get a complete story from the other.
📐 Technical Note
The idea that the load path must be unbroken is written into the loading standard itself. ASCE/SEI 7-22, Minimum Design Loads and Associated Criteria for Buildings and Other Structures, sets general structural integrity requirements alongside its wind, seismic, snow and flood provisions. A diagram where a force arrives somewhere and then vanishes has caught a real design problem, not a graphic one.
Splitting the Building With an Exploded Axonometric
The exploded axonometric is the default format because it separates layers that overlap in plan. Lift each system apart along a vertical axis, keep the alignment true so the parts still read as one building, and label the gaps. Projection choice matters here, and the differences between axonometric and isometric drawings change how convincingly the layers stack.
Five layers cover most projects:
- Foundation: footings, rafts, piles, retaining structure below grade
- Vertical supports: columns, load bearing walls, shear walls, core
- Horizontal planes: slabs, beams, joists, transfer levels
- Roof: trusses, shells, long span elements, plant loads
- Envelope: the layer hung off the structure rather than holding it up
Keeping the envelope separate and lighter turns a pretty explosion into an explanation. It tells the reader the facade is cladding, not support, which is the confusion the drawing exists to clear up.
💡 Pro Tip
Set the explosion gaps unevenly. Equal spacing between five layers reads as a product assembly, not a building. Give the foundation a smaller gap and the roof a larger one, so the eye travels upward and the drawing keeps a sense of ground. Lock the vertical axis in your model before pulling layers apart, or the reassembly logic breaks.
Showing System Types in One Diagram
Each structural system needs its own graphic emphasis. A moment frame lives or dies on its joints, so the joints must be visible. A shell has no joints worth drawing, but its curvature is everything. If you want a running start on layout and line work, the diagram templates in our store are built for this kind of overlay.
| System | What the Diagram Must Show | Common Failure in the Drawing |
|---|---|---|
| Moment frame | Rigid beam to column joints, deflected shape under lateral push | Joints drawn as thin pin connections |
| Shear wall | Wall positions in plan, diaphragm collecting force into them | Walls shown without the floors that feed them |
| Central core | Core footprint through full height, outriggers if present | Core drawn as a service shaft, not as structure |
| Truss or space frame | Members in tension and compression, support points | Decorative lattice with no bearing logic |
| Shell or gridshell | Curvature, thrust direction, edge and ground restraint | Thrust at the edge left unresolved |
| Load bearing masonry | Continuous wall lines, openings and lintels above them | Openings stacked without visible support |
Arrow and Color Rules That Keep the Drawing Readable
Arrows carry the argument, so they need a system. Fix one convention at the start and hold it across every sheet: solid arrows for gravity, outlined arrows for lateral force, a third weight for foundation reactions. Arrow length can encode nothing at all, but it must not encode magnitude in one frame and direction in the next.
Color follows the same discipline. Two hues plus a neutral gray is usually enough, one for what carries vertical load, one for what resists lateral load, gray for everything that is neither. Add a small key in the corner. A reader decoding your palette has stopped reading your building.
⚠️ Common Mistake to Avoid
Piling gravity, lateral, foundation and circulation information into a single frame. The drawing gets denser without getting clearer, and the jury reads nothing. Split it into a short series instead, one idea per frame, sharing the same viewpoint and line weights. Three legible frames beat one crowded hero image.
Scale and Level of Abstraction
A structural diagram rarely needs a bar scale, but it always needs a consistent level of abstraction. Decide early whether a column is a stick, a rectangle or a profiled section, then keep that decision everywhere. Dropping one detailed wide flange section into a drawing of stick columns tells the reader that column matters more than the others, which is usually not what you meant.
Building scale drives the choice. Around 1:500 a tower reads as core plus perimeter and nothing else. At 1:200 the bay rhythm appears. By 1:50 you are drawing connections, not systems. Our guide to architectural drawing scales covers where those thresholds sit. University structural teaching builds the same instinct through models and case studies rather than formulas, and the MIT course Basic Structural Design, taught by John Ochsendorf, is a useful map of which behaviors are worth drawing.
📌 Did You Know?
Tall buildings are formally sorted by what their structure is made of, not by how they look. The CTBUH tall building criteria classify projects as steel, concrete, composite or mixed-structure based on the main vertical and lateral load resisting elements. Naming that category in your legend is a fast way to sound fluent in a review.
Placing the Diagram on the Sheet
Structural diagrams belong after the concept and program drawings and before the technical sheets. By then the reader knows what the building is for and is ready to ask how it holds together. Too early, the diagram reads as decoration. Too late, it reads as an afterthought.
Give the series its own band, aligned to a shared baseline, with the exploded view leading and the load path frames following at a smaller size. Scattering them between renders breaks the argument apart.
Staying Consistent With the Engineering Model
The fastest way to lose a jury is a diagram that contradicts the plans two sheets later. The diagram cannot show five bays where the plan has six, and if the section carries a transfer beam at level two, the load path drawing has to bend around it. Cross check grid count, core position and every transfer level before printing.
Where a consultant has already run numbers, borrow their vocabulary. Calling a wall a shear wall when the engineer calls it a stability wall costs you credibility in the review and coordination time later.
Structural behavior described here is for drawing and communication purposes. Any structural system should be verified by a licensed engineer for your specific project.
Wrapping Up
Quick Recap:
- Draw the load path as a sequence of handoffs, not one arrow to the ground.
- Give lateral force its own color and arrow style, or half the story goes missing.
- Explode the building into five layers and keep the envelope visibly separate from the structure.
- Pick one level of abstraction, one arrow convention and one palette, then hold them across every frame.
Frequently Asked Questions
What Is the Difference Between a Structural Diagram and a Framing Plan?
A framing plan is a construction document with exact member sizes and dimensions, produced for builders. A structural diagram explains behavior and hierarchy for a general reader, and it may simplify or omit members the framing plan has to state precisely.
How Do You Draw a Load Path Diagram Without an Engineering Model?
Start at the roof and work down, naming each element that receives load and the one it passes load to. Where you cannot name the next element, you have found a gap in the design rather than in the drawing.
Should the Exploded Structural Diagram Include the Facade?
Include it as a distinct, lighter layer when the facade is hung off the frame, because showing what is not structure clarifies what is. Give it more weight only when the envelope carries load, as with load bearing masonry or a structural exoskeleton.
How Many Structural Diagrams Belong on One Sheet?
Two to four usually works: one exploded axonometric plus two or three smaller frames covering gravity, lateral force and any transfer condition. Beyond that the band competes with the plans.
Do Structural Diagrams Need a Scale Bar?
Not usually, since they explain behavior rather than dimension. They do need a consistent level of abstraction and a note of the governing grid, for example a 7.2 meter bay, so the reader can judge span without measuring.
