A window CAD block is a reusable drawing symbol that represents a window opening in plan, elevation and section. In plan it shows the wall break with frame, sash and sill lines. In elevation it gives the sash layout and the opening direction. In section it cuts the head, jamb and sill.
Most students draw their first window as two parallel lines inside a gap in a wall and move on. That works at concept stage and falls apart the moment someone has to build from the sheet. A window is three drawings of one object, and each answers a different question: where is it, what does it look like, how is it put together.
What a Window Block Actually Contains
A window block is not one symbol. A well built set holds the plan symbol that sits in the wall, the elevation showing the face of the window, the section profile used in details, and an attribute carrying the window mark. Each piece sits at a different level of abstraction on purpose: the plan symbol is close to a diagram, the elevation to a picture, the section to a product. Jonathan Ochshorn's working drawings notes at Cornell University describe the drawing set as a hierarchy keyed from the plan, with the scale tightening as you move down. A window block follows the same logic in miniature.
The three views have to agree. As the CUNY City Tech open lesson on elevations puts it, a window shown in elevation must also appear in the plan as a horizontal cut through the wall and in the section as a vertical cut. If the plan says 1800 mm wide and the elevation shows sashes adding to 1600 mm, someone on site picks the wrong one.
How Are Windows Drawn in Plan?
A floor plan is a horizontal slice through the building, conventionally taken around 1200 mm above finished floor level so it passes through most windows rather than under them. That cut plane explains almost every plan convention. The wall is sliced, so it takes the heaviest line and a poché fill, and the window inside becomes frame profile plus glazing line.

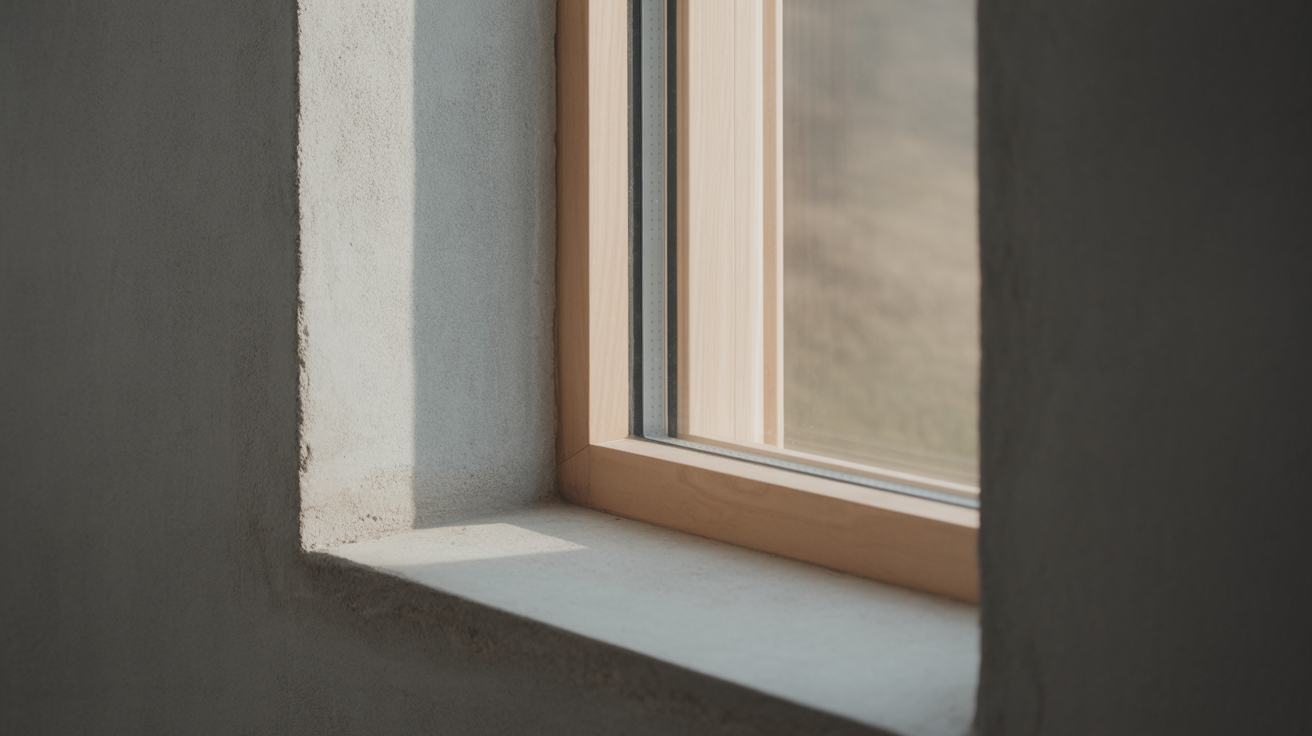

The window symbols floor plan drawings use run like this. The wall breaks at the opening and closes with jamb lines. Two thin lines give the outer and inner faces of the frame, and a thinner line down the middle gives the glazing. A projecting sill runs past the external wall face as a light line with a small return at each end, and in a thick wall the reveal depth is drawn rather than implied.
Line weight does the rest. The cut wall reads first, the frame second, the glass last, and drawing all three at one thickness turns the opening into a smudge. Our guide to line weight in architectural drawing covers the hierarchy that applies inside the block.
📐 Technical Note
Line types and their designations for technical drawings are set out in ISO 128-2:2022, covering continuous, dashed and long dashed dotted lines with the drafting rules for each. Window blocks lean on that vocabulary: continuous thick for the cut wall, continuous thin for frame and glazing, dashed for anything above the cut plane such as a transom light.
Window Elevation Drawing: Showing the Opening Direction
In elevation the window stops being a symbol and becomes a face. You draw the outer frame, the mullions and transoms dividing it, each sash outline and any glazing bars. Proportions matter, because this is the drawing a client reads and a facade contractor sets out from.
Opening direction trips people up. A window elevation drawing shows how each sash opens using two diagonal lines that meet at a point, forming a shallow V across the sash, and the apex of that V sits on the hinge side. A side hung casement gets a V pointing at the hinged jamb, a top hung awning sash gets the apex at the head, a bottom hung sash gets it at the sill. A tilt and turn unit carries both marks at once.
Conventions differ on whether those lines are solid or dashed. In much of European practice, solid means the sash opens toward the viewer and dashed means it opens away, so the same window reads differently on an internal elevation than an external one. Add a two line legend stating which face the elevation is viewed from and what each line means.
⚠️ Common Mistake to Avoid
Drawing a swing arc for a window in plan the way you would for a door. The quarter circle arc is a door convention, and on a window it usually means someone copied the wrong block. Opening direction belongs in the elevation. The exception is a large casement at 1:50 or tighter, where a light arc can show a clash with furniture.
How Windows Appear in Section
A section through a window is three details stacked vertically: head, jamb and sill. The head shows the structural opening above, the frame head profile, flashing and the wall build up. The jamb is a horizontal cut through the side of the frame, drawn beside the vertical section because the cut direction differs. The sill covers the frame sill, the external cill piece, the drip and the fall away.
What sits above the opening is structural, and our explainer on the lintel above a door or window covers the load path. Sections also resolve insulation continuity and frame position within the wall thickness, so this is where a generic block gives way to a project specific detail.
How Scale Changes the Level of Detail
The biggest fault in CAD window libraries is one geometry used at every scale. A block that reads well at 1:20 becomes a black blob at 1:200, and one drawn for 1:100 looks unfinished in a detail. Detail should be earned by scale rather than carried everywhere by default.
Window Detail by Drawing Scale
| Scale | Typical Use | What the Block Shows |
|---|---|---|
| 1:200 | Site and general arrangement plans | Opening as a break in the wall, single glazing line, no frame |
| 1:100 | General arrangement floor plans | Jamb lines, one glazing line, sill projection, window tag |
| 1:50 | Coordination plans and elevations | Frame and sash lines, reveal depth, opening marks in elevation |
| 1:20 | Wall sections and bay studies | Separate frame and sash profiles, glazing thickness, sill fall |
| 1:5 to 1:2 | Head, jamb and sill details | Full profile with seals, thermal break, flashing, fixings |
A working library therefore holds two or three versions of each window. Our guide to architectural drawing scales explains why 1:50 and 1:20 are separate steps, and the same logic drives architectural detail drawings, where a window becomes an assembly.
Building Window CAD Blocks Into a Library
Turning a drawing into a block is easy. Making it behave predictably in someone else's file is the work, and three habits separate a library that saves time from one that creates cleanup jobs.
Draw the geometry on layer 0 with colour, linetype and lineweight set to ByBlock, so the block inherits whatever layer it lands on. Hard coding a layer and colour produces a plan where half the windows print heavy and half print faint. Set the insertion point deliberately too, using one rule library wide. The centre of the opening works, because windows are dimensioned to their centreline and a centre inserted block stays put when mirrored.
Name the layers the block touches to a documented structure. ISO 13567-1:2017 sets out the principles for organising and naming CAD layers, and the AIA layer guidelines inside the US National CAD Standard use the same field based idea. Our article on CAD layer standards shows how to apply one. To start from a tested set, the window CAD block pack and the wider CAD blocks collection are already structured this way.
💡 Pro Tip
Before building forty near identical blocks, build one dynamic block with a width parameter and a stretch action, then add visibility states for the plan, elevation and section views. One file covers a whole window family and the schedule stays tied to a single block name.
Mistakes That Show Up in Review
- Walls left unbroken behind the block, so the wall line runs through the glazing.
- Exploded blocks, which breaks the link to schedules and tags and stops any global change.
- Opening marks left off the elevation, hiding a fixed light from a casement.
- Text inside a block that mirrors into reversed, unreadable tags when it is flipped.
- One block used at both 1:100 and 1:20, giving either an empty detail or an unreadable plan.
Nearly all come from inserting a block and never zooming in to see what it did.
Drawing conventions vary between countries, offices and project standards. Check the standard set out in your project documents before applying any convention described here.
Putting It All Together
Your Next Step: Open the plan you are working on, zoom into one window and check three things. Is the wall broken at the opening, is the glazing line thinner than the frame, does the elevation carry an opening mark. If any fails, fix the block rather than the instance, because the fault is almost certainly repeated on every floor.
Frequently Asked Questions
What Is a Window CAD Block?
It is a reusable group of drawing objects representing a window in a CAD file. A good one includes the plan symbol, an elevation view and often a section profile, plus attributes such as the window mark and size.
How Are Windows Shown on a Floor Plan?
The wall is cut at roughly 1200 mm above floor level, so the window appears as a break closed by jamb lines. Thin lines inside the opening show the frame faces and a thinner line shows the glazing. A projecting sill is drawn as a light line past the external wall face.
How Do You Show Which Way a Window Opens?
Opening direction goes in the elevation, not the plan. Two diagonal lines cross the sash and meet at a point on the hinge side, forming a V. Side hung sashes point left or right, top hung sashes point up to the head, bottom hung sashes point down to the sill.
Should Window Blocks Be Drawn on Layer 0?
In most CAD workflows, yes. Geometry on layer 0 with colour and linetype set to ByBlock lets the block inherit the properties of the layer it is inserted onto, keeping one block usable across existing, new and demolition layers.
