A setback in building design is the minimum distance a structure must keep from a property line, a street, or another reference line, as set by the local zoning code. Setbacks create front, side and rear yards at ground level and, on taller buildings, upper-level stepbacks that pull the walls back from the street as the building rises.
Setbacks look like a few dimension strings on a drawing, yet they decide where a house can sit, how far an addition can grow, and why so many Manhattan towers taper like stacked boxes. Here is how they work, what real codes require, and what happens when a lot cannot comply.
What Is a Setback in Building Design?
A setback is a required open distance measured from a reference line, usually a lot line, inward to the nearest permitted face of a building. The area between the lot line and that distance is the required yard, and its inner edge is called the setback line or build line. Anything that is not specifically allowed must stay behind it.
New York City's Glossary of Zoning Terms from the Department of City Planning separates the two ideas clearly. It defines a yard as "a required open area along the lot lines of a zoning lot which must be unobstructed from the lowest level to the sky, except for certain permitted obstructions," and it reserves the word setback for "the portion of a building that is set back above the base height." In everyday practice, "setback" covers both.
Codes set these distances for reasons that have barely changed in a century: daylight and air, privacy, room for trees and stormwater, a consistent street edge, fire safety and utility access. Asking which goal a number serves tells you where a variance argument might succeed.
Types of Setbacks: Front, Side, Rear and Upper-Level
Most zoning codes describe four kinds of setback: three horizontal distances at grade, and a fourth that works in section as the building gets taller.
Front Yard Setback

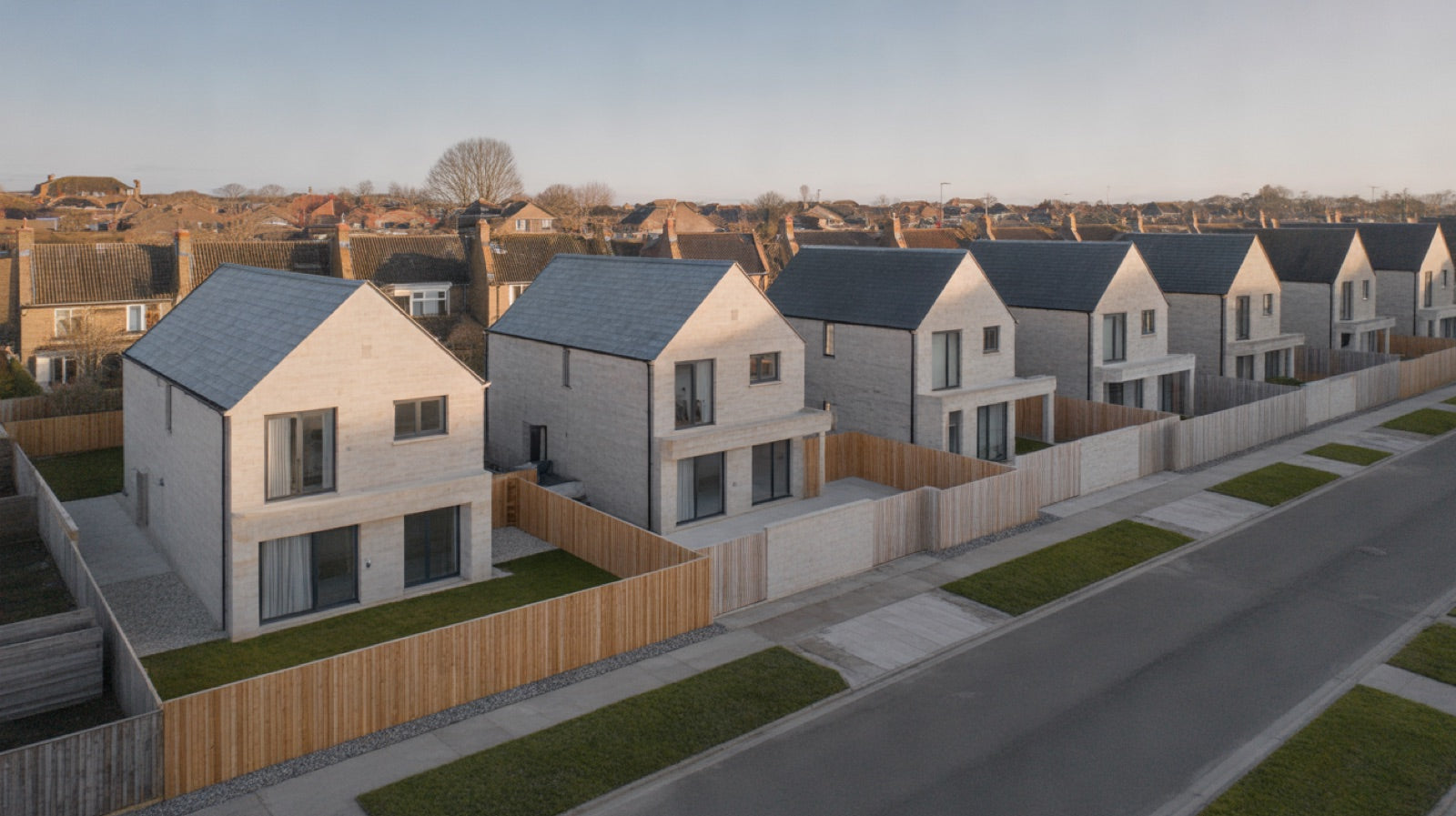

The front setback runs along the full width of the front lot line, the edge facing the street. It shapes the streetscape more than any other rule because every house on the block lines up behind it. Some codes ask for a fixed number; others tie it to the neighboring buildings. On a corner lot, NYC's glossary treats any yard running the full length of a street line as a front yard, which means a corner lot often has two front setbacks and noticeably less buildable area than its mid-block neighbor.
Side Yard Setback
Side yards run along the side lot lines between the front and rear yards. They are usually the narrowest setback, and in many cities they are measured as an average, so one side can be tighter if the other is wider. Side yards are also where zoning meets the building code: the closer a wall gets to a lot line, the more openings are restricted and fire-rated construction is required. Our guide to fire separation distance explains why a wall that meets zoning can still fail the building code.
Rear Yard Setback
The rear yard spans the full width of the rear lot line. It is typically the deepest of the three because it protects shared mid-block open space. Rules often relax where a lot backs onto an alley.
Upper-Level Setbacks and Stepbacks
On mid-rise and high-rise buildings, codes add setbacks above a certain height. The lower part of the building, often called the base, podium or street wall, rises to a maximum base height, and the floors above must step back. Many North American cities call this a stepback to distinguish it from the ground-level setback. Toronto is a good example: a 2016 City Planning staff report on tall building setbacks describes the city's 2013 Tall Building Design Guidelines as calling for a minimum 3-metre setback of the tower from the face of the base building where it faces a street, and 12.5 metres or more from side and rear property lines.
⚠️ Common Mistake to Avoid
Many students copy setback numbers from an old handout or a blog post. Codes change: New York City's 2021 glossary still describes a 30-foot minimum rear yard in residential districts, while the current Zoning Resolution, amended in December 2024, allows 20 feet for many buildings. Always confirm the number in the code section itself and note the effective date on your drawing.
Setback Types at a Glance
The table below summarizes what each setback controls and where you will usually find it.
| Setback Type | Measured From | Main Purpose | Typical Context |
|---|---|---|---|
| Front yard | Front lot line or street line | Consistent street edge, landscaping | Houses and low-rise residential |
| Side yard | Side lot lines | Light, privacy, access, fire separation | Detached buildings |
| Rear yard | Rear lot line or alley | Shared mid-block open space | Almost all residential zones |
| Upper-level stepback | Face of the base or street wall | Daylight on the street, wind, scale | Mid-rise and tall buildings |
Real Setback Numbers From Two Cities
There is no universal setback. Two current codes show how much the numbers, and the logic behind them, vary.
Seattle: Neighborhood Residential Zone
The Seattle Department of Construction and Inspections publishes a Neighborhood Residential zoning summary that points back to Chapter 23.44 of the Seattle Municipal Code. It lists a front setback of 15 feet on lots with one or two dwelling units and 10 feet on lots with three or more. Rear setbacks follow the same 15 and 10 foot split where there is no alley, and drop to 0 feet where the rear lot line abuts an alley. Side setbacks are 5 feet on average with a 3-foot minimum.
Seattle also links setbacks to other rules. The summary allows a height of 42 feet instead of 32 feet (plus pitched roof allowances) on sites with three or more principal units and a front setback of at least 20 feet. A deeper front yard buys extra height, a trade worth testing early in a massing study.
New York City: Rear Yards Under the Zoning Resolution
New York's rules are more layered. Under Zoning Resolution Section 23-342, effective December 5, 2024, a detached building in a residence district needs a rear yard at least 20 feet deep for the portions at or below 75 feet in height and 30 feet for portions above. Semi-detached and attached buildings on lots narrower than 40 feet need 30 feet. Shallow lots get relief: where a lot is less than 95 feet deep and that condition existed on December 15, 1961, the rear yard may shrink by six inches for each foot of missing depth, though never below 10 feet.
Above grade, contextual districts set back by a specified distance from the street wall, while height factor districts use a sky exposure plane, "a virtual sloping plane that begins at a specified height above the street line and rises inward over the zoning lot."
📐 Technical Note
A required yard is not always empty. NYC's zoning glossary lists balconies, trellises, air conditioners, gutters and fences as permitted obstructions in required yards, and roof structures such as elevator bulkheads, water tanks and parapets as items that may penetrate setback areas and sky exposure planes. Check your own code's projection list before placing eaves, bay windows or stairs inside a setback.
Why Did Cities Start Requiring Setbacks?
Cities started requiring setbacks to keep daylight and air on the street as buildings grew taller and denser. The clearest early case is New York. Its Building Zone Resolution, adopted by the Board of Estimate and Apportionment on July 25, 1916, regulated "the height and bulk of buildings" and "the area of yards, courts and other open spaces" across the whole city.
The 1916 text tied height to street width. In a "one times district," no building could rise higher than the width of the street at the street line, but for each foot it set back, two feet were added to its height limit. In a "two and one-half times district," the starting height was two and a half times the street width and each foot of setback earned five feet of height. Developers responded by stacking ever smaller volumes, which produced the tiered "wedding cake" profile of 1920s Manhattan.
📌 Did You Know?
The 1916 resolution included a tower exception. Once a building's floor plate shrank to no more than 25 percent of the lot area, the portion above that level could "be erected to any height," as long as it kept the required distance from the street. That single clause explains why so many setback skyscrapers end in a slender, unlimited tower.
The core trade from 1916 still shows up in today's codes: give the street more open space, and the code gives back height, floor area or flexibility. If you want to see how floor area interacts with these envelopes, our step-by-step guide on how to calculate floor area ratio works through the math.
How to Read Setbacks on a Site Plan
Setbacks become real on the site plan, and a vague sheet invites a correction notice. If you are new to the drawing type, start with our overview of what a site plan shows, then use the checklist below.
- Find the property lines first. They are usually heavy dash-dot lines with bearings and distances taken from the survey. Every setback is measured from these, so a wrong lot line means every dimension is wrong.
- Locate the setback lines. Most drafters draw them as a lighter dashed line offset inside the property line and label each one, for example "15'-0" front setback per SMC 23.44.090."
- Check the dimension strings. A compliant plan dimensions the shortest perpendicular distance from each lot line to the nearest part of the building, including any projection the code counts.
- Read the zoning data table. It should list the zone, the required setbacks, the proposed setbacks, lot coverage and height, with code section numbers.
- Look for easements and other lines. Utility easements, sight triangles at corners and shoreline buffers can push the buildable area further in than the zoning setbacks alone.
If you draft site plans yourself, ready-made CAD blocks for north arrows, trees and vehicles keep the sheet clean so the setback lines stay legible.
💡 Pro Tip
Before sketching anything, shade the buildable envelope: offset each lot line by its setback, trim the corners, and hatch what remains. Then add the height limit and any stepback in section. Designing inside that shape from day one beats shaving a finished plan later.
Setback Variances and Other Ways Around the Rules
When a lot is so narrow, shallow or irregular that the standard setbacks leave almost nothing to build on, owners can apply for a variance. A variance is a formal exception to a dimensional rule, granted by a board of zoning appeals or similar body after public notice and a hearing.
The bar is high. In New York, Zoning Resolution Section 72-21 requires the Board of Standards and Appeals to make five findings before granting one:
- The lot has unique physical conditions, "including irregularity, narrowness or shallowness," that create practical difficulties.
- Strict compliance would prevent a reasonable return on the property (this finding does not apply to non-profit organizations).
- The variance will not "alter the essential character of the neighborhood or district."
- The hardship was "not created by the owner or by a predecessor in title."
- The request is "the minimum variance necessary to afford relief."
Most US jurisdictions use similar tests. Two lessons follow: wanting a bigger house is not a hardship, because the problem has to come from the land itself, and you should ask for the smallest exception that solves it, since the board can grant less than you request.
A variance is also different from a use approval. If your project needs permission for an activity the zone only allows case by case, that is the territory of a conditional use permit, not a setback variance. Older buildings that predate current rules can usually stay as legal nonconforming structures, as long as alterations do not make the nonconformity worse.
Building codes and zoning regulations vary by jurisdiction and change over time. Always confirm setback requirements with your local planning department before you design or build.
Setbacks are one of the first things to map on a new site; our free Architectural Site Analysis eBook covers the rest of that analysis.
What This Means for Your Next Project
Setbacks define the shape every other design decision has to fit inside. Learn the numbers for your zone, check which projections are allowed, and treat a variance as a last resort.
Your Next Step: Pick a lot you know, look up its zone in the city's online zoning map, and draw the buildable envelope with the current setback numbers and their code section beside each line.
