Reinforced concrete is a composite material that joins concrete, which is strong under compression, with steel bars that are strong under tension. The steel carries the pulling and bending forces that would crack plain concrete on its own, so the two materials act as a single structural unit in beams, slabs, columns, and foundations.
Almost every modern building, bridge, and tunnel you pass relies on this pairing. On its own, concrete handles heavy loads pressing down on it but breaks apart when stretched or bent. Steel does the opposite. Put them together and you get a material that is stiff, strong in several directions, and durable enough to last for decades. This article explains what reinforced concrete is, how the concrete and steel share the work, what goes into it, and where it shows up in construction.

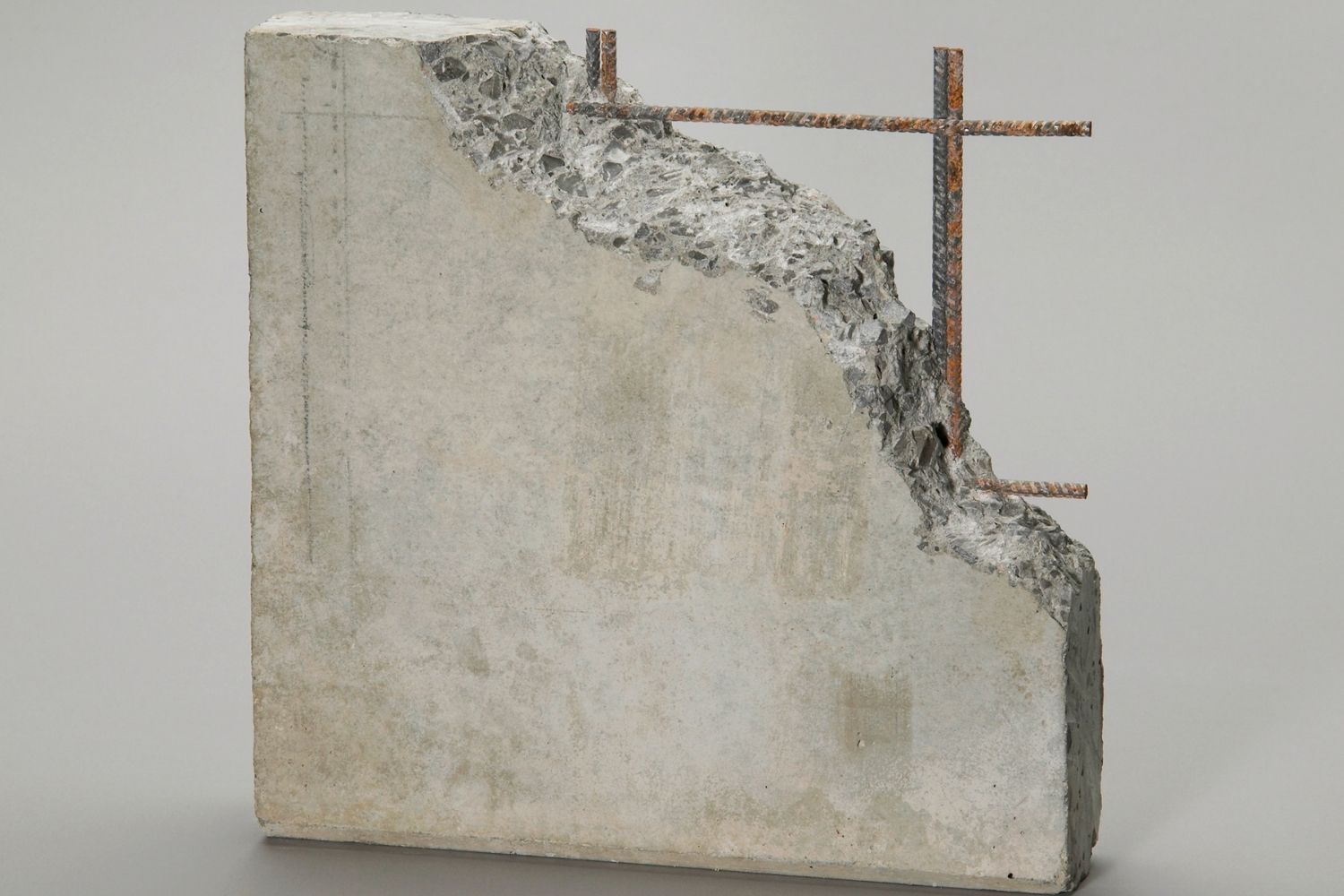

What Is Reinforced Concrete?
Concrete is a mix of cement, water, and aggregate such as sand, gravel, or crushed stone that hardens into an artificial stone. It is excellent at resisting compression, the squeezing force that pushes material together. The problem is tension, the stretching force. Concrete is roughly ten times weaker in tension than in compression, so a plain concrete beam cracks and snaps as soon as it bends under load.
Reinforced concrete fixes that weakness by casting steel inside the concrete before it sets. Steel is strong and ductile in tension, so it takes over wherever the concrete would otherwise pull apart. The result is sometimes called ferroconcrete, and Britannica defines reinforced concrete as concrete in which steel is embedded so the two materials act together in resisting forces. The steel usually takes the form of bars, known as rebar, or welded wire mesh.
How Does Reinforced Concrete Work?
The idea behind reinforced concrete is to let each material do what it does best. When a structural member carries load, different parts of it feel different forces. Concrete handles the compression zones, and steel handles the tension zones. Three properties make this partnership work.
First is the difference in strength. Concrete resists compression well but fails quickly in tension, while steel resists tension well. Casting them together covers both cases. Second is the bond between them. Rebar is rolled with ridges, called deformations, that grip the surrounding concrete and stop the bar from slipping. Because of this bond, load transfers smoothly from the concrete into the steel and back again.
Third is a quiet coincidence of physics. Steel and concrete expand and contract at almost the same rate when temperatures change. If they behaved very differently, daily heating and cooling would slowly break the bond between them. Instead, they move together. The alkaline chemistry of hardened concrete also forms a thin protective film on the steel, which slows corrosion as long as the bars stay buried deep enough.
📐 Technical Note
In structural design, the concrete cover over the reinforcing steel is specified to protect the bars from corrosion and fire. The American Concrete Institute's ACI 318 code sets minimum cover values, often around 40 mm for surfaces exposed to weather and about 75 mm for concrete cast directly against soil. Common deformed bars carry a specified yield strength of 420 MPa, known as Grade 60.
Why Concrete and Steel Work Together
The table below shows how the strengths and weaknesses of each material combine inside reinforced concrete.
| Property | Plain Concrete | Steel | Reinforced Concrete |
|---|---|---|---|
| Compressive strength | High | High | High |
| Tensile strength | Very low | High | High, carried by the steel |
| Behavior in bending | Cracks and fails suddenly | Bends, can buckle on its own | Resists bending as one unit |
| Fire resistance | Good | Loses strength when hot | Good, concrete shields the steel |
| Cost for the strength gained | Low | Higher | Balanced and widely affordable |
What Happens When a Beam Bends
Picture a simple beam supported at both ends with a load pressing down in the middle. The top half of the beam shortens and goes into compression, while the bottom half stretches and goes into tension. In a plain concrete beam, the stretched bottom face cracks first and the beam fails with little warning. In a reinforced beam, designers place steel bars near the bottom, exactly where the tension is highest. The bars hold the tension side together, cracking stays controlled, and the beam carries far more load before it gives way. Over a support, where the beam bends the other way, the tension shifts to the top, so the bars move to the top there.
What Are the Main Components of Reinforced Concrete?
Two systems make up every reinforced concrete element: the concrete matrix and the steel reinforcement inside it.
The Concrete Matrix
Concrete starts as a wet mix of Portland cement, water, fine aggregate such as sand, and coarse aggregate such as gravel or crushed stone. The cement and water react in a process called hydration, which binds the aggregate into a solid mass. The ratio of water to cement controls much of the final strength, since less water generally gives stronger, denser concrete, though the mix still has to stay workable enough to place and compact. Once cast, concrete keeps gaining strength for weeks and reaches most of its design strength at around 28 days.
Steel Reinforcement
The most common reinforcement is deformed steel bar, or rebar, tied into a cage or grid before the concrete is poured. Welded wire mesh is used in slabs and walls where loads spread out over a wide area. For longer spans and heavier loads, engineers often turn to prestressing, where steel tendons are tensioned and that force is locked into the concrete. In post-tensioning, the tendons are stressed after the concrete hardens, a method common in bridge girders and large floor slabs. Each technique keeps the steel in tension so the concrete stays in compression, the state it handles best.
⚠️ Common Mistake to Avoid
A frequent error on site is setting the reinforcement too close to the surface or leaving out spacers, which cuts the concrete cover below what the design calls for. With too little cover, moisture and chlorides reach the steel, it corrodes and expands, and the surrounding concrete cracks and breaks away. Using proper bar chairs and spacers to hold the specified cover prevents most of this damage.
Where Is Reinforced Concrete Used?
Reinforced concrete appears in nearly every category of construction because it can be cast into almost any shape and carries load in several directions at once. Common uses include building frames of columns, beams, and floor slabs, foundations and footings that spread building loads onto the ground, bridges and elevated roadways, retaining walls, dams, and water tanks, plus pavements, tunnels, and marine structures. Its ability to be shaped on site, combined with solid fire resistance, makes it a default choice for structures that need to stand for a long time.
🔢 Quick Numbers
- About 4 billion tonnes of cement are produced worldwide each year (U.S. Geological Survey, Mineral Commodity Summaries 2024).
- Cement production accounts for roughly 8 percent of global carbon dioxide emissions (Chatham House, Making Concrete Change, 2018).
- China produced close to 1.9 billion tonnes of cement in 2024, near 47 percent of the world total (U.S. Geological Survey, 2024).
That scale of use is also why the material draws so much attention on the environmental side, a point worth keeping in mind when you choose a structural system early in a project.
💡 Pro Tip
When detailing reinforced concrete beams, place the main tension bars where the member actually stretches: near the bottom at midspan and near the top over supports. Getting bar position right matters more than simply adding extra steel, since misplaced reinforcement does little to control cracking where the stresses are highest.
What Are the Advantages and Limitations?
Reinforced concrete offers a strong set of benefits. It carries heavy loads, resists fire better than bare steel, stands up to weather and water, and can be shaped to fit architectural ideas. It is also made from materials that are available almost everywhere, which keeps it affordable in most regions.
The material has real drawbacks too. It is heavy, which adds to foundation costs. It can crack when it is poorly designed, badly cured, or overloaded. The embedded steel can corrode if water and chlorides reach it, which is the main reason older bridges and parking structures need repair. There is also a climate cost, because cement production is energy intensive and releases carbon dioxide both from burning fuel and from the chemical reaction that creates cement. A widely cited Chatham House report placed cement at around 8 percent of global carbon emissions, which has pushed the industry toward lower carbon mixes and recycled content. Designers weighing structural options often compare it against other sustainable material choices early on, and a resource like this guide to sustainable architecture covers how to balance strength against lower impact.
Design and detailing are governed by codes. In the United States, the American Concrete Institute's ACI 318 code sets the rules for materials, strength, and bar placement, and similar standards apply in other regions. Following them is what keeps the corrosion and cracking risks under control across a structure's life. National figures on how much cement feeds this demand are tracked by the U.S. Geological Survey.
Frequently Asked Questions
What is the difference between concrete and reinforced concrete?
Plain concrete is just the cement, water, and aggregate mix, and it is strong only in compression. Reinforced concrete has steel cast inside it, which adds tensile and bending strength. That difference is what lets reinforced concrete be used for beams, floors, and other members that have to resist stretching forces.
How long does reinforced concrete last?
Well designed and well maintained reinforced concrete can last 50 to 100 years or more. Lifespan depends mostly on whether the steel stays protected. Adequate concrete cover, quality mixes, and good crack control keep moisture away from the rebar and extend service life by a wide margin.
Why does the steel inside concrete not rust right away?
Hardened concrete is highly alkaline, and that chemistry forms a thin passive film on the steel that blocks corrosion. As long as the steel has enough cover and the concrete stays sound, the film holds. Corrosion mainly begins when cracks, chlorides from de-icing salt or seawater, or carbonation break down that protection.
Can reinforced concrete be recycled?
Yes. Old concrete can be crushed and reused as aggregate for new concrete or as a road base, and the steel rebar is separated with magnets and recycled like other scrap steel. Recycling cuts waste and lowers demand for new raw materials, though it does not erase the carbon cost of producing fresh cement.
The Bigger Picture
Reinforced concrete works because it turns two ordinary materials into a partnership that is stronger than either one alone. Concrete takes the compression, steel takes the tension, and the bond between them lets a beam or column behave as a single piece. That simple idea holds up most of the built world around you.
Bottom Line: If you remember one thing, make it this. Concrete is strong when squeezed and weak when stretched, and steel is added exactly where the stretching happens. Everything else, from bar placement to concrete cover, exists to protect and support that core relationship.
