Post-tensioned concrete is a reinforcing method where high-strength steel tendons are pulled tight after the concrete has hardened, squeezing the member into compression. That built-in compression lets the concrete resist tension loads it normally cracks under, so engineers can build longer spans, thinner slabs, and more open floor plates.

Concrete is strong in compression but weak in tension, which is why plain slabs crack and sag under load. Post-tensioning flips that weakness on its head. Instead of relying only on passive rebar that activates after a crack forms, the tendons actively press the concrete together from the moment they are stressed. The result is a structural system that performs more like a spring under load, recovering its shape and keeping cracks closed. You see it in parking garages, high-rise floor plates, transfer beams, bridges, and slab-on-grade foundations.

How does post-tensioned concrete work?

The process starts before any concrete is poured. Workers lay out steel tendons, usually seven-wire strands inside plastic or metal ducts, in a carefully drawn profile across the formwork. The strands are anchored at one end and left accessible at the other. Concrete is then cast around the ducts and allowed to cure until it reaches a specified strength, commonly around 75 percent of its design value.

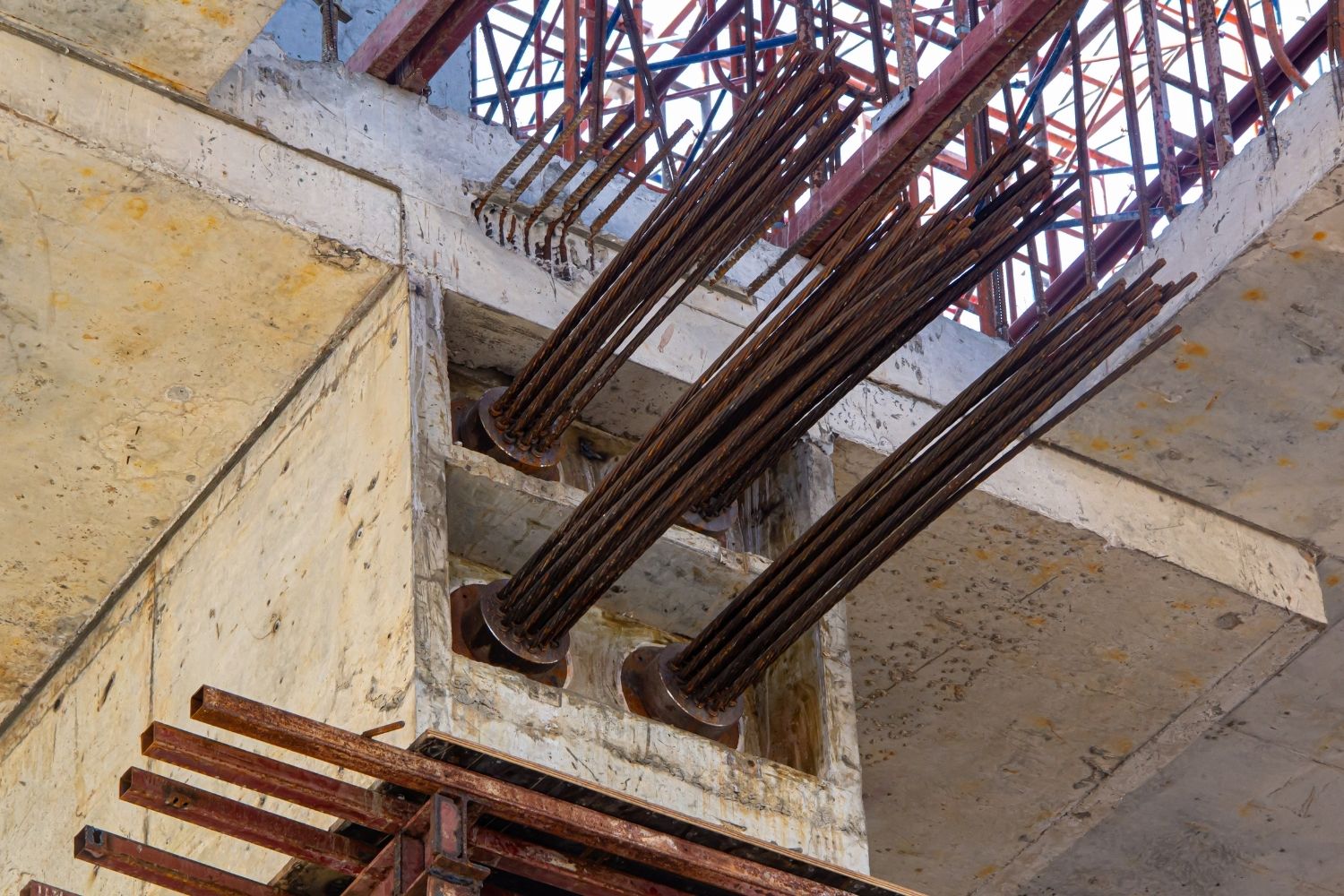

Once the concrete is strong enough, a hydraulic jack grips the exposed strand ends and pulls them to a precise force, often hundreds of kilonewtons per tendon. The stretched strands are locked off with wedge anchors that bear against steel anchor plates cast into the concrete edge. When the jack releases, the tendons try to shorten and transfer their stored force straight into the surrounding concrete as compression. The member is now prestressed and ready to carry load.

That sequence explains the name. The tensioning happens after the concrete is in place, so the steel is stressed post-cast. It also means the work is done on the actual structure rather than in a factory, which is why post-tensioned concrete suits cast-in-place floors that would be impractical to precast and transport.

The role of the tendon profile

The geometry of the tendon path is what makes post-tensioning so efficient. Engineers drape the strands in a gentle curve, low at midspan and high over supports, so the cable mirrors the bending the slab will experience. As the tendon is tensioned, that curve produces an upward balancing force along the span, lifting the slab against gravity loads before the floor is ever occupied. This is called load balancing, and it is the core reason post-tensioned floors can stay flat across long distances with little visible deflection.

Bonded versus unbonded systems

Post-tensioning comes in two forms, and the difference comes down to how the tendon interacts with the surrounding concrete. Both are recognized in the ACI/PTI structural code, and many projects use each in different parts of the same building.

In a bonded system, the strands sit inside a hollow duct. After stressing, the duct is filled with cement grout that hardens around the strands and locks them to the concrete along their full length. Bonded tendons are common in bridges, transfer beams, and structures where the strand must keep working even if it is cut or damaged at one point.

Unbonded tendons are coated in corrosion-inhibiting grease and sheathed in a plastic cover, so they slide freely inside the concrete and only transfer force at the anchors. They are lighter, faster to install, and dominate residential and commercial floor slabs. The trade-off is that an unbonded tendon relies entirely on its end anchorages, so anchorage detailing and corrosion protection carry more weight in the design.

Post-tensioning compared to pre-tensioning and conventional reinforcement

People often confuse post-tensioning with pre-tensioning because both fall under the umbrella of prestressed concrete. The order of operations is the real divider: pre-tensioning stresses the strands before the concrete is cast, while post-tensioning stresses them after it cures. That timing changes where each method makes sense.

Comparison of reinforcement methods

The table below sets the three main approaches side by side on the factors that drive design and construction decisions.

Factor	Post-tensioned	Pre-tensioned	Conventional rebar
When tendons are stressed	After concrete cures, on site	Before concrete is cast, in a plant	Never, rebar is passive
Where it is made	Cast in place at the building	Precast factory, then shipped	Cast in place or precast
Tendon shape	Curved profile possible	Usually straight	Bars follow member, no prestress
Typical spans	Long, with thin slabs	Moderate, repetitive units	Short to moderate
Best fit	Floor plates, garages, bridges	Beams, planks, double-tees	Foundations, walls, small spans

Conventional reinforcement still has its place. For a footing, a basement wall, or a short-span beam, passive rebar is simpler and cheaper, and the cracking it allows is usually within acceptable limits. Post-tensioning earns its keep when spans grow, when floor depth must stay shallow, or when crack-free performance matters, such as in water-retaining structures and exposed parking decks.

Why architects and engineers choose it

The clearest payoff is structural reach. Because the tendons carry tension that plain concrete cannot, post-tensioned slabs span farther on fewer columns. That opens up flexible interiors, fewer footings, and floor-to-floor heights that can stack more usable levels into the same building envelope. On a tower, shaving a few centimeters off every slab adds up to entire extra floors within a fixed height limit.

Crack control is the second major benefit. The permanent compression keeps hairline cracks closed, which protects the embedded steel from moisture and chloride attack. That durability advantage is one reason post-tensioning is standard for parking garages and bridge decks exposed to road salt. If you are weighing material choices across a project, our look at how to balance performance and durability in sustainable flooring materials and techniques covers a similar set of trade-offs at the finish level.

Common building applications

Floor slabs in offices, apartments, and hotels are the most widespread use. A post-tensioned flat plate can span roughly 8 to 12 meters between columns with a slab only 200 to 250 millimeters thick, which keeps interiors open and stacks more floors into a tower. Parking structures lean on the same advantages, since long clear spans let cars park without columns in the way and the crack control fends off salt-driven corrosion.

Beyond buildings, post-tensioning carries much of the world's bridge and infrastructure work. Segmental bridges are assembled from precast sections that are squeezed together with tendons threaded through the whole assembly, turning separate pieces into one continuous span. Water tanks, silos, and transfer beams that pick up columns over open lobbies round out the list, each one trading on the same ability to keep concrete in compression where it would otherwise crack.

There is also a sustainability angle. Thinner slabs use less concrete, and concrete production is a heavy carbon source, so reducing the volume per floor lowers the embodied carbon of the structure. The same structural logic that lets engineers thin a slab is the kind of thinking captured in diagrams that explain a building's load path, a topic explored in our guide to architecture concept diagrams worth studying.

Capital Gate is a strong example of how far the method can be pushed. The tower's dramatic lean places relentless eccentric load on its core, and engineers used vertical post-tensioning to keep that core in compression and resist the overturning forces. Without the active prestress, a leaning concrete core at that scale would crack on the tension side and lose stiffness.

What to watch during design and construction

Post-tensioned concrete rewards precision and punishes guesswork. The tendon profile, the stressing sequence, and the anchorage zones all need careful detailing, because the entire system depends on forces that are invisible once the concrete is poured. Anchorage zones in particular see concentrated bursting stresses and require dedicated reinforcement around the anchor plates.

Stressing records matter as much as the drawings. Field crews measure both the jacking force and the strand elongation, then compare the two against calculated values. A mismatch can signal friction losses, a blocked duct, or a slipping wedge, any of which changes the prestress the structure actually receives.

Long-term performance hinges on protecting the steel. Unbonded tendons rely on their grease and sheathing plus sealed anchor caps, while bonded tendons depend on fully grouted ducts with no voids. Corrosion of a prestressing strand is far more serious than corrosion of ordinary rebar, since the strand is carrying a permanent high load. This is why inspection and durability detailing get so much attention in the governing codes.

Technical specifications should be verified by a licensed structural engineer for your specific project, since prestress design depends on loads, geometry, and local building codes.

Where the technology stands today

Post-tensioning has moved from a specialist technique to a mainstream tool for medium and long spans. The authoritative reference is the Post-Tensioning Institute, which sets certification standards for plants, personnel, and field installation across buildings, bridges, and slabs-on-ground. On the design side, the joint ACI/PTI CODE-320 for post-tensioned structural concrete from the American Concrete Institute gives engineers consensus rules for materials, design, and detailing. For a broader technical background on the underlying mechanics, the overview of prestressed concrete traces how pre-tensioning and post-tensioning developed and where each is used.

The active push in the field is toward smarter monitoring and tighter durability. Sensors embedded near anchorages can track force over time, and improved grouting practices have cut the void problems that troubled older bonded structures. The mechanics have not changed, but the confidence engineers can place in a finished post-tensioned member keeps rising.

Going forward, the appeal of post-tensioned concrete is less about novelty and more about doing more with less. As pressure grows to cut concrete volumes and embodied carbon without giving up span or durability, a system that puts every kilogram of concrete to harder work fits the moment. The question for any project is not whether post-tensioning is impressive, but whether the spans, loads, and exposure justify the added coordination it demands.
