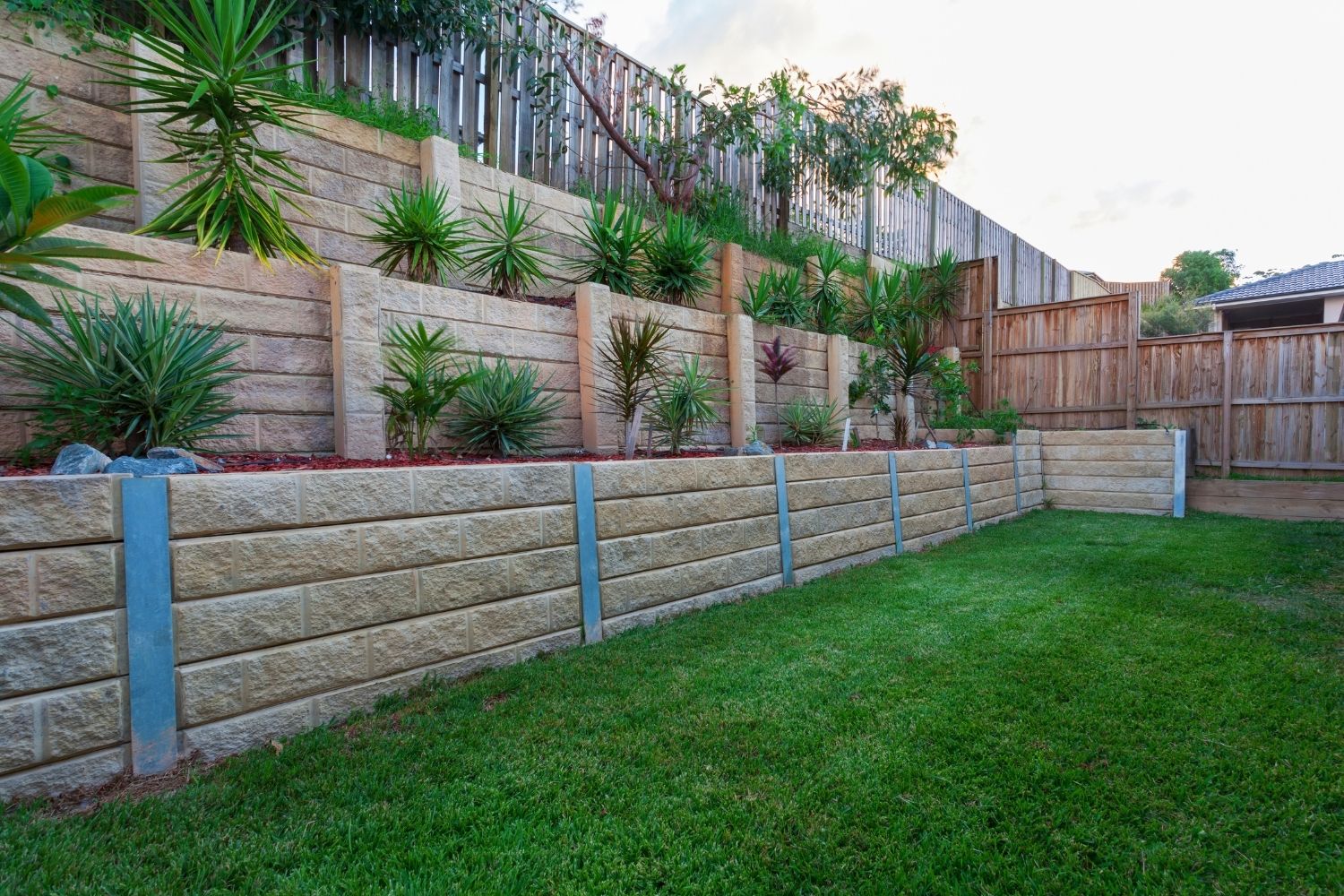

A retaining wall is a structure that holds back soil or rock to keep ground at two different heights on either side of it. Retaining wall types include gravity, cantilever, sheet pile, anchored, and mechanically stabilized earth walls. Each handles different heights, soil conditions, and site constraints, so the right choice depends on load, drainage, and space.

Anyone working with a sloped lot eventually meets the same problem: soil wants to move downhill, and something has to stop it. A retaining wall does that job by resisting the lateral pressure soil exerts when it cannot rest at its natural angle. Get the type and detailing right and the wall disappears into the site for decades. Get it wrong and you see bulging faces, cracked stems, and saturated backfill within a few seasons. This guide breaks down how these walls work, the five main categories, and how to match a wall to the conditions in front of you.

What does a retaining wall actually do?

A retaining wall resists lateral earth pressure, the sideways push that retained soil applies to any vertical surface holding it in place. That pressure grows with height and increases sharply when water collects in the backfill, because saturated soil is heavier and water adds its own hydrostatic load. A wall that ignores drainage can face double the force it was designed for.

Three failure modes drive almost every design decision. A wall can slide forward along its base, it can overturn by rotating about its toe, or the soil beneath can fail in bearing. Engineers check all three, then add a safety factor. The wall also has to handle any surcharge, the extra load from a driveway, parked vehicle, or building sitting near the top of the slope.

This is also where retaining walls connect to wider site strategy. The way a building meets uneven ground, steps down a hillside, or carves out a level terrace is a design move as much as an engineering one, an idea you can see at work in many of the section-based architectural concept diagrams that show buildings extending into the landscape.

The five main retaining wall types

Retaining walls fall into a handful of structural families. They differ in how they generate resistance: some rely on sheer mass, others on a structural footing, and others on reinforcement buried inside the soil itself. Knowing the mechanism behind each one makes the selection logical rather than a guess.

Gravity walls

A gravity wall resists soil pressure with its own weight. Stone, mass concrete, gabion baskets filled with rock, and segmental concrete blocks all fall into this group. There is little or no steel reinforcement; the mass does the work. Because the wall has to be heavy and wide at the base, gravity walls become uneconomical past roughly 3 meters of retained height. They suit garden terraces, low landscape steps, and rustic stone retaining details where the look matters as much as the function.

Cantilever walls

A cantilever wall is the workhorse of mid-height retention. It uses reinforced concrete shaped like an inverted T or an L, with a vertical stem rising from a horizontal base slab. The weight of the backfill sitting on the heel of that base helps hold the wall down and resist overturning, so the structure can be far thinner than a gravity wall of the same height. Cantilever walls handle roughly 3 to 8 meters efficiently and are common along roads, basements, and split-level sites.

Sheet pile walls

Sheet pile walls are made of interlocking steel, vinyl, or precast concrete sections driven vertically into the ground. They work well in soft soil and tight spaces where there is no room for a wide footing. A cantilevered sheet pile draws its stability from the depth it is embedded below the excavation line, which is why a rule of thumb often puts about a third of the pile above ground and two thirds below. They appear frequently in waterfront work, cofferdams, and temporary excavation support.

Anchored walls

An anchored wall takes any of the previous forms and adds tie-backs: cables or rods grouted deep into stable soil or rock behind the wall, then tensioned. Those anchors carry load that the wall alone could not, which lets a slim structure hold back tall or heavily loaded slopes. Anchored systems show up where height is extreme, where space behind the wall is limited, or where an existing wall needs reinforcement.

Mechanically stabilized earth (MSE) walls

An MSE wall reinforces the backfill itself. Layers of geosynthetic grid or steel strips are laid into the compacted soil and connected to a facing of precast panels or modular blocks. The reinforced soil mass acts as one large gravity block, so MSE walls handle great heights economically and tolerate minor settlement better than rigid concrete. They are the standard choice for highway embankments and large grade changes, and the design rules behind them are set out in the FHWA manual on the design and construction of mechanically stabilized earth walls.

How the retaining wall types compare

The table below summarizes where each type fits, based on typical practice and the height ranges referenced in transportation agency design manuals such as the Washington State DOT manual chapter on retaining walls and reinforced slopes. For broader definitions of each category, the engineering overview on retaining wall construction and alternatives is a useful reference.

Wall Type	How It Resists Load	Typical Height	Best For
Gravity	Self weight of the mass	Up to about 3 m	Garden terraces, low landscape walls
Cantilever	Footing plus backfill weight	About 3 to 8 m	Roads, basements, split-level sites
Sheet pile	Depth embedded in soil	Moderate, soft soils	Waterfronts, tight excavations
Anchored	Tensioned tie-backs	Tall or high-load	Extreme heights, limited rear space
MSE	Reinforced soil mass	Very high, economical	Highway embankments, large grade changes

When should you use each retaining wall?

Choosing a wall starts with three questions: how much height are you holding, what is the soil like, and how much room do you have behind the face? Height narrows the field first. Below a meter or so on stable ground, a dry-stacked stone or segmental gravity wall is often enough and reads well in a garden. Once you pass two to three meters, mass alone gets bulky and expensive, which is where cantilever concrete earns its place.

Soil and water conditions decide the next step. Soft, wet, or waterfront ground favors sheet piles, which need no wide footing and can be driven where a spread foundation would settle. Where the slope is tall or a structure sits close behind the wall, anchored systems add capacity without thickening the wall. For long, high embankments where cost per square meter matters, MSE walls usually win because they use the on-site soil as part of the structure.

Space and appearance matter too. Gravity and MSE walls need depth behind the face for their mass or reinforcement, so they suit open sites. A cantilever footing reaches forward under the retained soil, which can conflict with property lines. Anchored and sheet pile walls keep the smallest footprint, useful in dense urban lots.

Materials and detailing that make a wall last

The structural type is only half the story; the materials and the way they meet water determine whether a wall survives. Reinforced concrete gives cantilever and anchored walls their tensile strength, with steel placed on the tension face of the stem. Segmental concrete blocks and natural stone build gravity and small MSE facings. Gabions, wire baskets packed with rock, drain freely and flex with minor ground movement, which makes them forgiving on unstable slopes.

Three details separate a wall that lasts from one that fails early. First, a footing set below the local frost line so freeze-thaw cycles do not heave it. Second, a drainage system: a layer of free-draining gravel against the back face, a perforated pipe at the base leading to daylight, and weep holes through the face. Third, proper compaction of the backfill in thin lifts so it does not settle and drag on the wall. None of these are visible in the finished wall, yet they carry most of the long-term performance.

Backfill choice ties all three together. Clay holds water and swells, multiplying pressure on the wall, so engineers prefer granular backfill that drains and applies a more predictable load. Where clay cannot be avoided, the drainage design has to work harder to keep water out of the active zone behind the wall.

Maintenance is the quiet factor that decides how a wall ages. Weep holes clog with silt, drain pipes lose their outfall to overgrowth, and small cracks open paths for water if they are ignored. A wall that gets a quick seasonal check, with debris cleared from drainage points and any leaning or staining noted early, can last generations. Staining or efflorescence on the face is usually the first sign that water is moving through the wall rather than around it, and that signal is worth acting on before the structure shows movement.

Building codes and structural requirements for retaining walls vary by jurisdiction, and any wall over a few feet or carrying a surcharge should be designed and verified by a licensed engineer for your specific site and soil conditions.

Bottom Line: A retaining wall earns its keep by resisting lateral soil pressure, and the five main types give you a graded set of tools from simple stacked stone up to engineered MSE embankments. Match the type to your height, soil, and available space, then put as much care into drainage and backfill as into the structure itself.
