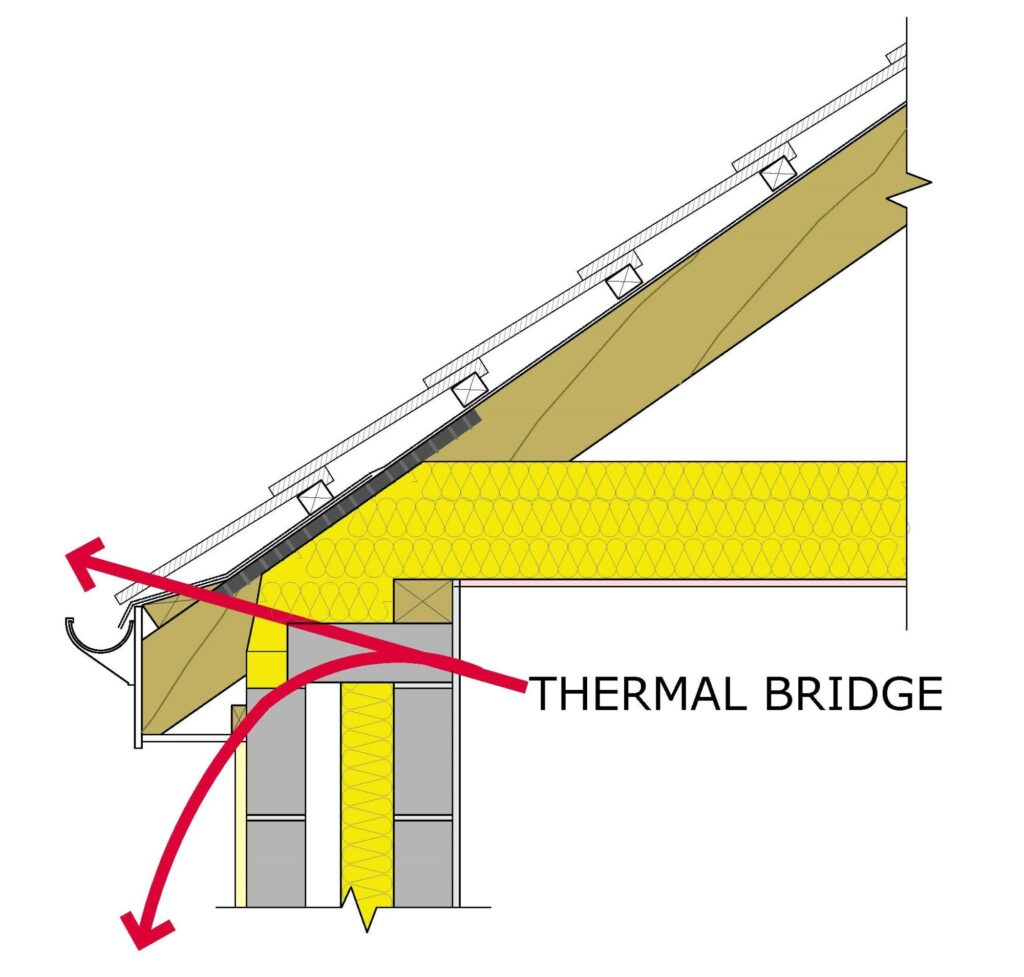

A thermal bridge is a localized weak point in a building envelope where heat flows faster than through the surrounding construction. Steel beams, concrete balcony slabs, and wall studs are common examples. Thermal bridges raise heating and cooling bills, lower interior surface temperatures, and can trigger condensation and mold growth inside otherwise well insulated walls.
Point an infrared camera at almost any building on a cold morning and the thermal bridges reveal themselves as bright stripes and dots: glowing slab edges, a grid of warm lines tracing the studs behind the drywall, hot spots at every cladding bracket. Heat always takes the easiest route out, and a thermal bridge is exactly that, an easy route. Understanding where these paths form, and how to interrupt them, is one of the most useful detailing skills an architect can build.
Why Do Thermal Bridges Matter?
Thermal bridges matter for three reasons: energy, moisture, and comfort. Each bridge is a leak in the insulation layer, so the wall or roof performs worse than its rated R-value suggests. The International Passive House Association notes that the interior surface near a bridge cools down because heat drains away faster at that spot.
🎓 Expert Insight
"A thermal bridge is a localised area of the building envelope where the heat flow is different (usually increased) in comparison with adjacent areas." International Passive House Association, iPHA Blog (2020)
The definition sounds technical, but the practical takeaway is simple: any interruption in the insulation layer becomes a shortcut for heat, and the surrounding assembly cannot compensate for it.
The moisture problem is often more serious than the energy penalty. According to the iPHA Blog (2020), mold growth becomes likely once an interior surface drops below roughly 12.6 degrees Celsius in a typical heated room. Cold spots created by thermal bridging are the classic locations for black staining in the corners of bedrooms, behind wardrobes, and around window reveals. Occupants blame the paint or the cleaning routine, but the real cause sits inside the wall assembly.
Comfort suffers too. A cold slab edge or an uninsulated column makes the adjacent floor area feel chilly even when the thermostat reads a normal temperature, because your body radiates heat toward the cold surface.
The Main Types of Thermal Bridges
Building physics separates thermal bridges into a few recurring categories. Material bridges occur where a conductive element, such as a steel stud or a concrete column, passes through the insulation. Geometric bridges occur where the shape of the building itself concentrates heat flow, most visibly at external corners, where a small interior surface faces a large exterior one. Most real-world details combine both.
In practice, designers group them by how they appear in the envelope.
Thermal Bridge Types and Typical Fixes
The following table summarizes the four groups you will meet on real projects:
| Type | Where It Occurs | Typical Fix |
|---|---|---|
| Repeating | Studs, rafters, and mortar joints at regular spacing | Continuous exterior insulation over the framing |
| Linear | Balcony slabs, lintels, parapets, slab edges | Structural thermal breaks, insulated edge details |
| Point | Cladding brackets, fasteners, penetrating beams | Fewer brackets, stainless steel or composite fixings |
| Geometric | External corners, wall to roof junctions | Compact building form, generous insulation overlap |
Where Thermal Bridges Show Up in Real Buildings
The cantilevered concrete balcony is the textbook offender. When the balcony slab is a direct extension of the interior floor slab, it works like a cooling fin on a motorcycle engine, pulling heat out of the building through hundreds of square feet of exposed concrete. Older apartment blocks across Europe and North America lose noticeable amounts of heat this way, and the cold slab edge inside the living room often shows condensation staining along the floor line.
Framing is the quieter, more widespread case. Every wood or steel stud interrupts the batt insulation between studs, and steel is dramatically worse than timber because of its high conductivity. Window and door perimeters add another set of bridges where frames, lintels, and sills meet the wall. Even the best glazing cannot rescue a poorly detailed frame connection, which is why glass selection and installation detailing belong together; our comparison of Low-E glass and standard glass covers the glazing side of that equation.
Modern facade systems bring their own version of the problem. The aluminum brackets that carry a ventilated facade puncture the insulation layer hundreds of times across an elevation. Each bracket is small, but the combined effect can cut the effective performance of the insulation significantly, a point worth checking whenever you specify a rainscreen cladding system.
📌 Did You Know?
Wood has only about one quarter of the thermal resistance of most insulation materials, according to the U.S. Department of Energy Building Science Education Center. In a conventionally framed wall, the studs, plates, and headers can add up to a quarter of the wall area, which means a large slice of the "insulated" wall is barely insulated at all.
How Do You Prevent Thermal Bridging?
You prevent thermal bridging by keeping the insulation layer continuous and by breaking the conductive path wherever a structural element must cross it. Continuous exterior insulation is the workhorse strategy: a layer of rigid insulation wrapped over the outside of the framing covers the studs, plates, and rim joists in one move. The U.S. Department of Energy recommends a minimum of R-3 rigid insulation in climate zones 1 to 4 and R-5 in zones 5 to 8, and points out that the approach also shifts condensation temperatures outside the framing cavity, which reduces moisture risk.
Where structure must pass through the envelope, purpose-made thermal breaks carry the load while blocking the heat path. Balcony connectors with stainless steel bars and insulation blocks let the slab cantilever without acting as a fin. Composite or stainless brackets do the same job for cladding supports, since stainless steel conducts far less heat than aluminum or carbon steel.
Some construction systems sidestep the problem at the source. Structural insulated panels replace repetitive framing with a continuous foam core, leaving only the panel joints to detail. Monolithic wall materials such as autoclaved aerated concrete spread heat flow evenly because the whole wall is made of one moderately insulating material, so there is no highly conductive element to bridge it.
💡 Pro Tip
Run the pen test on every building section before it leaves your office. Trace the insulation layer around the entire drawing without lifting your pen. Anywhere you are forced to lift it, a balcony, a beam penetration, a slab edge, you have found a thermal bridge that needs a detail, not an excuse.
How Are Thermal Bridges Measured?
Engineers quantify a linear thermal bridge with a psi value, the extra heat loss per meter of junction, expressed in watts per meter kelvin. Point bridges get a chi value, the extra loss per single penetration. The calculation rules live in ISO 10211:2017, the international standard for detailed heat flow and surface temperature modeling at junctions. Certification schemes build on these numbers; the Passive House standard, for example, treats a junction with a psi value at or below 0.01 W/(mK) as effectively thermal bridge free.
On existing buildings, thermography is the fastest diagnostic tool. An infrared survey taken in cold weather maps surface temperatures across the facade and flags the anomalies worth modeling. Designers also check the temperature factor of a detail, a ratio that predicts whether the interior surface will stay warm enough to avoid condensation under design conditions.
Technical specifications and junction calculations should be verified by a licensed professional for your specific project.
The Bigger Picture
Bottom Line: A thermal bridge is any shortcut that lets heat bypass the insulation, and it punishes a building twice, first on the energy bill and then through condensation and mold on cold interior surfaces. Keep the insulation line continuous, break every structural crossing with a proper thermal break, and check the details with psi values rather than assumptions. Envelope performance is won or lost at the junctions, not in the middle of the wall.
