How Was the Pantheon's Dome Built Without Steel?

The Pantheon dome was built without steel by making it heavy where it needed to be and light where it could be. Roman builders cast it in unreinforced concrete, switched to lighter stone aggregate as the shell rose, thinned the shell toward the top, cut 140 coffers into the underside and left a large oculus open at the crown.

Rebuilt under Emperor Hadrian in the 120s AD, the dome spans 43.3 metres, and the official Pantheon website still describes it as the largest unreinforced concrete dome in the world. Without steel to resist tension, the builders had to keep the structure in compression through a series of ordinary decisions. Here is what each one did, and where the published numbers disagree.

When Was the Pantheon Dome Built?

The building you see today is the second Pantheon on the site. According to the official Pantheon website's history page, Marcus Agrippa built the first temple between 27 and 25 BC, and the present structure was rebuilt between 118 and 125 AD under Hadrian. The porch inscription still credits Agrippa.

Brick stamps settled the question. Roman brickyards pressed marks into their bricks that can be dated, and as a Macquarie University ancient history overview explains, those stamps showed the building belonged to Hadrian's reign rather than to Trajan's, as had once been assumed. Some sources give a dedication date a little later; MIT's 2023 report on Roman concrete, for example, describes the dome as dedicated in 128 CE.

On 13 May 609 it was consecrated as the church of Santa Maria ad Martyres, and continuous use kept it maintained. The dome has now stood, cracked and loaded, for about 1,900 years.

What Is Roman Concrete and Why Did It Work Without Rebar?

Roman concrete, or opus caementicium, was a mix of lime, volcanic ash and fist-sized chunks of stone or broken brick. The ash came largely from around Pozzuoli on the Bay of Naples, which is why this family of materials is still called pozzolanic. When lime and pozzolana react with water, they form a binder that sets hard, even in damp conditions.

In a 2023 Science Advances study, an MIT team led by Admir Masic found that the small white lumps in Roman concrete, called lime clasts, were not mixing errors. As MIT News reported, the builders likely used quicklime in a "hot mixing" process. When water enters a crack, it dissolves calcium from the clasts, which recrystallizes as calcium carbonate and seals the gap; in the team's test samples, cracks closed within two weeks.

None of this makes Roman concrete strong in tension. Like any unreinforced concrete, it is good at being squeezed and poor at being pulled, so the whole dome had to be kept in compression. For the modern contrast, see our explainer on how reinforced concrete works, which shows what steel bars add.

How Does Graded Aggregate Make the Dome Lighter Toward the Top?

The single most important trick in the Pantheon dome is graded aggregate: the concrete is not the same from bottom to top.

The official Pantheon site's page on the dome describes heavier aggregates such as travertine at the base and lighter materials such as porous volcanic scoria and tufa toward the top. The Macquarie University overview gives the sequence as brick fragments, then tufa, then lighter tufa, and finally pumice mixed with volcanic slag.

Every tonne near the crown has to travel down through the shell, generating outward thrust on the way. Light pumice at the top cuts that load. Heavy travertine at the bottom adds mass where the dome meets its wall, which helps keep the line of thrust inside the masonry.

Aggregate Zones of the Pantheon Dome

This table combines the official site, Macquarie and Wikipedia descriptions. Zone boundaries are not consistently published, so read it as a sequence, not a measured section.

Zone	Main aggregate	Structural job
Foundations and lower drum	Travertine, the heaviest stone used	Add mass where thrust meets the wall
Lower dome	Brick or terracotta fragments with tufa	Transition from dense to medium weight
Middle dome	Lighter tufa	Cut weight as curvature flattens
Upper dome and crown	Pumice and volcanic scoria	Minimise load and outward thrust

Why Does the Shell Get Thinner Toward the Oculus?

The builders also changed the thickness, keeping the most material where forces are greatest. The figures depend on where the measurement is taken. The official site's dome page gives roughly 5.9 metres at the base and 1.5 metres at the top. Its history page rounds this to about six metres at the base and two metres near the oculus. The Wikipedia structural summary gives 6.4 metres at the base and 1.2 metres around the oculus.

The wall below is just as important. The cylindrical drum, or rotunda, is about six metres thick according to both the official site and Mark Cartwright's 2018 entry in the World History Encyclopedia, and it acts as the abutment that takes the dome's outward push.

What Do the Step Rings on the Outside Do?

From the street, the Pantheon dome looks surprisingly flat, because its lower part is wrapped in a series of stepped rings on the outside. Inside, it reads as a full hemisphere.

The step rings add weight to the haunches, the zone where a dome is most likely to spread outward. Their exact role has been debated for decades. Mark and Hutchinson's study "On the Structure of the Roman Pantheon," published in The Art Bulletin in 1986, modelled the stresses in the dome, and later analyses have reached different conclusions about how much the steps actually change them. A 2018 paper by Masi, Stefanou and Vannucci in Engineering Failure Analysis went back to the origin of the meridional cracks that run up the lower dome.

Why would a cracked dome be stable? Once it cracks along its meridians, it behaves like a ring of wedge-shaped arches leaning against each other around the oculus. Arches stay standing as long as their thrust line stays inside the material, and extra weight on the haunches, from the step rings and the heavy lower aggregate, helps keep it there.

How Do the Coffers Reduce the Dome's Weight?

The coffers are the sunken square panels that cover the inside of the dome. There are five rings of 28, and each ring is smaller than the one below as the dome curves toward the oculus.

Taking material out of the underside of a shell reduces its weight without cutting away much of its useful depth, because the ribs between the coffers remain. It is the same logic behind a modern waffle slab, where a grid of voids lightens a concrete floor while ribs keep it stiff. The Macquarie overview notes that the coffers helped lighten the dome and reduce sideways thrust.

Like any cast concrete, the coffers needed a mould carried on the temporary centering that supported the dome while it set. Our article on formwork in concrete construction covers the modern version of that problem.

Why Is There a Hole in the Top of the Pantheon?

The oculus is the round opening at the crown, about 8 to 9 metres across depending on the source, and it is the only window in the dome. Structurally it removes concrete from exactly the point where weight is least useful, at the top of the shell. Instead of a heavy cap pushing down and out, the dome ends in a ring of wedge-shaped voussoirs around the opening, which works as a compression ring that the shell leans against from every side.

A disc of sunlight moves across the coffers through the day, which is why the building often appears in discussions of daylighting in architecture. Rain falls straight in, and the official site notes that 22 holes in the floor drain the water away.

How Did All These Parts Work Together?

No single feature explains why the Pantheon dome has lasted:

• The six-metre drum takes the outward push at the base.
• Heavy travertine and brick low down, plus the step rings, load the haunches and keep the thrust inside the masonry.
• The thinning shell and light pumice near the crown cut the load that causes thrust in the first place.
• Coffers and the oculus remove weight where it does the least good.

For students, the Pantheon is a load path you can draw: sketch a section, mark heavy and light material, and trace the thrust from crown to ground. For presentation, see our guide to section cut symbols and drawing annotation, and the concrete and stone materials in our textures collection are useful when you model the coffered interior for a render.

The Bigger Picture

The Pantheon is often read as proof of a lost Roman secret. The better reading is the opposite: with no steel, its builders made shape, weight and material do the work reinforcement does today. The dome is cracked and stands anyway, because it was designed for compression from the start, a lesson about working with a material's limits that still applies.

A section is the clearest way to present a dome like this; our Create Architectural Sections eBook shows a quick way to render one in Photoshop.

Frequently Asked Questions

Is the Pantheon dome still the largest unreinforced concrete dome?

Yes. The official Pantheon website describes it as the largest unreinforced concrete dome in the world, with a diameter of 43.3 metres.

When was the Pantheon dome built?

The official Pantheon website dates Hadrian's rebuilding to between 118 and 125 AD, a range supported by dated brick stamps. MIT's 2023 report gives 128 CE as the dedication date.

Does rain fall through the oculus?

Yes. Rain enters through the open oculus and drains away through 22 holes in the floor, according to the official Pantheon website.

Why doesn't the Pantheon dome collapse even though it is cracked?

Once the lower dome cracked along its meridians, it began to act like a ring of arches leaning on each other. Extra weight from the step rings and heavy lower aggregate keeps the thrust inside the masonry, so the cracked dome stays stable.

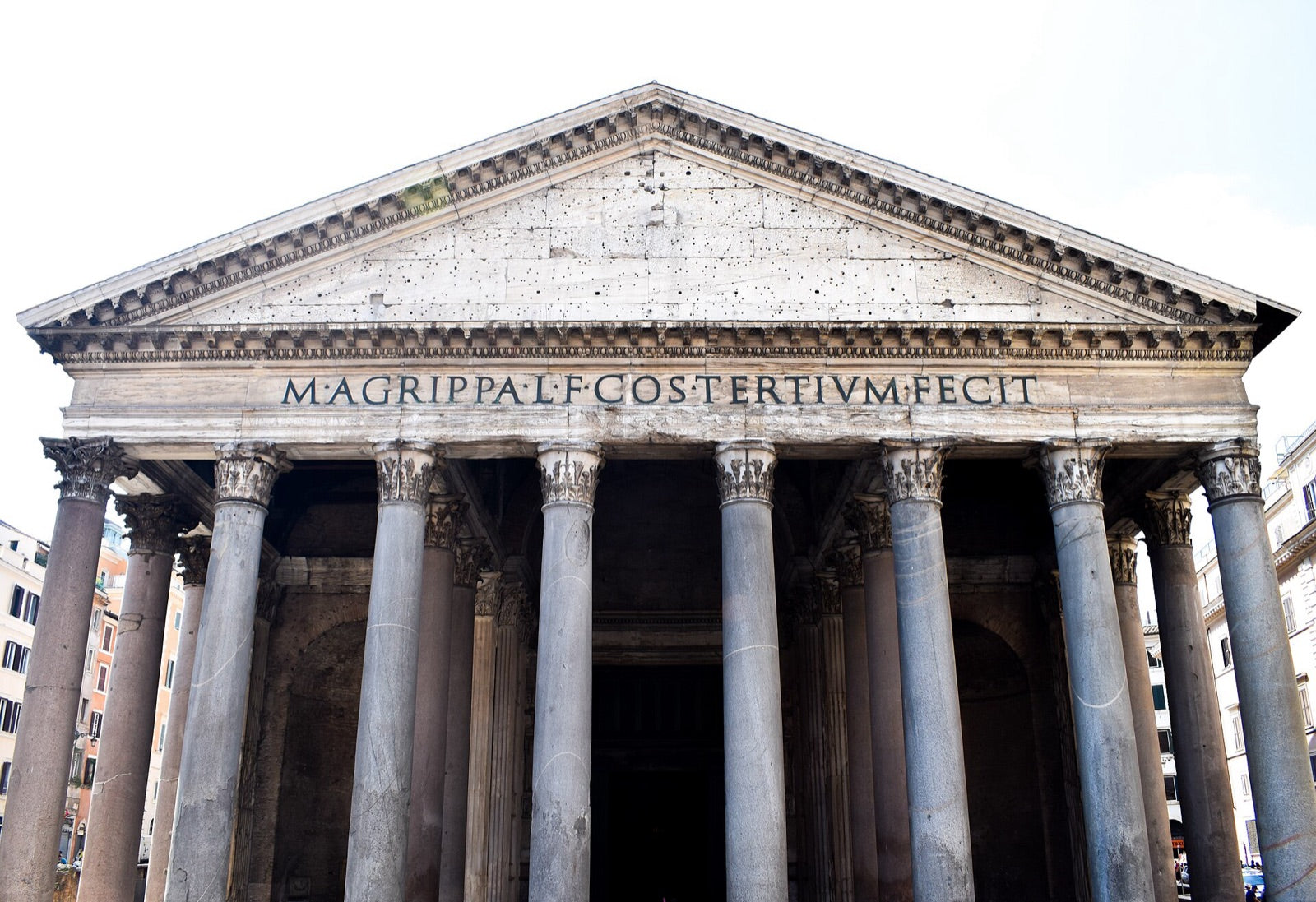

Cover photo: Julian Lupyan, CC0, via Wikimedia Commons.
